Rated power 175kW@1800 rpm
Dimensions (without ripper) 5390×3735×3350 mm
Max. traction force 202 kN

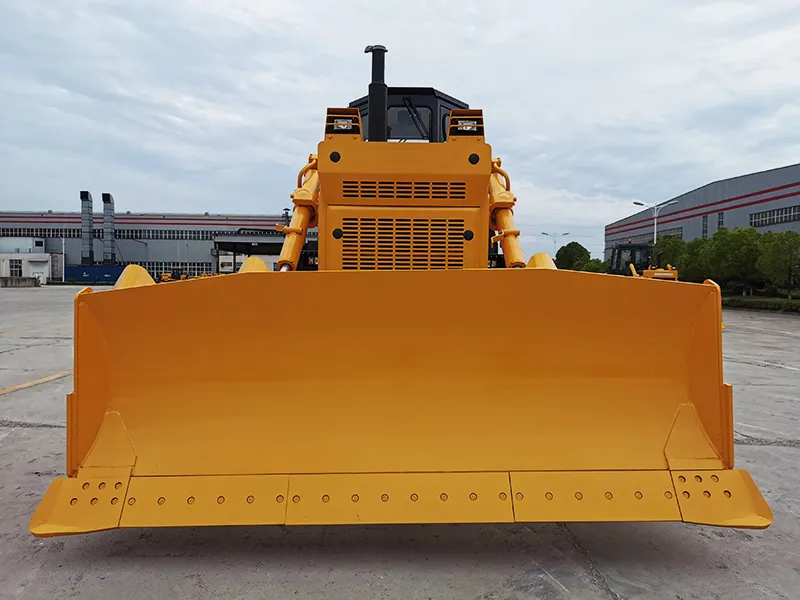

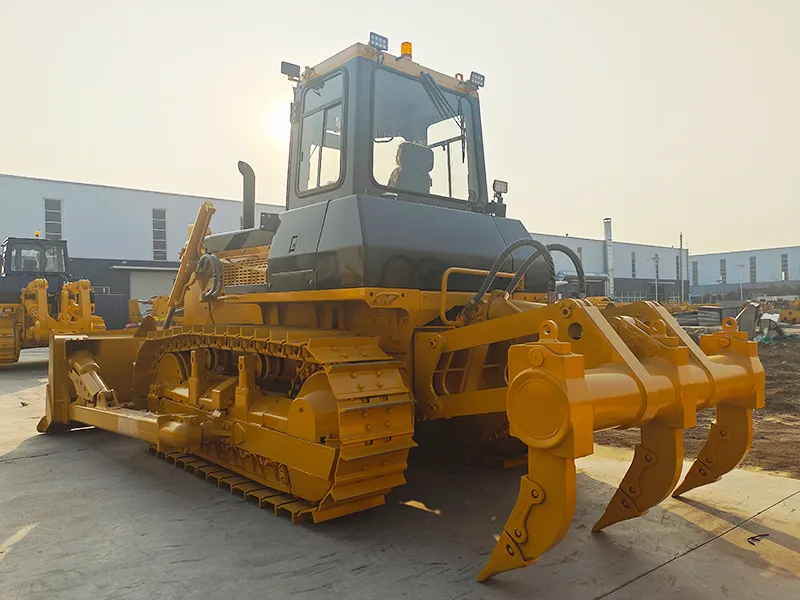

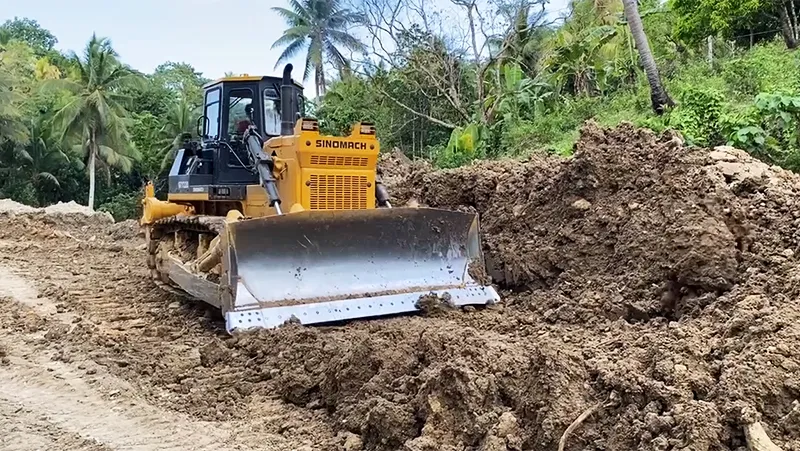

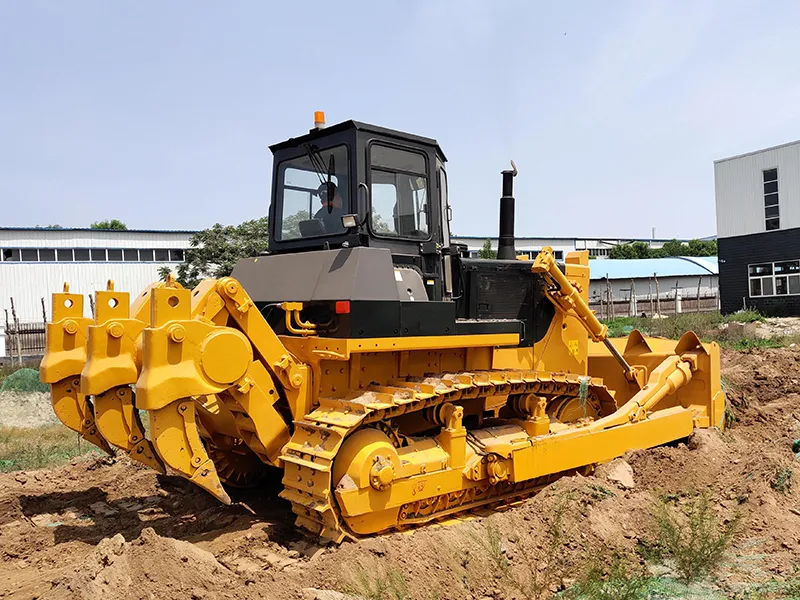

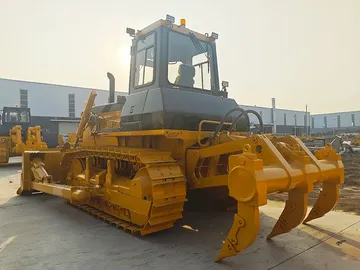

Equipped with a standard straight-tilt blade that delivers strong cutting performance. It can be paired with either a single-shank or three-shank ripper, both designed with adjustable penetration angles. This setup makes it suitable for loosening dense materials like compacted clay, frozen soil, gravel layers, or salt crusts.

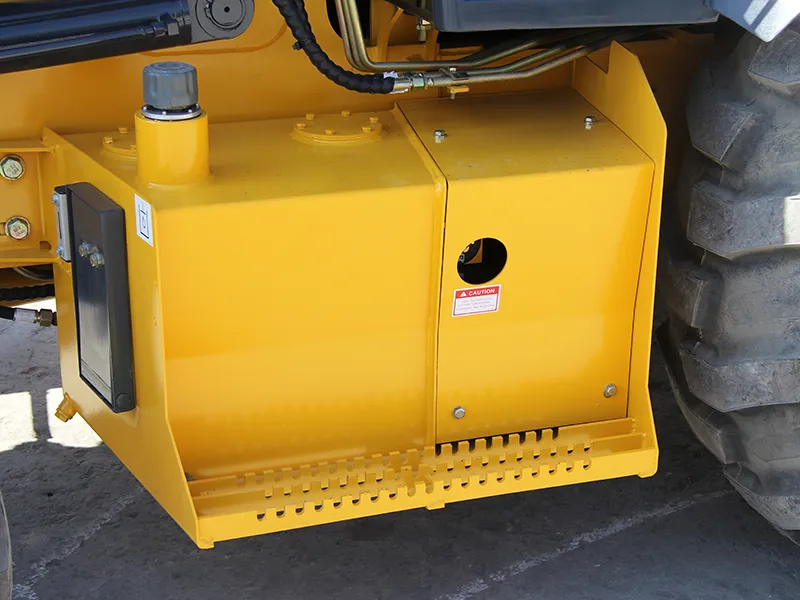

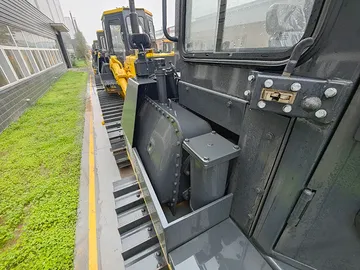

The hydraulic tank features an integrated control valve setup that keeps the internal structure compact and clean during assembly. With cleanliness levels above NAS9 standards, it helps reduce the risk of system failure and ensures more reliable performance over time.

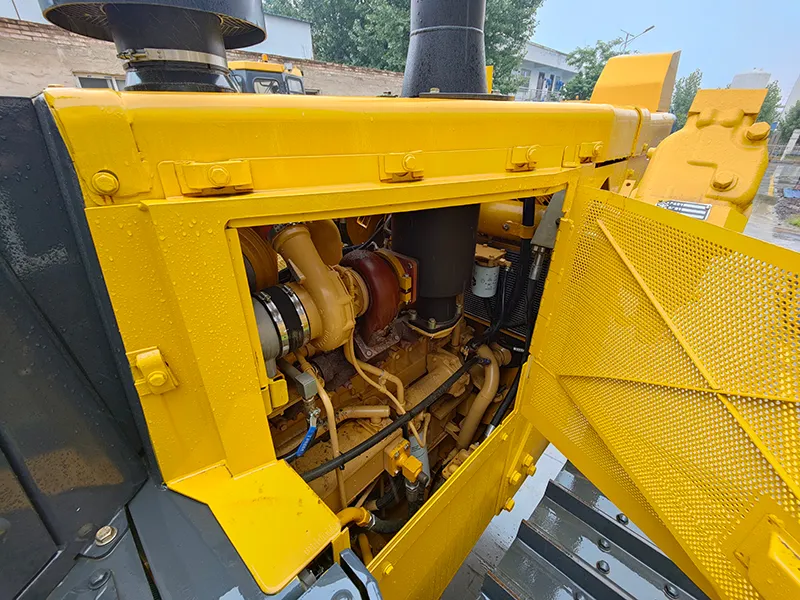

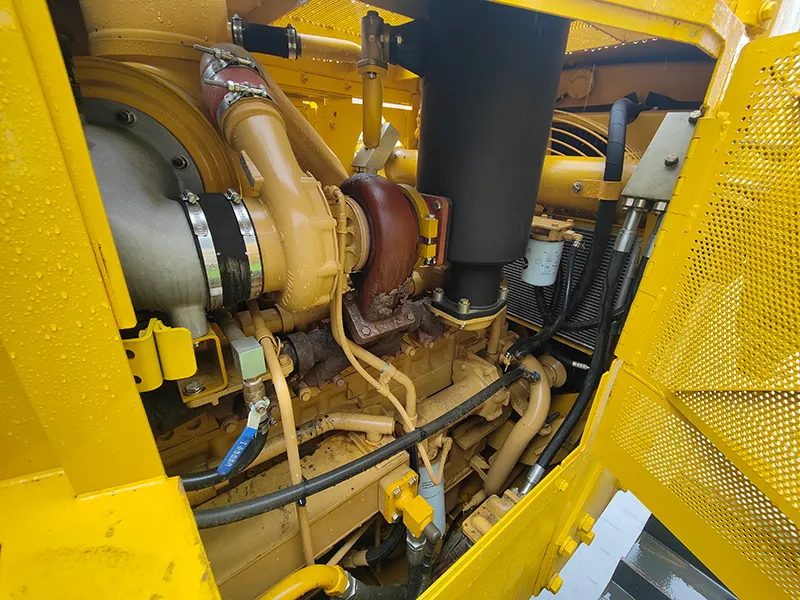

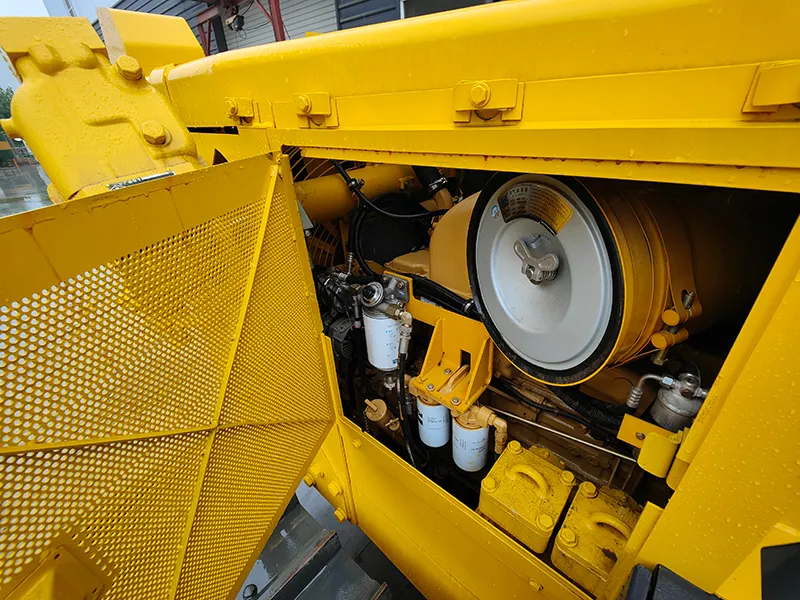

An elongated-slot grille with a semi-enclosed layout helps protect the engine while improving airflow. This results in better cooling and significantly reduced noise, even when operating in harsh environments.
The electrical wiring system meets TS16949 quality standards, offering strong support for stable and reliable electrical operations throughout the entire machine.
Its cutting teeth are made from high-quality alloy steel and processed using advanced forging and heat-treatment techniques. This ensures longer wear life and better durability compared to many common alternatives on the market.
Fitted with a semi-rigid suspension system that increases the ground contact area of the tracks, which improves traction. The dozer can reach up to 203 kN of drawbar pull, making it well-suited for tough, uneven work sites.
- Model YD220
- Type Standard Hydraulic Crawler Type
- Engine model Cummins
- Displacement 14.01L
- Rated power 175kW@1800rpm
- Max. torque 1030N.m@1250rpm
- Operating weight 23.5ton
- Dimensions (without ripper) 5390×3735×3350mm
- Grounding length 2730mm
- Ground pressure 0.077MPa
- Track gauge 2000mm
- Dozing capacity 6.4m³
- Blade width 3735mm
- Blade height 1310mm
- Max. drop below ground 540mm
- Track shoe width 560mm
- Track pitch 216mm
- Number of track link 38
- Number of carrier roller 4
- Number of track roller 12
- Max. working pressure 14MPa
- Discharge 262L/min
- Max. traction force 202kN
- Forward Speed (F1) 0-3.6km/h
- Forward Speed (F2) 0-6.5km/h
- Forward Speed (F3) 0-11.2km/h
- Rear Speed (R1) 0-4.3km/h
- Rear Speed (R2) 0-7.7km/h
- Rear Speed (R3) 0-13.2km/h
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
What types of jobs are best suited for small and medium-to-large bulldozers?
Medium to large bulldozers (160–410 hp) are built for heavier-duty tasks such as mining, major earthworks, and infrastructure development. With stronger traction and modular design, they’re capable of handling tough materials like frozen soil or rock and can adapt to different tasks with interchangeable components.
