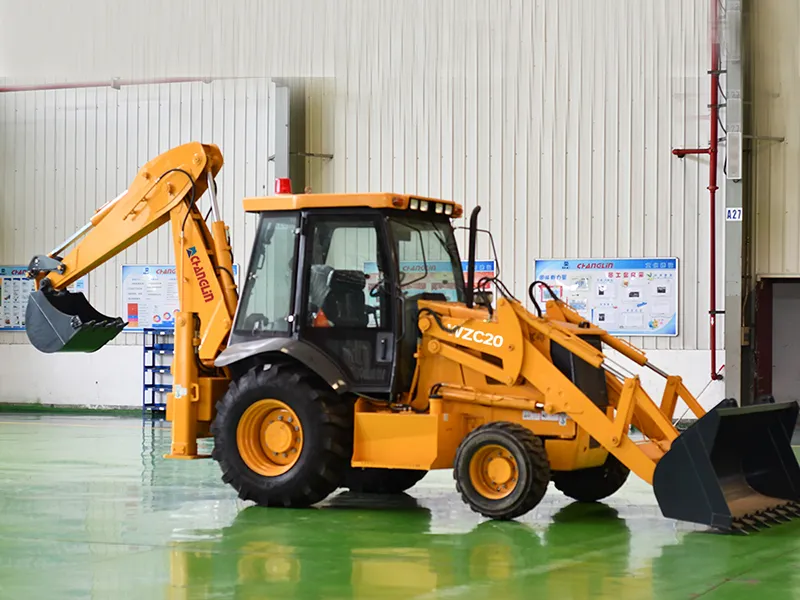

WZC20 Backhoe Loader

WZC20 Backhoe Loader
  • WZC20 Backhoe Loader
  • WZC20 Backhoe Loader
  • WZC20 Backhoe Loader
  • WZC20 Backhoe Loader
  • WZC20 Backhoe Loader

    • WZC20 Backhoe Loader

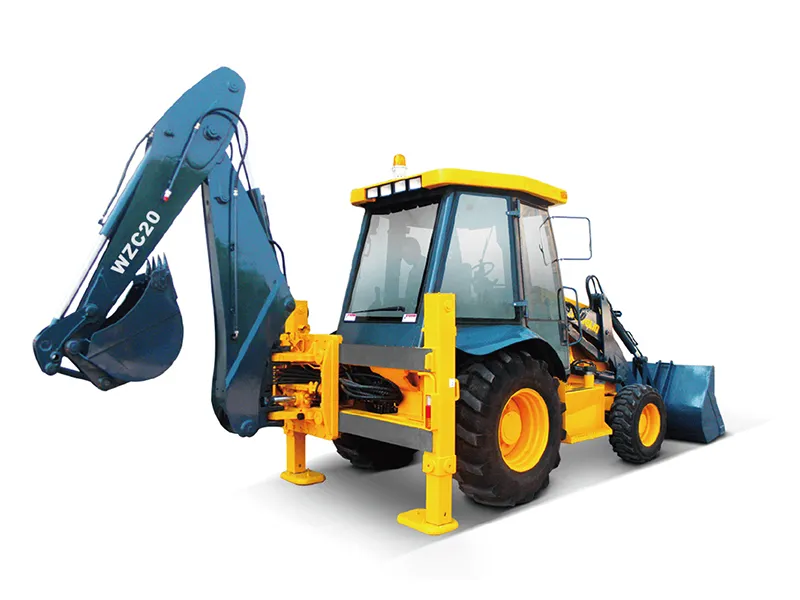

    Designed with an H-shaped stabilizer frame, this backhoe loader features two parallel sets of support legs at the front and rear, connected by a transverse crossbar. This configuration enhances structural rigidity and overall stability, especially on flat or moderately uneven ground. The compact layout of the stabilizers minimizes the machine’s working footprint, making it ideal for urban road maintenance where space is limited and traffic disruption must be minimized. Its rigid frame ensures firm support even on hardened pavement surfaces, delivering reliable performance in municipal operations.

    • Length (with bucket on ground)Length (with bucket on ground) 5835 mm
    • Operating weightOperating weight 8000 kg
    • Rated bucket capacityRated bucket capacity 1.0 m³
    Request a Quote
    Product Brochure
    WZC20 Backhoe Loader
    YD320
    WZC20 Backhoe Loader
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    WZC20 Backhoe Loader

    Equipped with a 4-cylinder turbocharged Weichai engine that delivers high efficiency, ample power reserves, and improved fuel economy while meeting environmental standards.

    WZC20 Backhoe Loader

    The transmission system includes a roller-specific gearbox with a synchronizer, delivering high torque output and smoother shifting. The travel brake combines air-assisted hydraulic caliper brakes, while the parking brake uses a reliable drum-type mechanical design for enhanced operational safety.

    WZC20 Backhoe Loader

    The rear engine hood opens at a wide angle, making daily maintenance and repair tasks faster and easier to carry out.

    WZC20 Backhoe Loader

    Fitted with hydraulic components from well-known brands, the machine ensures consistent performance and long-term reliability under demanding conditions.

    WZC20 Backhoe Loader

    Comes standard with a fully enclosed cab for operator comfort, with optional heating and air conditioning systems available to suit different working environments.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) 5835mm
    • Overall width (at stabilizer) 2240mm
    • Load bucket width 2313mm
    • Height (to the top of the cab) 2720mm
    • Height (to the top of the digging arm) 3548mm
    • Wheel base 2155.5mm
    • Rear wheel track width 1700mm
    • Front wheel track width 1880mm
    • Min. ground clearance 355mm for 2WD; 275mm for 4WD

    Loading Parameters

    • Rated load 1700kg
    • Operating weight 8000kg
    • Rated bucket capacity 1.0m³
    • Max. dump clearance 2714mm
    • Dump reach 845mm
    • Max. lifting capability 3400kg
    • Min. turning radius Outside of bucket 5280mm for 2WD
      5670mm for 4WD
    • Min. turning radius Center of front wheel 3795mm for 2WD
      4380mm for 4WD
    • Max. load breakout force >60kN

    Digging Parameters

    • Rated digging bucket capacity 0.2m³
    • Arm and Boom Standard Telescopic
    • Max. digging depth 4405mm 4370-5540mm
    • Max. digging radius 5390mm 5420-6525mm
    • Max. dumping height 3510mm 3570-4310mm
    • Central offset 550mm
    • Max. digging force >56.1+10％kN(bucket)
    • Max. drawing force 70kN (4WD)
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

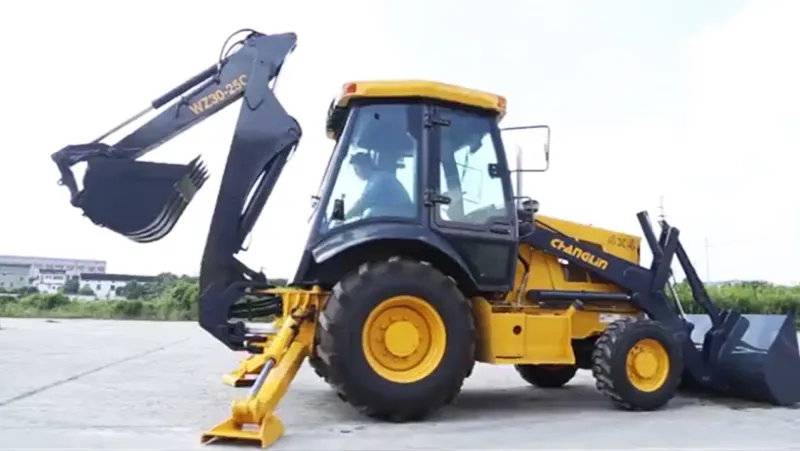

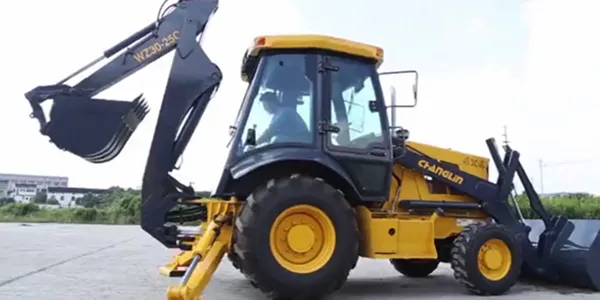

      1. WZ30-25 Backhoe Loader
      2. WZ30-25 Backhoe Loader
        Length (with bucket on ground) 7085 mm
        Rated load 1700 kg
        Rated bucket capacity 1.0 m³
      1. WZC20 Backhoe Loader
      2. WZC20 Backhoe Loader
        Length (with bucket on ground) 5835 mm
        Operating weight 8000 kg
        Rated bucket capacity 1.0 m³

    Dry brakes use exposed disc brakes that are more susceptible to contamination and wear, making them suitable for dry, light-duty applications such as road maintenance. In contrast, wet disc brakes have their components enclosed in oil for cooling and protection, minimizing maintenance and wear. This design is more reliable for harsh working environments and is chosen for export models. While both types serve different purposes, they are not directly interchangeable without structural modifications.

    Hydraulic pilot systems rely on hydraulic pressure to control the machine, offering more precise movements and reduced operator effort. Mechanical pilot systems are simpler and mechanically driven, making them easier to maintain but less responsive. Hydraulic control provides greater efficiency and user comfort, especially in tasks requiring high precision.

    The steering pump converts engine power into hydraulic pressure to drive the steering cylinders and motors. It ensures smooth, responsive control and stable operation during maneuvering, especially under load or on uneven terrain.

    Both the front loader and rear excavator ends can be equipped with quick couplers. The loader arm currently supports quick-change forks and general-purpose buckets, while the backhoe arm can be fitted with a hydraulic quick coupler, which may require customization from the supplier.

    Absolutely, backhoe loaders are multipurpose machines ideal for small-scale tasks such as pond excavation, residential landscaping, trenching for utilities, and general site preparation in confined areas.
