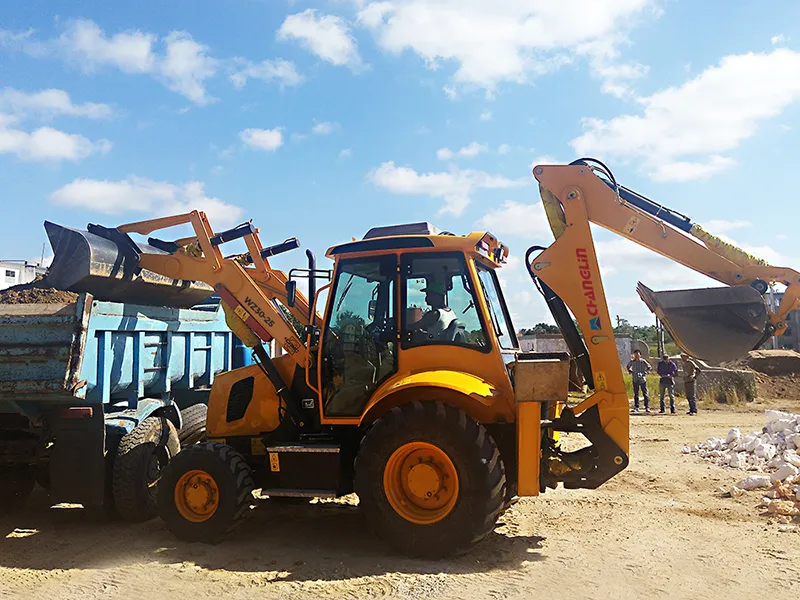

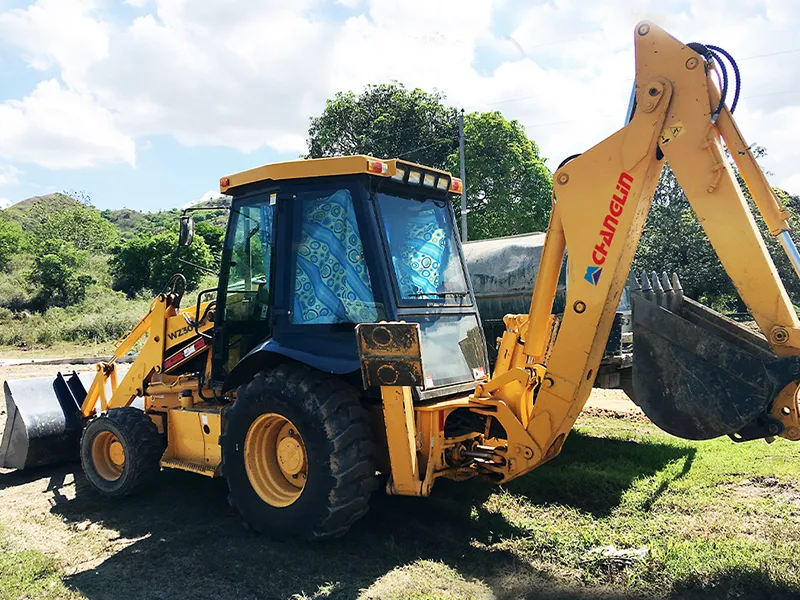

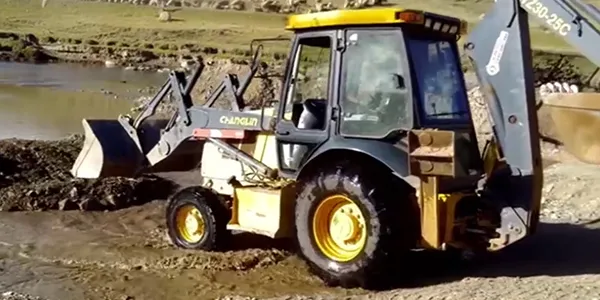

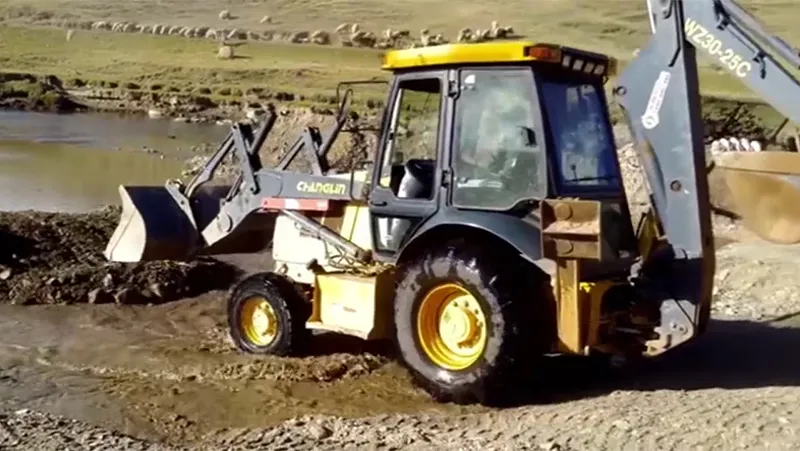

WZ30-25 Backhoe Loader

WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader
  • WZ30-25 Backhoe Loader

    • WZ30-25 Backhoe Loader

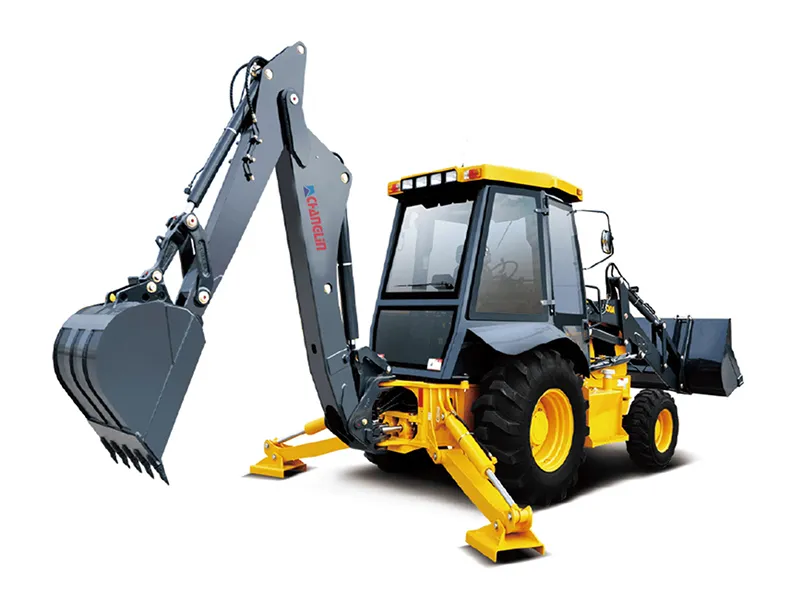

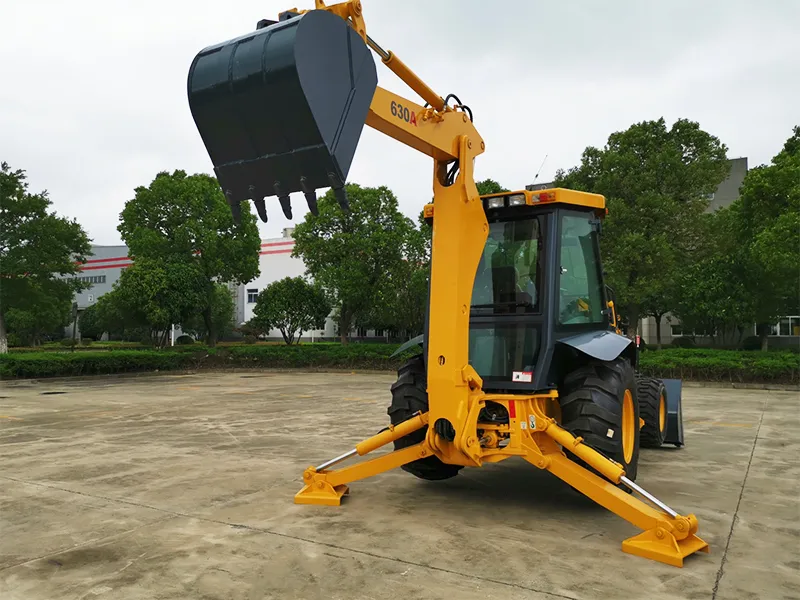

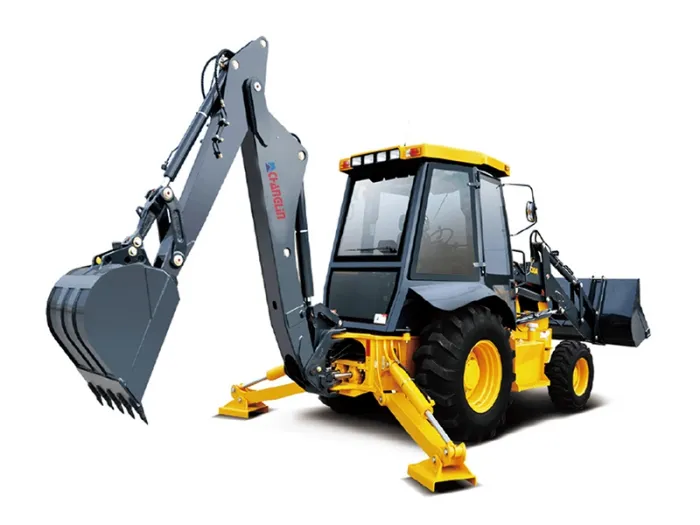

    This backhoe loader features outward-angled stabilizers in a wide “V” formation, offering a broader support base and enhanced stability. Each leg can be adjusted independently in both height and angle, allowing the machine to maintain balance on uneven surfaces such as slopes, mud, or loose terrain. This configuration makes it well-suited for complex site conditions where secure footing is essential for safe operation.

    • Length (with bucket on ground)Length (with bucket on ground) 7085 mm
    • Rated loadRated load 1700 kg
    • Rated bucket capacityRated bucket capacity 1.0 m³
    Request a Quote
    Product Brochure
    WZ30-25 Backhoe Loader
    YD320
    WZ30-25 Backhoe Loader
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features

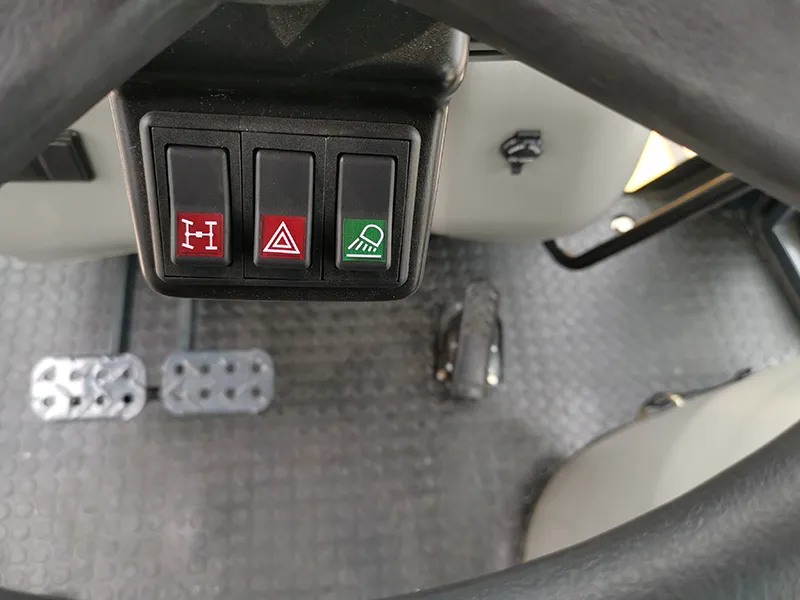

    Hydraulic wet brake system with dual-pedal control Hydraulic wet brake system with dual-pedal control

    Hydraulic wet brake system with dual-pedal control
    The maintenance-free wet brake system supports single-side braking for tight turning and even near-zero-radius steering. This function enables efficient maneuverability in confined environments, similar to pivot-style vehicle rotation.

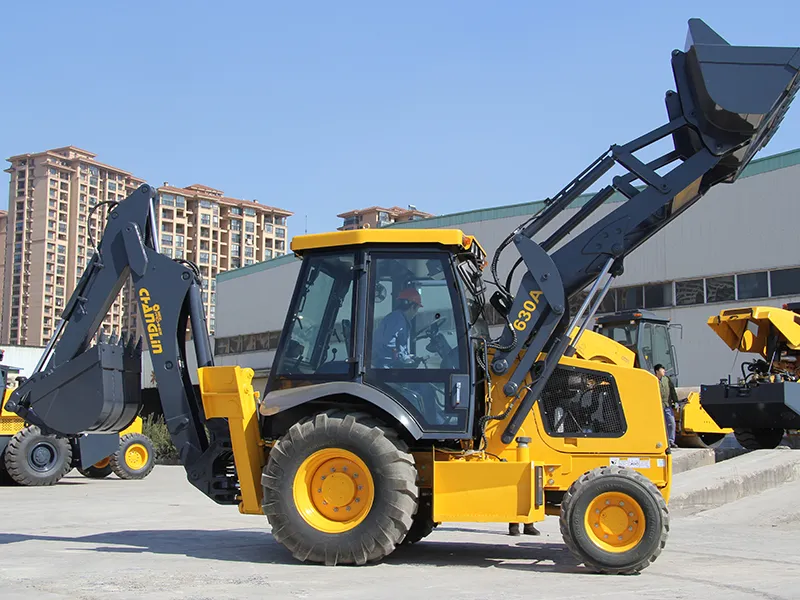

    Optimized loader with positive rotation eight-bar linkage

    Optimized loader with positive rotation eight-bar linkage
    The loader is designed with a high-performance mechanical linkage system that enhances dumping height, breakout force, and bucket stability. Integrated with an auto-leveling system, it ensures fast, stable operation across lifting cycles.

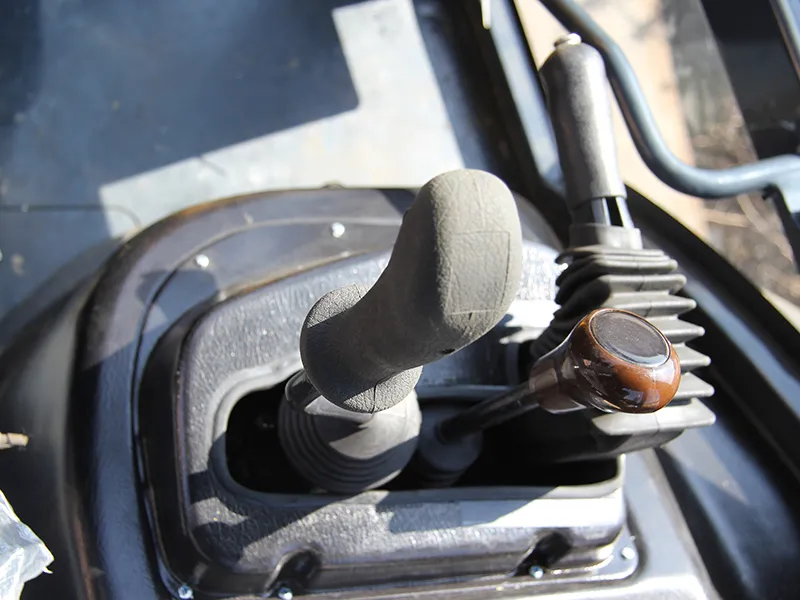

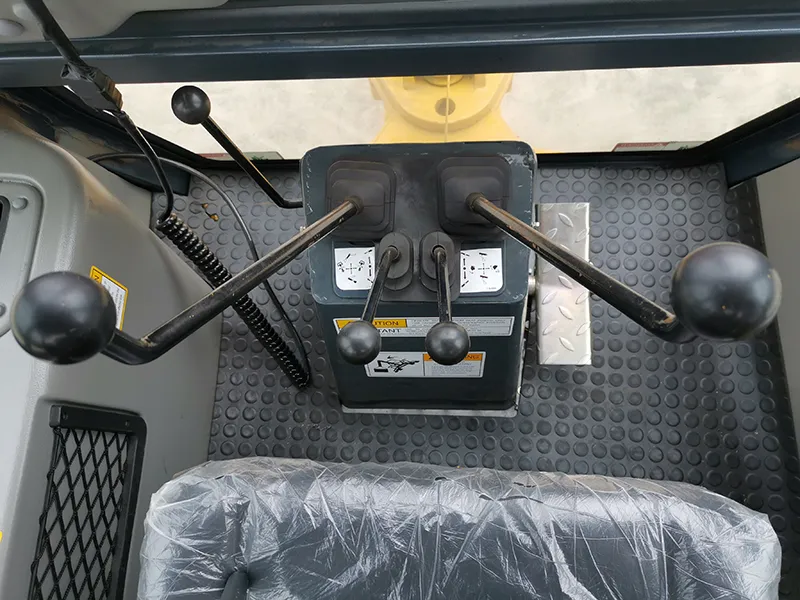

    Fully hydraulic pilot controls for both loading and diggingFully hydraulic pilot controls for both loading and diggingFully hydraulic pilot controls for both loading and digging

    Fully hydraulic pilot controls for both loading and digging
    Precise and responsive, the pilot control system enables easy handling and smooth transitions between loading and excavation tasks.

    Spacious ROPS/FOPS-certified cab with wide visibilitySpacious ROPS/FOPS-certified cab with wide visibility

    Spacious ROPS/FOPS-certified cab with wide visibility
    The full-vision cab meets international rollover and falling object protection standards, offering excellent operator visibility, comfort, and safety during extended use.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) Standard Telescopic arm
    • 7085mm 7272mm
    • Overall width (at stabilizer) 2313mm
    • Load bucket width 2313mm
    • Height (to the top of the cab) 2710mm
    • Height (to the top of the digging arm) Standard Telescopic arm
    • 3424mm 3457mm
    • Wheel base 2155.5mm
    • Rear wheel track width 1700mm
    • Front wheel track width 1880mm
    • Min. ground clearance 355mm for 2WD
      275mm for 4WD

    Loading Parameters

    • Rated load 1700kg
    • Operating weight 7600kg
    • Rated bucket capacity 1.0m³
    • Max. dump clearance 2714mm
    • Dump reach 845mm
    • Max. lifting capability 3400kg
    • Min. turning radius Outside of bucket 5280mm for 2WD
      5670mm for 4WD
    • Min. turning radius Center of front wheel 3795mm for 2WD
      4380mm for 4WD
    • Max. load breakout force >60kN

    Digging Parameters

    • Rated digging bucket capacity 0.3m³
    • Arm and Boom Standard Telescopic
    • Max. digging depth 4405mm 4550-5550mm
    • Max. digging radius 5481mm 5695-6685mm
    • Max. dumping height 3737mm 4008-4950mm
    • Central offset 550mm
    • Max. digging force >50+10％kN (bucket)
    • Max. drawing force 70kN (4WD)
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch
      1. WZC20 Backhoe Loader
      2. WZC20 Backhoe Loader
        Length (with bucket on ground) 5835 mm
        Operating weight 8000 kg
        Rated bucket capacity 1.0 m³
      1. WZ30-25 Backhoe Loader
      2. WZ30-25 Backhoe Loader
        Length (with bucket on ground) 7085 mm
        Rated load 1700 kg
        Rated bucket capacity 1.0 m³

    Hydraulic pilot systems rely on hydraulic pressure to control the machine, offering more precise movements and reduced operator effort. Mechanical pilot systems are simpler and mechanically driven, making them easier to maintain but less responsive. Hydraulic control provides greater efficiency and user comfort, especially in tasks requiring high precision.

    The steering pump converts engine power into hydraulic pressure to drive the steering cylinders and motors. It ensures smooth, responsive control and stable operation during maneuvering, especially under load or on uneven terrain.

    Both the front loader and rear excavator ends can be equipped with quick couplers. The loader arm currently supports quick-change forks and general-purpose buckets, while the backhoe arm can be fitted with a hydraulic quick coupler, which may require customization from the supplier.

    Absolutely, backhoe loaders are multipurpose machines ideal for small-scale tasks such as pond excavation, residential landscaping, trenching for utilities, and general site preparation in confined areas.

    Yes. Four-wheel drive (4WD) backhoe loaders, also known as 4x4 models, provide excellent traction and mobility on uneven or muddy surfaces. They reduce the risk of getting stuck and enhance productivity with strong performance and fuel efficiency across challenging terrain.
