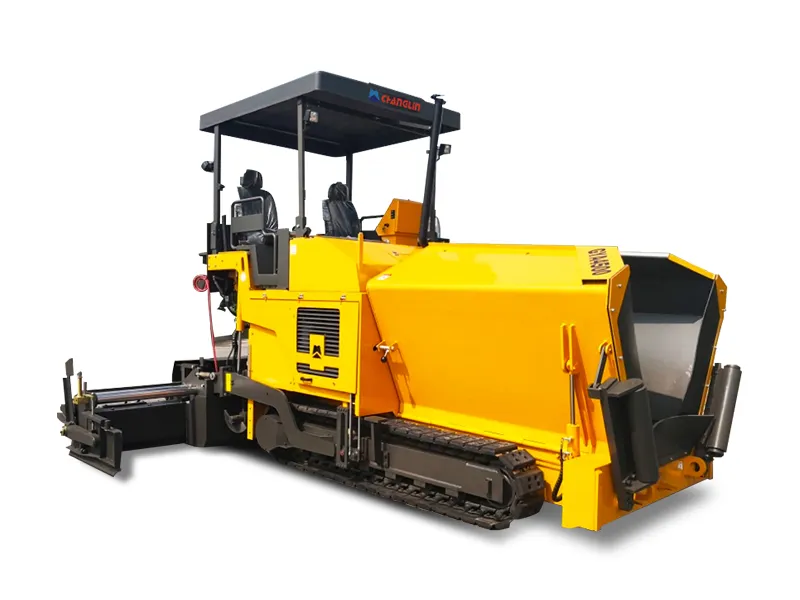

Max. paving width 4.5 m
Theoretical productivity 200 t/h
Rated power 93kW
Reliable engine and adjustable screed

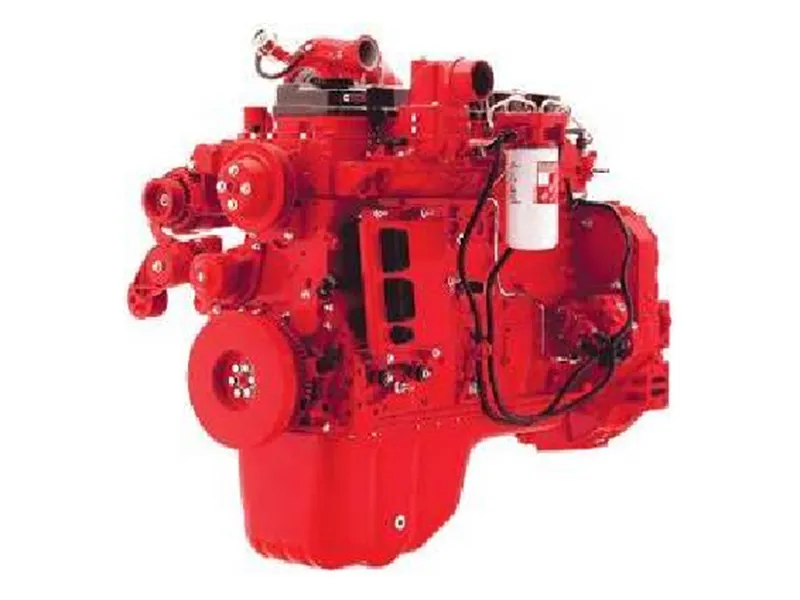

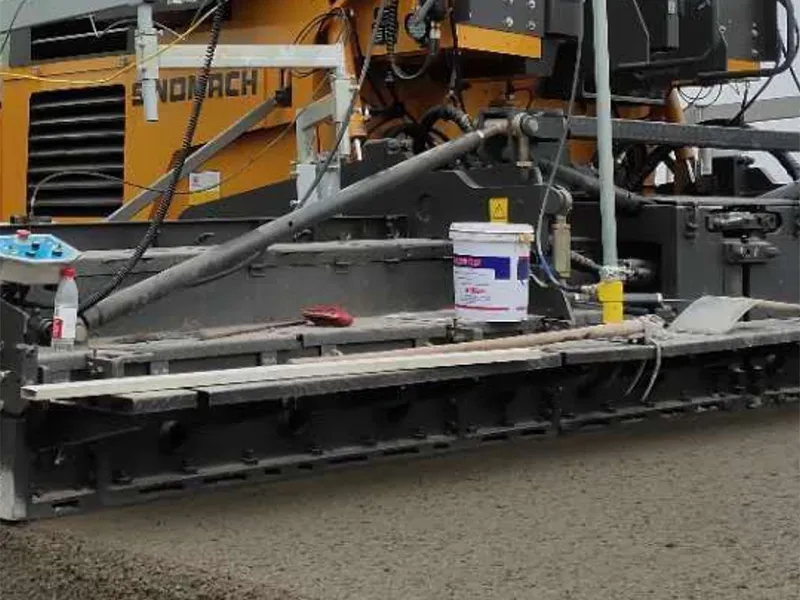

Powered by a Dongfeng Cummins electronic fuel injection engine, it delivers strong performance and reliable cold starts. The full-hydraulic, infinitely adjustable screed allows paving widths between 2 to 4.5 meters for flexible operation.

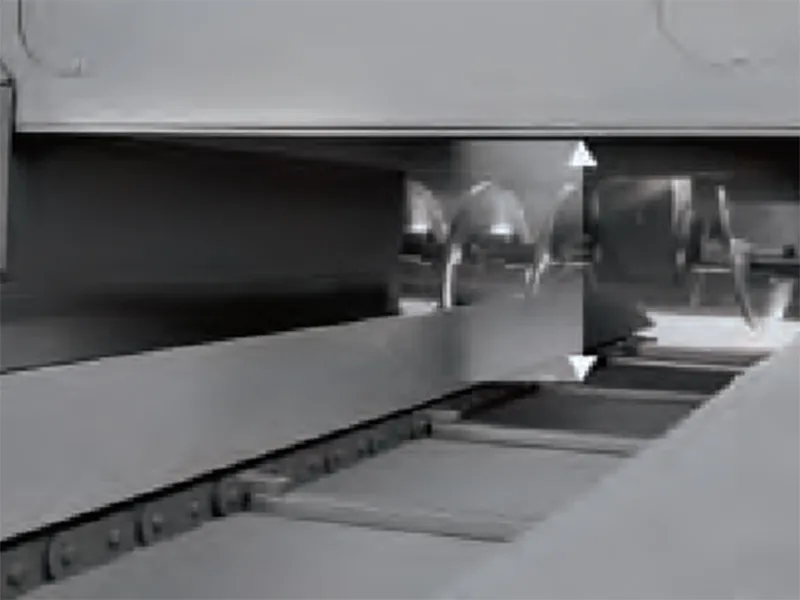

Durable components for extended service life

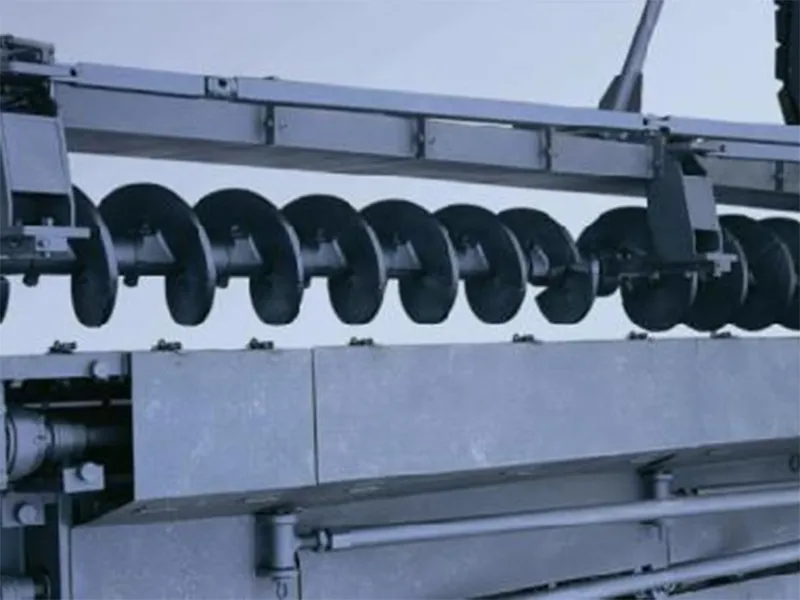

The auger blades and conveyor plates are made of wear-resistant alloy or hardened steel to ensure long-term durability and stable performance under continuous use.

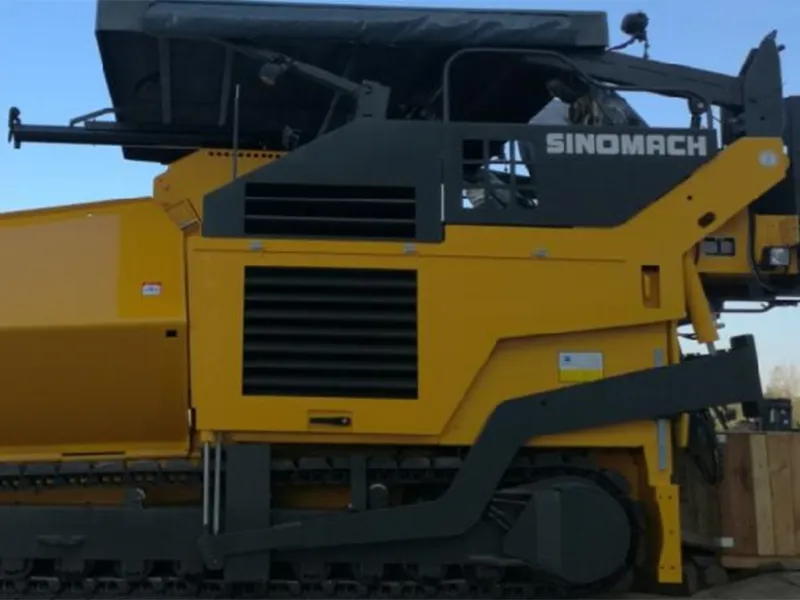

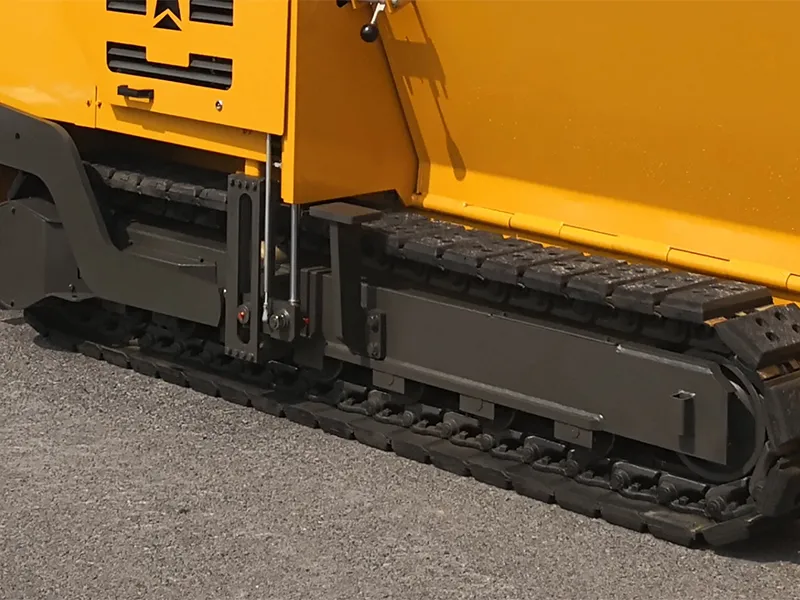

Track system with rubber pads for surface protection
The rubber-padded crawler system provides excellent traction while enhancing the paver’s stability and minimizing surface damage during paving.

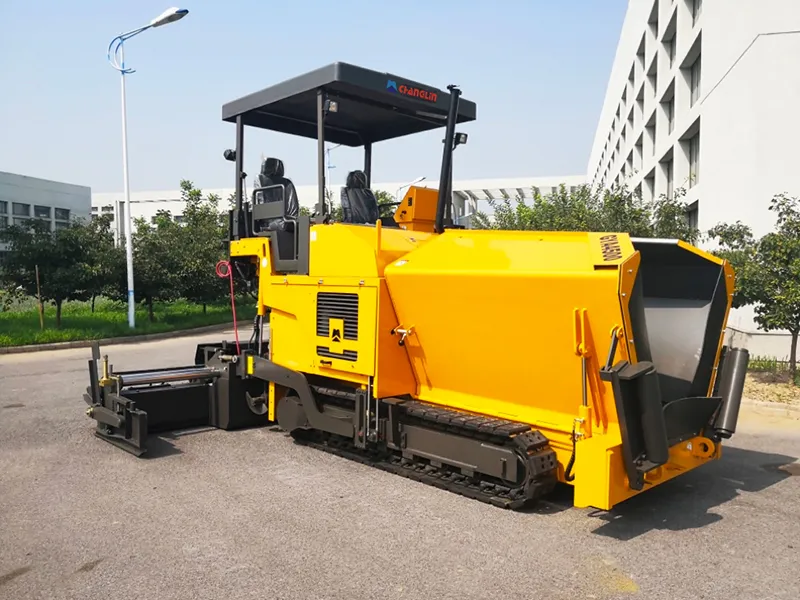

Large-capacity hopper with foldable push rollers
Designed to accommodate large material trucks while still allowing movement through confined spaces, the hopper ensures consistent material flow and adaptability on compact job sites.
General
- Traveling type Crawler
- Basic paving width 2.0m
- Max. paving width 4.5m
- Max. paving thickness 200mm
- Paving speed 0-20m/min
- Travel speed 0-4.5km/h
- Theoretical productivity 200t/h
- Hopper capacity 8t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 2mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -1 to +3%
Engine
- Manufacturer Cummins
- Fuel tank capacity 115L
- Rated power 93kW
- Rated speed 2200rpm
- Electric system 24V
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
How do pavers ensure efficient paving across different materials?
Can pavers support fast start-up and continuous operation?
How is flatness and precision of the paved layer maintained?
Are hydraulic system capacity and hydraulic tank volume the same?
How do I choose the right paver for asphalt road construction?
Selection should be based on application scale and technical needs:
- Highway projects: Choose ultra-large tracked models with mechanical screed extensions.
- Mid-size roads: Use medium tracked or wheeled pavers with hydraulic or mechanical screeds.
- Narrow or maintenance jobs: Opt for compact pavers with hydraulic screeds for flexibility and efficiency.
