Max. paving width 6 m
Max. paving thickness 200 mm
Theoretical productivity 400 t/h

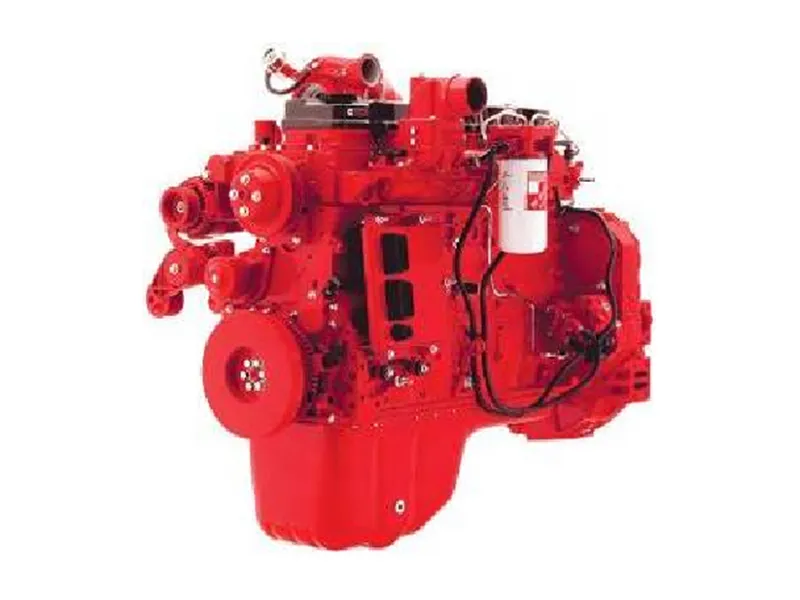

Reliable engine performance
Equipped with a Dongfeng Cummins electronic fuel injection engine, the asphalt paver delivers strong power, dependable cold starts, and stable operation across various conditions.

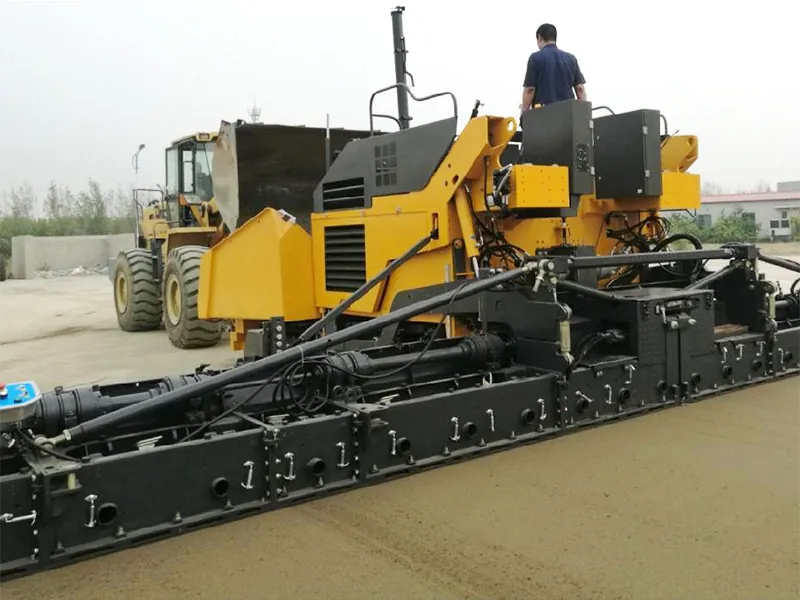

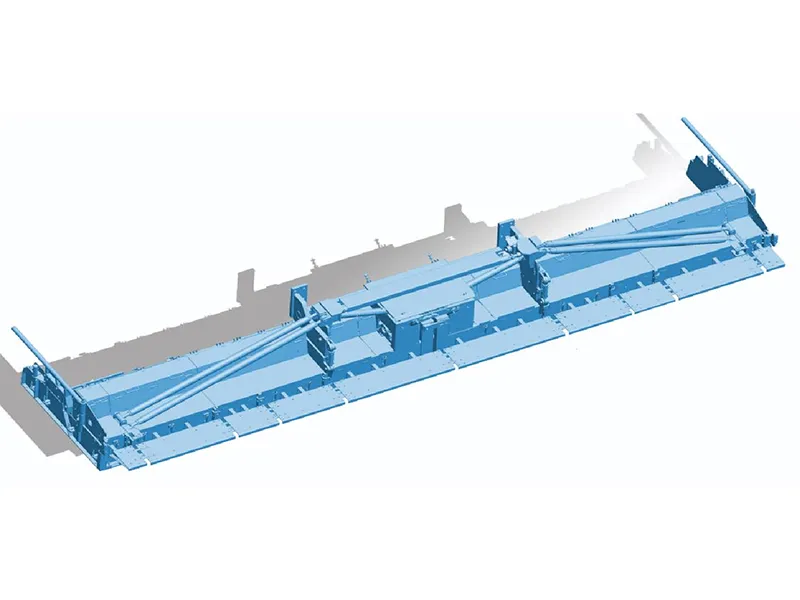

Hydraulic adjustable screed
The full-hydraulic telescopic screed allows seamless paving width adjustments from 2.5 to 6 meters, ensuring flexibility across different job site requirements.
Durable drive and material system
Wheeled drive combined with constant-speed control ensures smooth paving. Key components like auger blades and conveyor plates are made from wear-resistant alloy or hardened steel for extended service life.

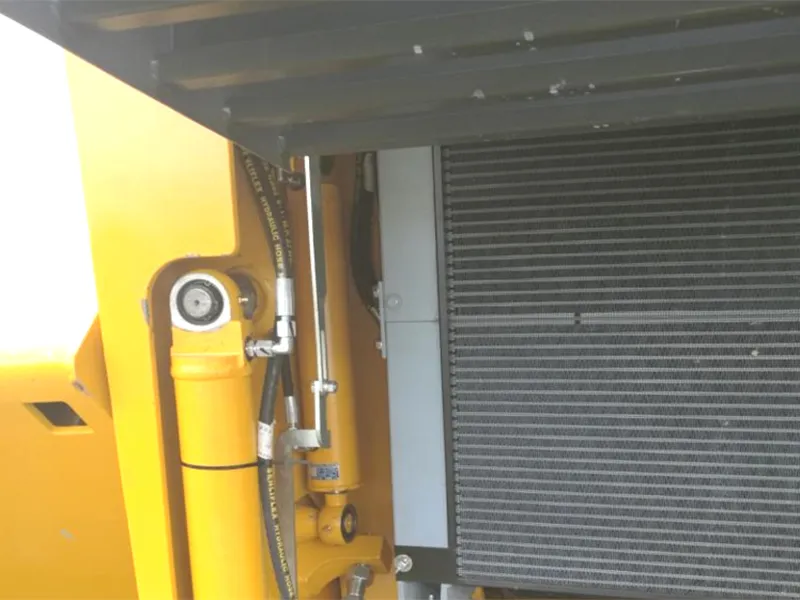

Advanced cooling system
Features a German AKG composite radiator with a large heat dissipation surface and centralized forced air exhaust, enabling continuous operation in ambient temperatures up to 50°C.
Spacious hopper with foldable push rollers
The high-capacity hopper accommodates large material trucks and includes foldable push rollers, balancing efficient feeding with compact maneuverability in narrow spaces.
General
- Traveling type Rear wheel drive
- Basic paving width 2.5m
- Max. paving width 6m
- Max. paving thickness 200mm
- Paving speed 0-15m/min
- Travel speed 0-15km/h
- Theoretical productivity 400t/h
- Hopper capacity 13t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 2mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -1 to +3%
Engine
- Manufacturer Cummins
- Fuel tank capacity 200L
- Rated power 93kW
- Rated speed 2200rpm
- Electric system 24V
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
