Max. paving width 9 m
Max. paving thickness 450 mm
Theoretical productivity 1000 t/h

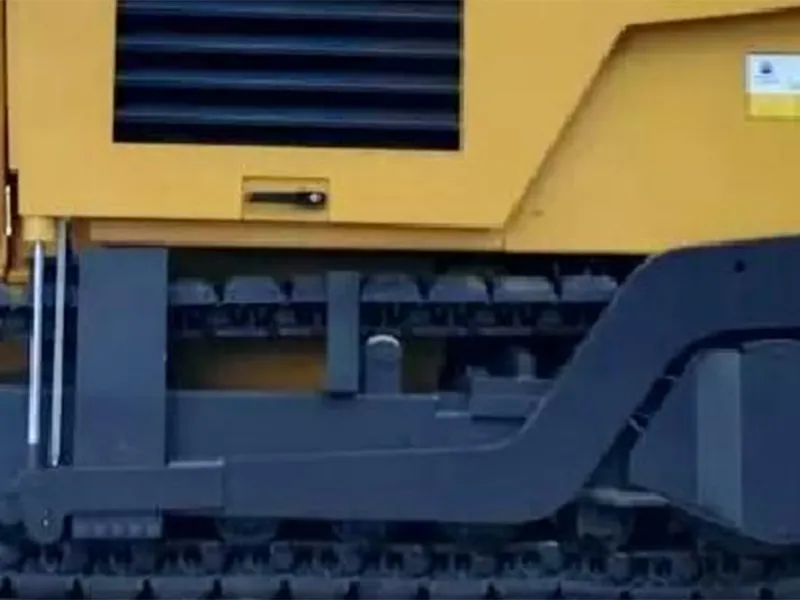

High-performance track system
The paver adopts dual-track drive with independent full-hydraulic control on both sides, offering stepless speed adjustment. It uses high-quality Yong Peide track assemblies known for durability and stability. With a 3,240 mm track contact length and 300 mm track width, it ensures consistent paving results.

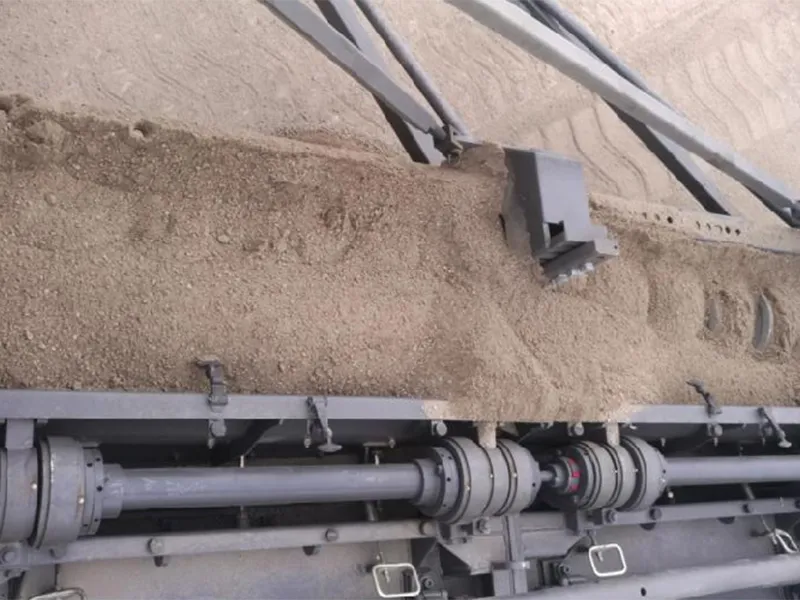

Independent material feed system
Equipped with four independent full-hydraulic systems for feeding and distribution, the paving machine ensures uniform, proportional delivery of materials across the screed.

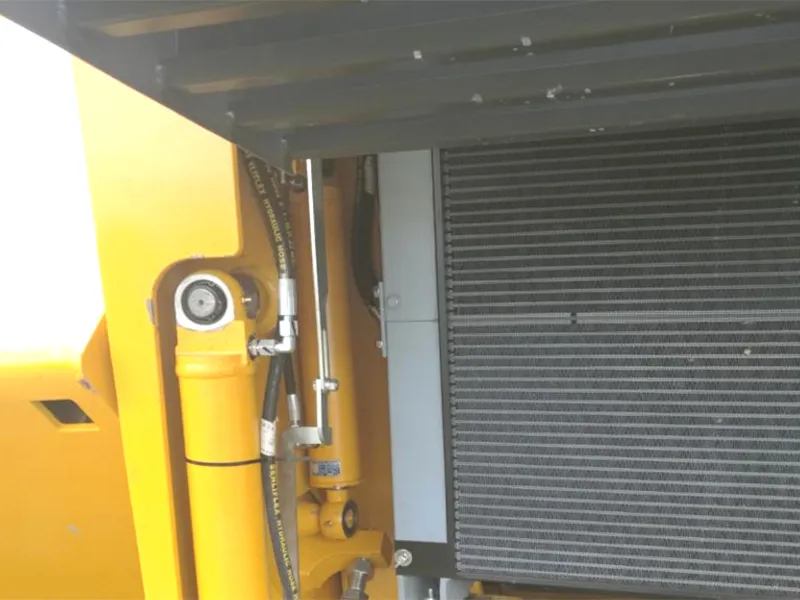

Advanced cooling performance
The German AKG composite radiator features a large heat dissipation surface and forced centralized cooling, supporting continuous operation in ambient temperatures up to 50°C.

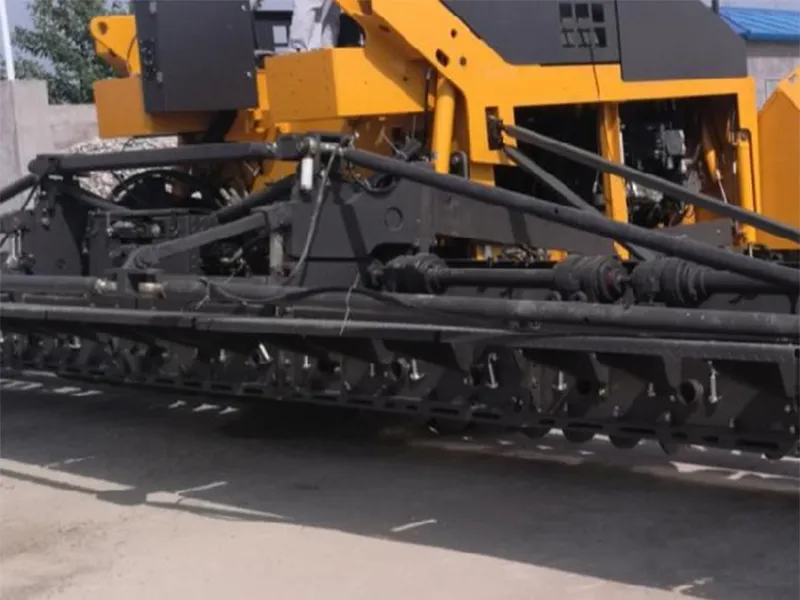

Enhanced screed strength and wear resistance

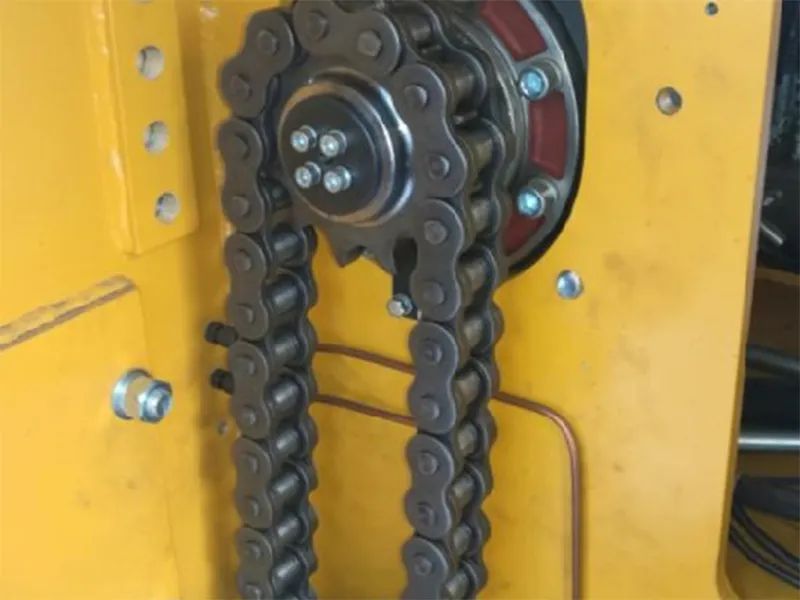

The high-rigidity screed base is made from imported wear-resistant plates, while the auger drive uses a reinforced chain design with 30% increased strength for greater reliability during high-load applications.
General
- Traveling type Crawler
- Basic paving width 2.5m
- Max. paving width 9m
- Max. paving thickness 450mm
- Paving speed 0-20m/min
- Travel speed 0-3.6km/h
- Theoretical productivity 1000t/h
- Hopper capacity 16t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 1.5mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -6%
Engine
- Manufacturer Cummins
- Fuel tank capacity 200L
- Rated power 133kW
- Rated speed 2200rpm
- Electric system 24V
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
How is flatness and precision of the paved layer maintained?
Are hydraulic system capacity and hydraulic tank volume the same?
How do I choose the right paver for asphalt road construction?
Selection should be based on application scale and technical needs:
- Highway projects: Choose ultra-large tracked models with mechanical screed extensions.
- Mid-size roads: Use medium tracked or wheeled pavers with hydraulic or mechanical screeds.
- Narrow or maintenance jobs: Opt for compact pavers with hydraulic screeds for flexibility and efficiency.
