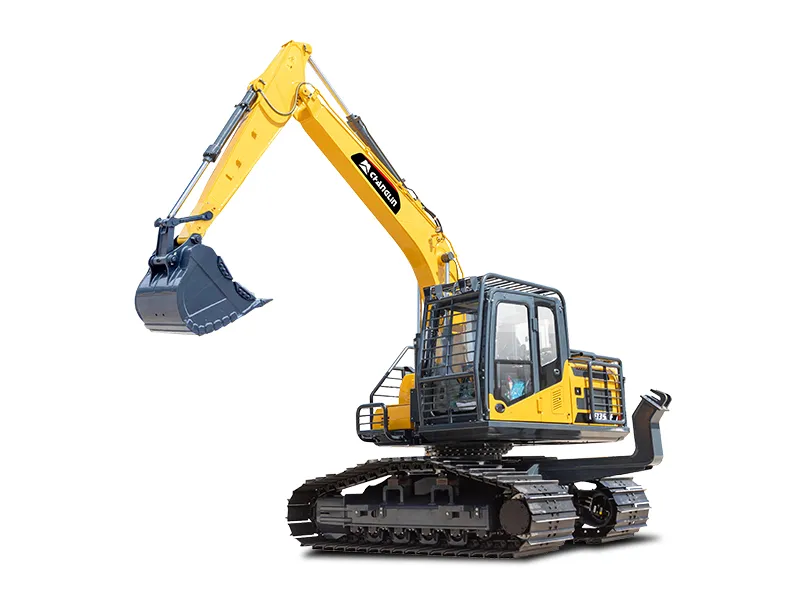

ZG135HF Forestry Excavator

ZG135HF Forestry Excavator
  • ZG135HF Forestry Excavator
  • ZG135HF Forestry Excavator
  • ZG135HF Forestry Excavator

    • ZG135HF Forestry Excavator

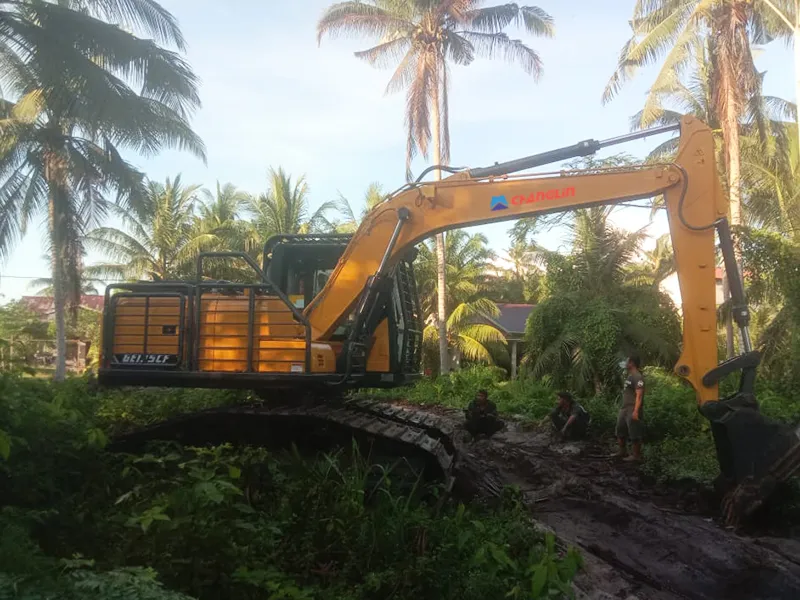

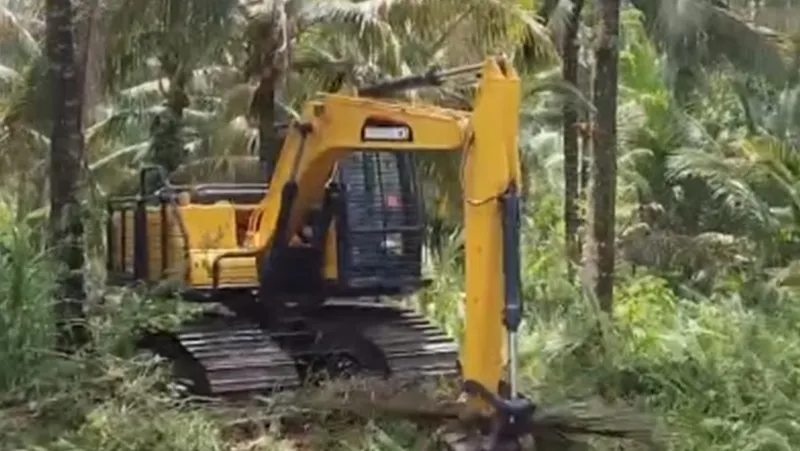

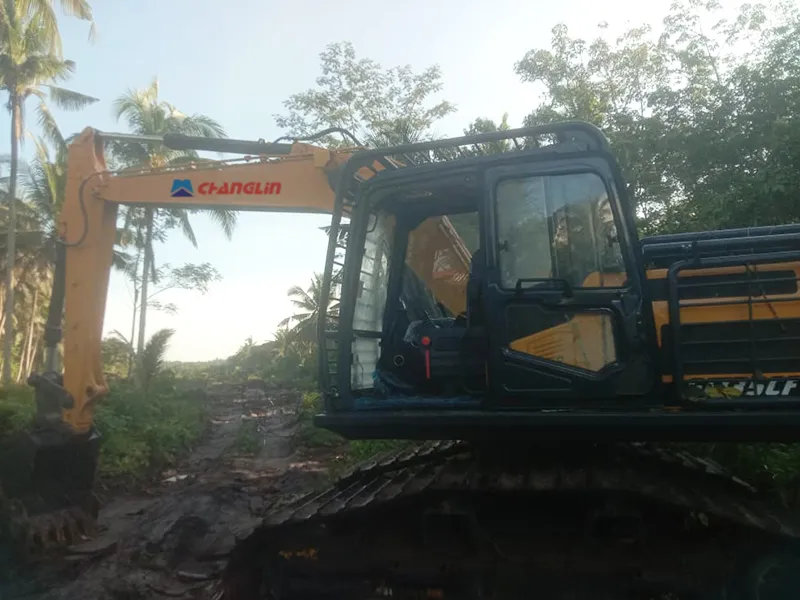

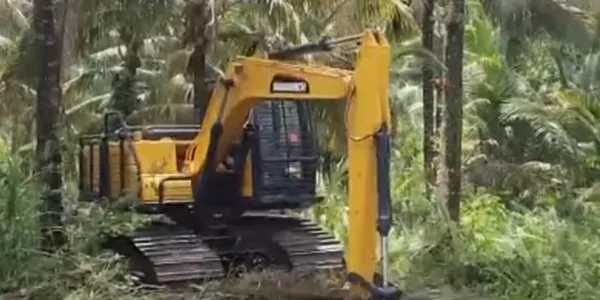

    Equipped with wide tracks, a reinforced undercarriage, and upgraded cooling and lighting systems, the forestry escavator is purpose-built for rugged, obstruction-filled terrains common in forest operations, delivering enhanced traction, stability, and resilience in off-road conditions.

    • Operating weightOperating weight 17200 kg
    • Rated powerRated power 86kW@2200r/min
    • A-Overall lengthA-Overall length 8375 mm
    Request a Quote
    ZG135HF Forestry Excavator
    ZG135HF
    ZG135HF Forestry Excavator
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZG135HF Forestry Excavator

    Fitted with 960 mm wide tracks to significantly reduce ground pressure down to 29.7 kPa while the 20-ton-class travel motor boosts tractive force to 182 kN without compromising travel speed.

    ZG135HF Forestry Excavator ZG135HF Forestry Excavator ZG135HF Forestry Excavator

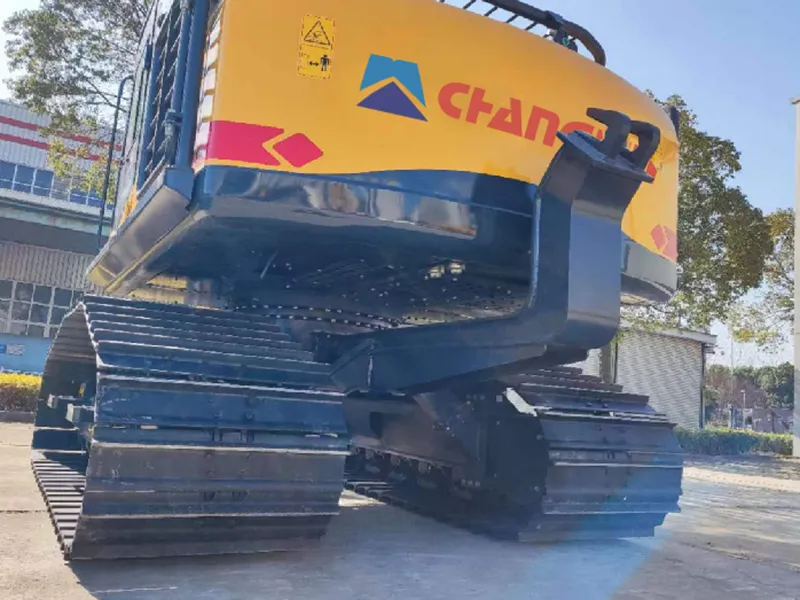

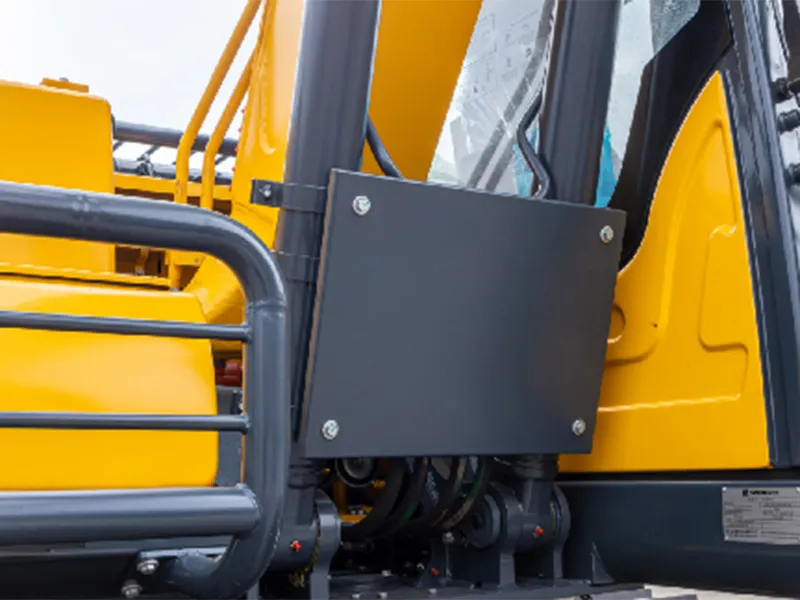

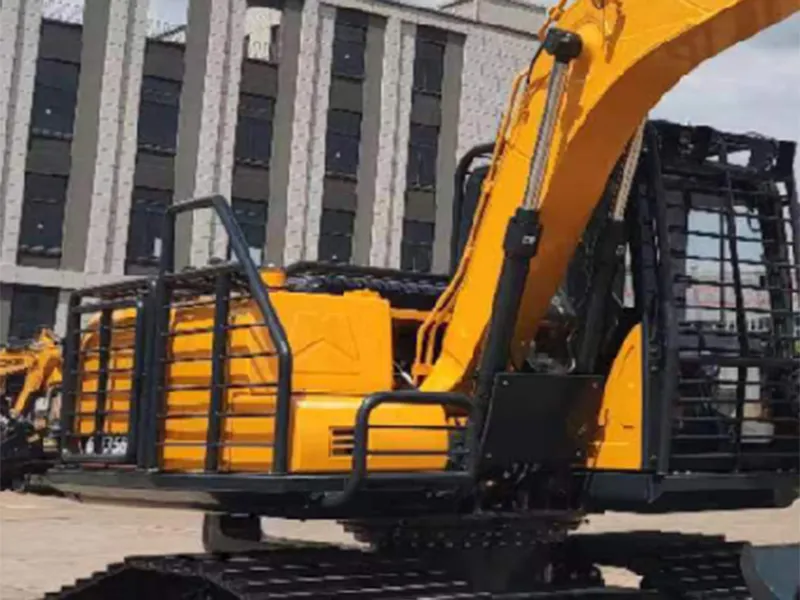

    Features a heightened and reinforced forestry-specific undercarriage with welded box-type anti-collision beams, improving resistance to impact and ensuring greater reliability and terrain adaptability.

    ZG135HF Forestry Excavator

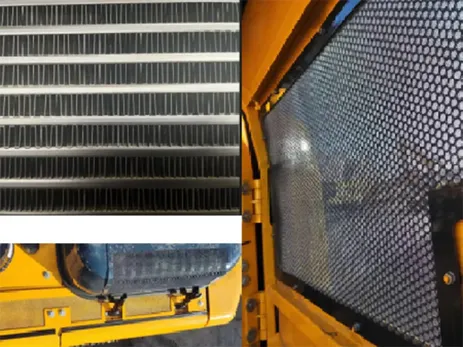

    Equipped with an enlarged radiator system optimized for forest working conditions. The intake side access door and roof intake are fitted with fine mesh dust screens to prevent foreign objects from clogging the radiator.

    ZG135HF Forestry Excavator ZG135HF Forestry Excavator ZG135HF Forestry Excavator

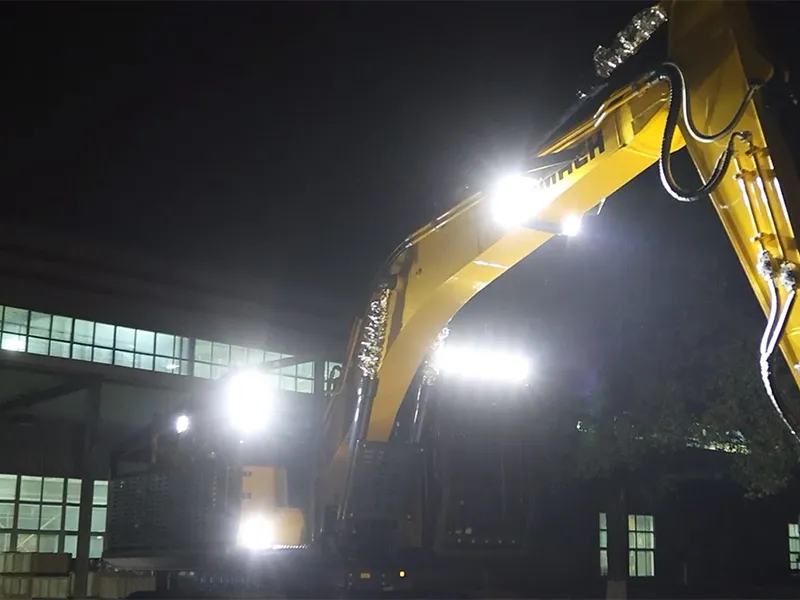

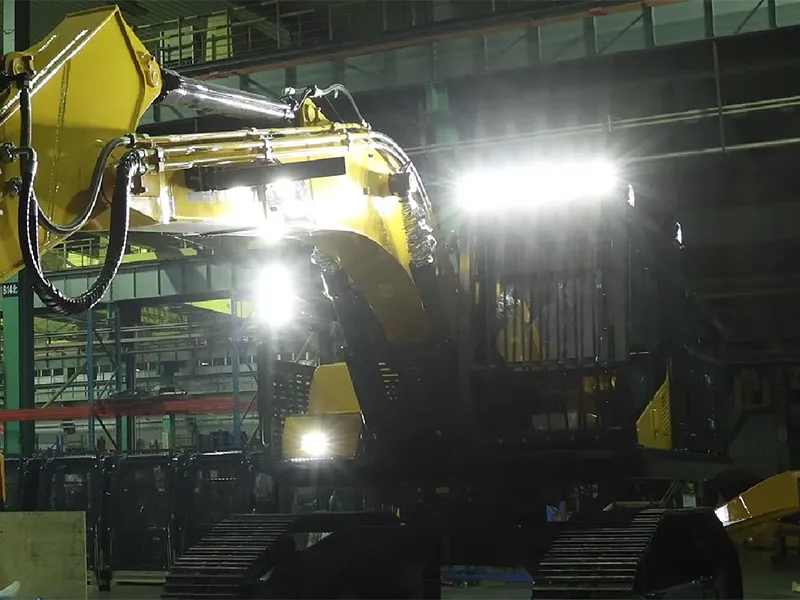

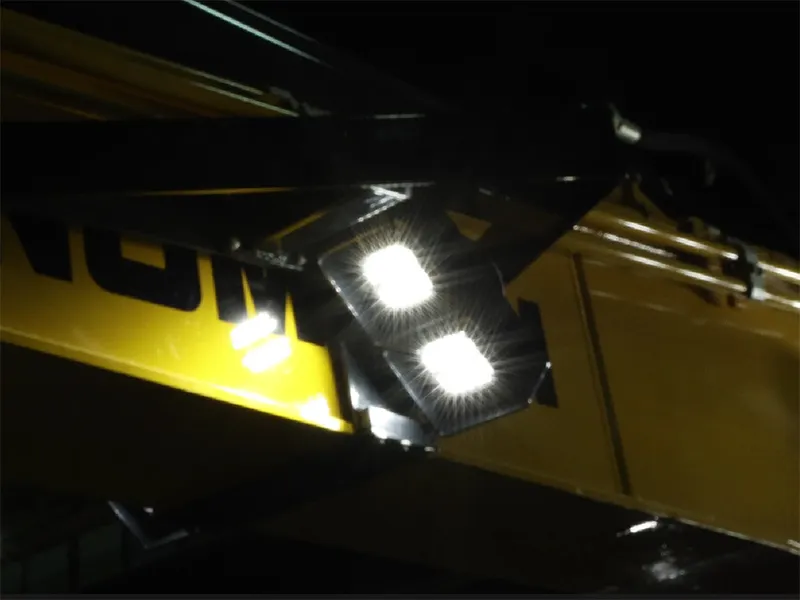

    Additional heavy-duty LED lighting units are installed to enhance visibility and operational safety in low-light forest environments.

    Technical Specifications
    • Model ZG135HF
    • Operating weight 17200kg
    • Bucket capacity Depending on attatchment
    • Engine model Cummins
    • Rated power 86kW@2200r/min
    • Fuel tank capacity 290L
    • Travel speed 4.4/2.6km/h
    • Swing speed 12r/min
    • Gradeablity 70%
    • Bucket digging force at power max (ISO) 100kN
    • Average grounding pressure 29.7kPa
    • Hydraulic pump model K5V80DTP1
    • Max. hydraulic flow 2*160L/min
    • Setting pressure 34.3MPa
    • Hydraulic tank capacity 165L
    • A-Overall length 8375mm
    • B-Overall width 3010mm
    • C-Overall height (to the top of boom) 2980mm
    • D-Overall height(to the top of cab) 3297mm
    • E-Counterweight ground clearance 1247mm
    • F-Min. ground clearance 636mm
    • G-Tailswing radius 2365mm
    • H-Track grounding length 3010mm
    • J-Track length 3735mm
    • K-Track gauge 2200mm
    • L-Track width 3010mm
    • M-Track shoe width 800/960mm (optional)
    • N-Turntable width 2739mm
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

    A hydraulic grapple is the most suitable choice. It provides a secure grip and flexible movement, allowing efficient stacking, loading, and transport of logs or timber in forestry operations.

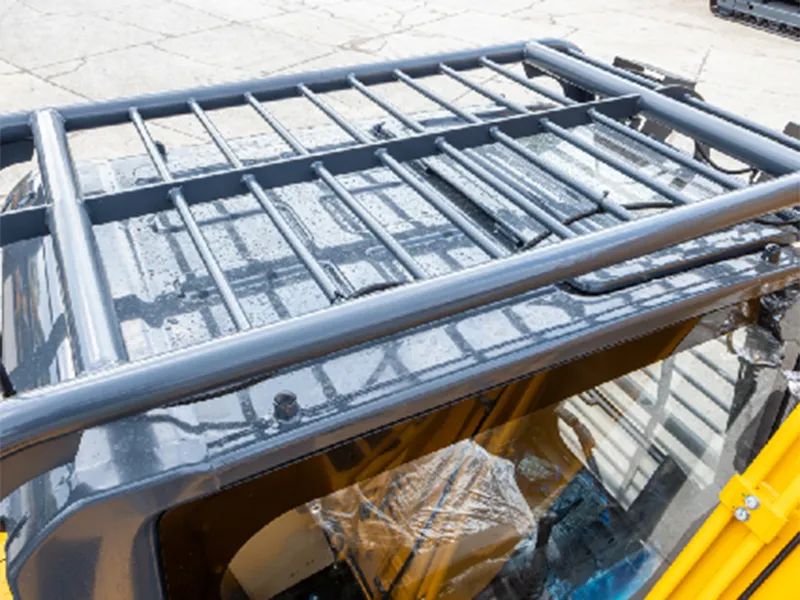

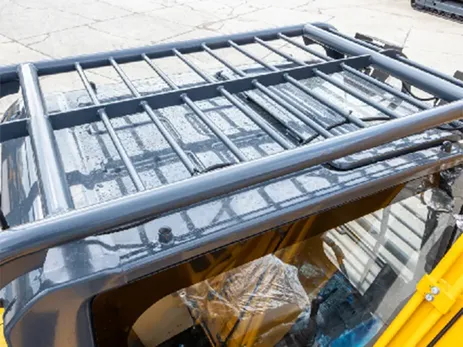

    Protective guards are optional and installed based on the intended application. For forestry operations where falling branches and impact hazards are common, adding a protective guard is strongly recommended to enhance operator safety and equipment durability.

    Amphibious excavators are designed for marshlands, swamps, and shallow water environments. Their pontoon chassis provides high buoyancy and stability on soft ground. With extended booms and a wide operating radius, they are also suitable for deep-water construction. The square pontoon platform reduces the risk of rollover, and the lightweight manganese steel body with anti-corrosion coating ensures long service life in harsh, waterlogged conditions.

    Over 30 excavator attachments are available for forestry use, including hydraulic breakers, log grapples, and feller bunchers. In addition, the undercarriage is typically upgraded with a reinforced, widened frame and skid-plate style track guards to improve ground clearance and terrain adaptability. Protective systems may include bullet-resistant cabins, high-strength body panels, and 360° LED lighting to improve safety and visibility in rugged forest environments.

    Amphibious excavators equipped with positioning piles and extended booms can reach a maximum digging depth of 10,020 mm (10.02 meters), depending on the size of the pontoons and the configuration of the spuds. Operators can adjust the spud legs to adapt the digging depth for deeper sections of a water body. The deeper the pontoons are submerged, the greater the excavating depth achievable.
