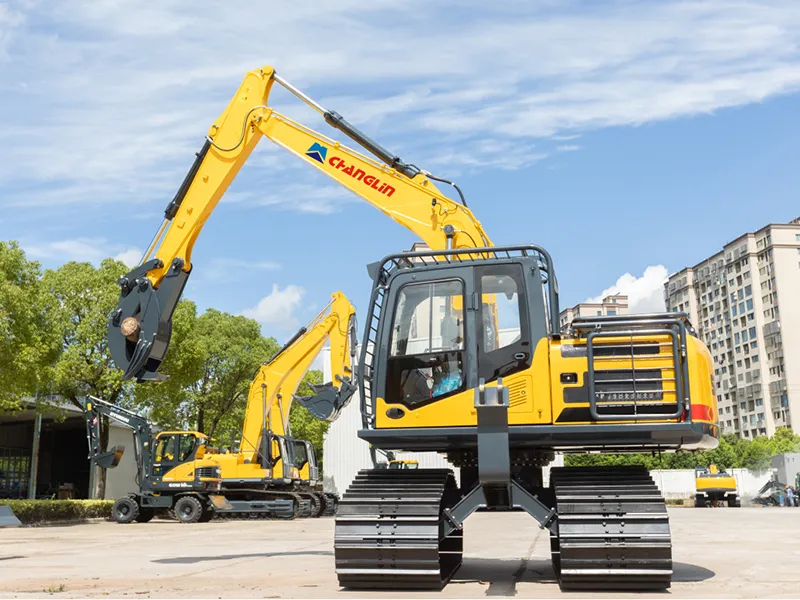

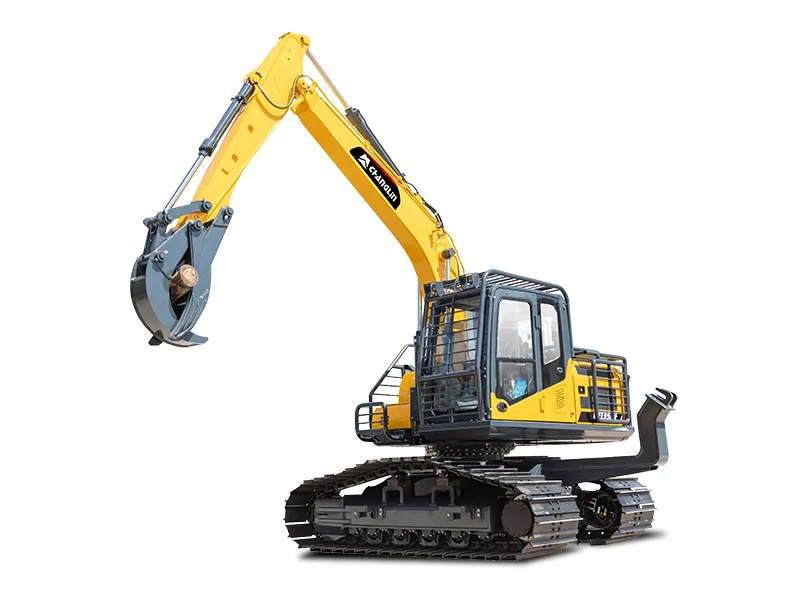

    The log loader excavator is built on a standard excavator chassis and integrates proven in-house forestry technologies. Specially developed for timber handling in forest operations, it replaces traditional manual or animal-powered methods with efficient mechanical logging. It features a high-power hydraulic winch and log grapple, enabling long-distance dragging and accurate stacking of timber while minimizing material damage.

    • Rated powerRated power 86kW@2200r/min
    • A-Overall lengthA-Overall length 8389 mm
    • N-Overall widthN-Overall width 3010 mm
    Request a Quote
    ZG135CF Log Loader Excavator
    ZG135CF
    ZG135CF Log Loader Excavator
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator

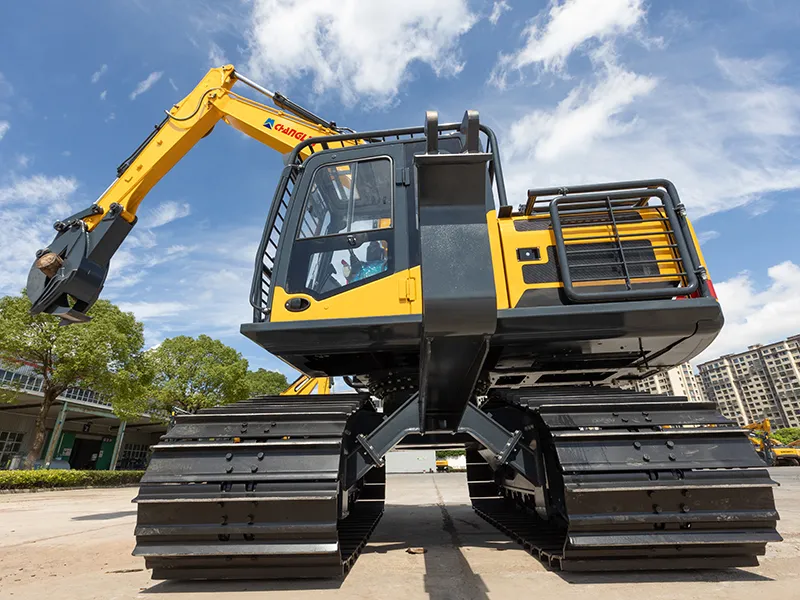

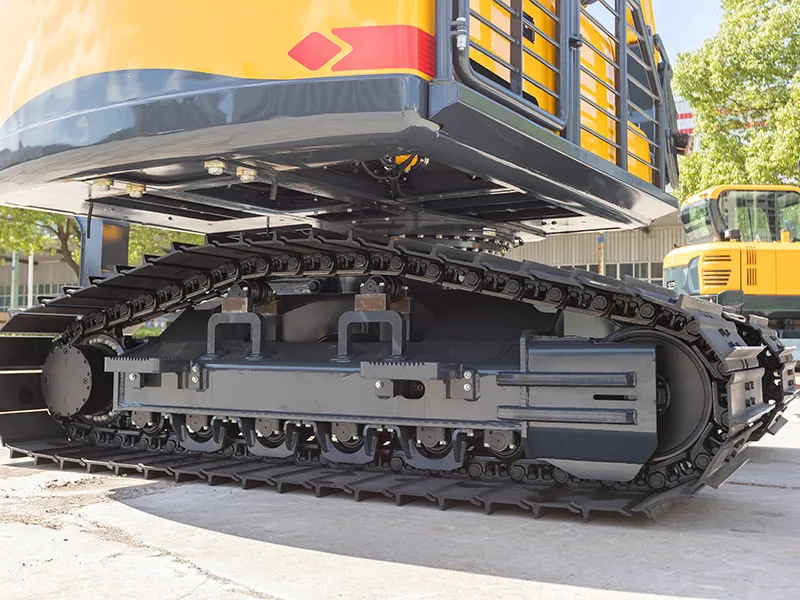

    Fitted with 960 mm wide tracks that reduce ground pressure to just 29.7 kPa. Combined with 20-ton class travel motors, the machine delivers a strong traction force of 182 kN while maintaining stable travel speed.

    ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator

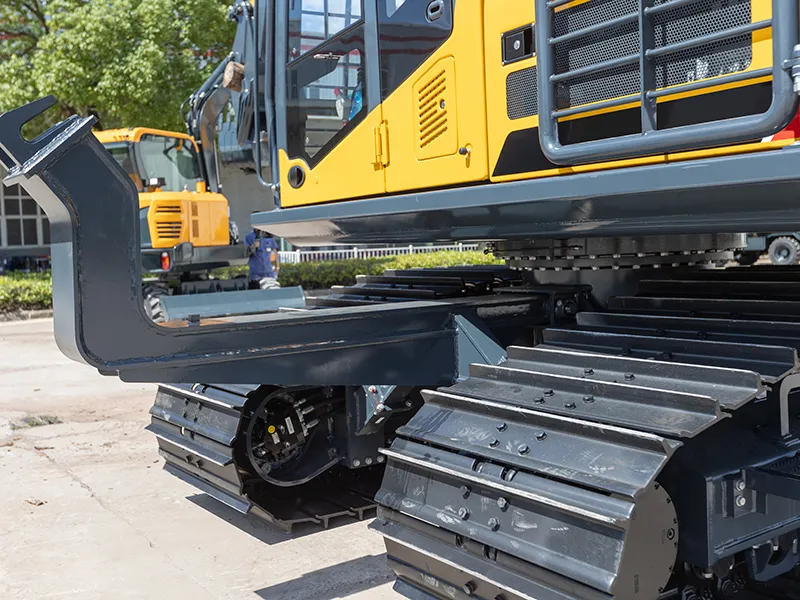

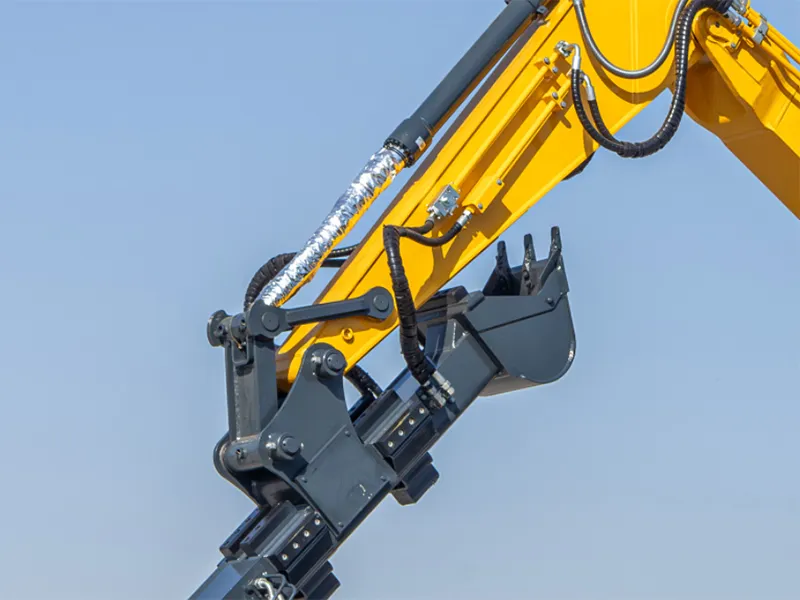

    An auxiliary arm allows seamless switching between logging and excavation tasks. A boom cylinder support reduces the swing radius to 2365 mm, ensuring easy access through narrow forest terrain.

    ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator

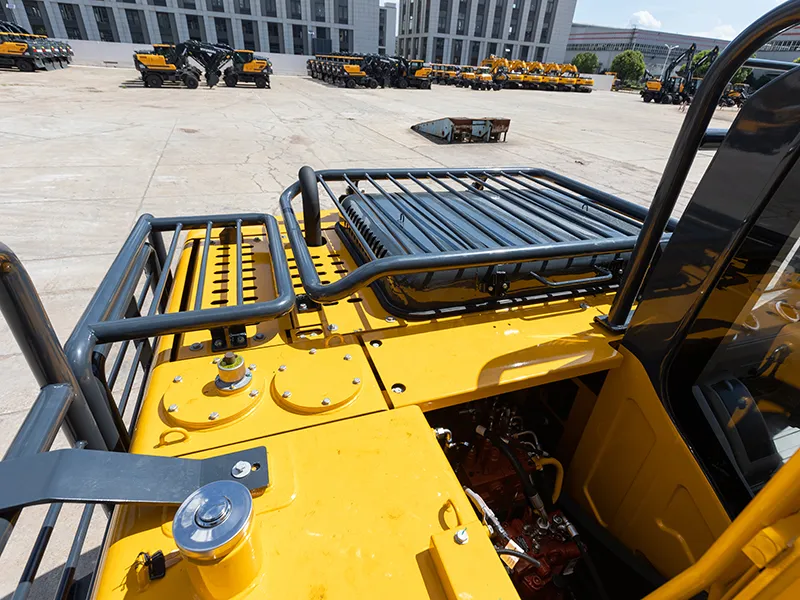

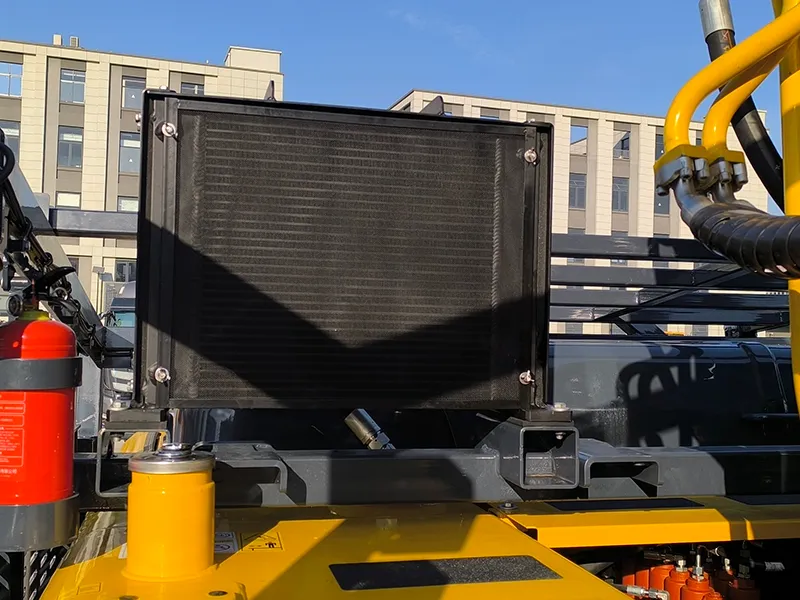

    An upgraded radiator system tailored for forestry conditions offers enhanced heat dissipation. Fine-mesh dust screens on the intake doors and roof vent prevent debris from clogging the radiator during extended operations.

    ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator ZG135CF Log Loader Excavator

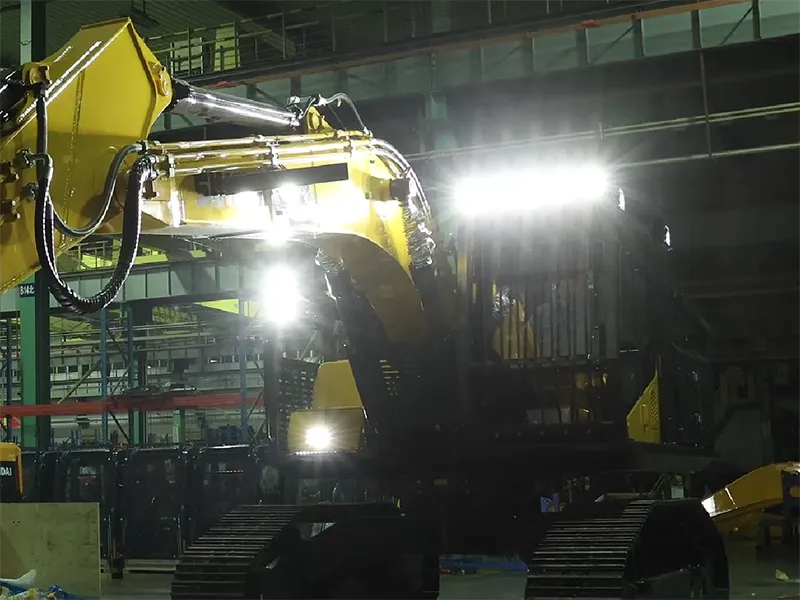

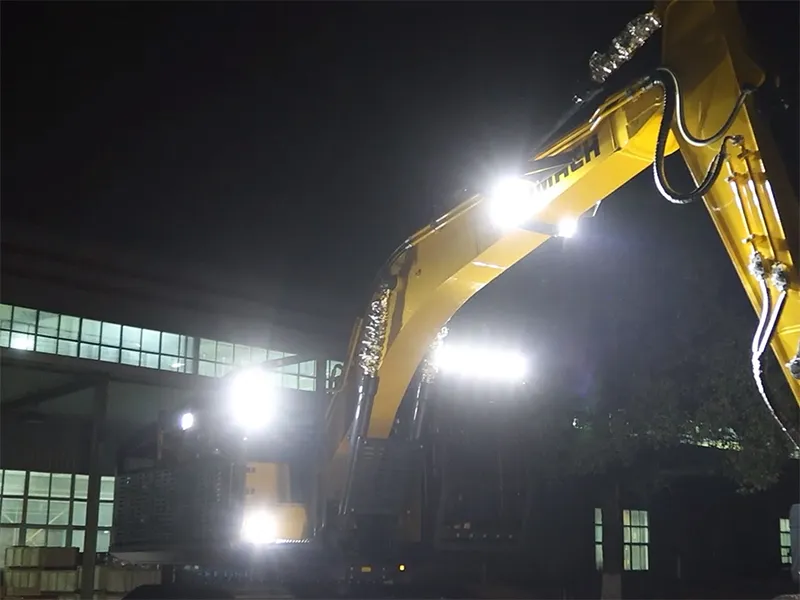

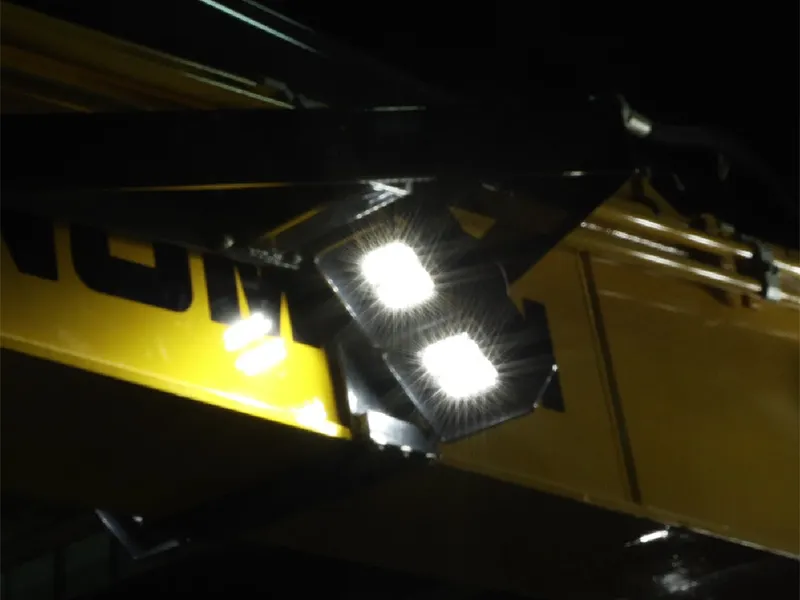

    Reinforced LED lighting improves visibility in dense woodland and low-light environments, supporting safer and more efficient operations.

    Technical Specifications
    • Model ZG135CF
    • Operating weight (without gripper) 16500/16000kg
    • Bucket capacity 0.6m³
    • Engine model Cummins
    • Rated power 86kW@2200r/min
    • Fuel tank capacity 290L
    • Travel speed 4.4/2.6km/h
    • Swing speed 12r/min
    • Gradeablity 70%
    • Average grounding pressure 0.289/0.280kgf/cm²
    • Max. hydraulic flow 2*160L/min
    • Setting pressure 34.3MPa
    • Hydraulic tank capacity 165L
    • A-Overall length 8389mm
    • B-Overall width 2739mm
    • C-Overall height (to the top of boom) 2926mm
    • D-Overall height(to the top of cab) 3207mm
    • E-Counterweight ground clearance 1157.5mm
    • F-Min. ground clearance 582mm
    • G-Tail swing radius 2365mm
    • H-Wheel base 3030mm
    • J-Track length 3901mm
    • K-Track gauge 2050mm
    • L-Track width 3010mm
    • M-Track shoe width 960mm (optional)
    • N-Overall width 3010mm
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

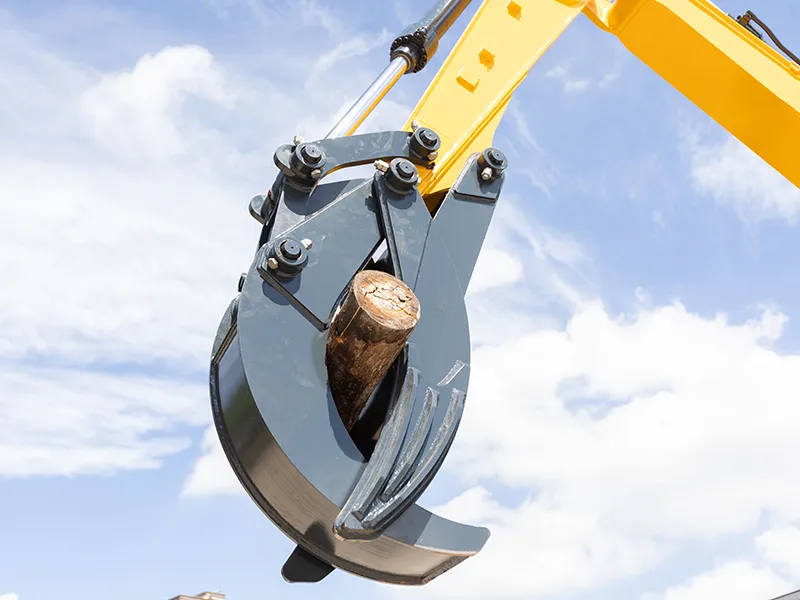

    A hydraulic grapple is the most suitable choice. It provides a secure grip and flexible movement, allowing efficient stacking, loading, and transport of logs or timber in forestry operations.

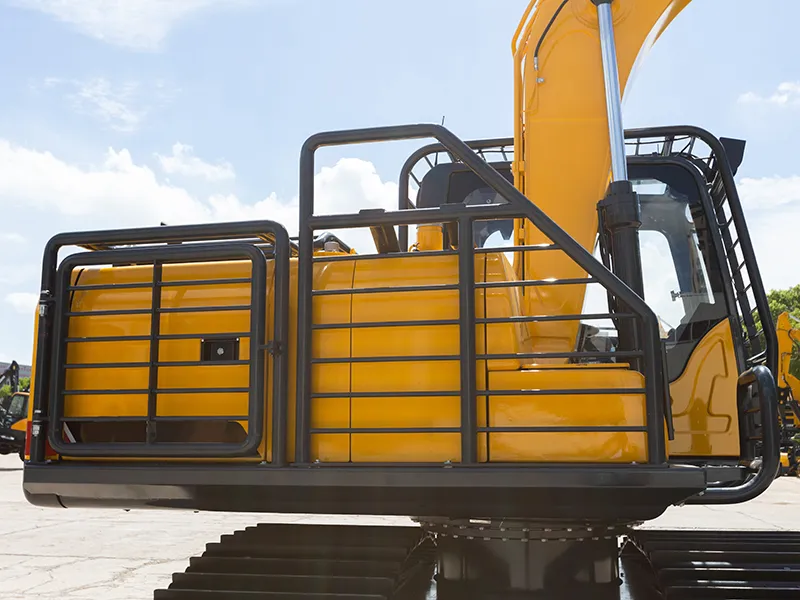

    Protective guards are optional and installed based on the intended application. For forestry operations where falling branches and impact hazards are common, adding a protective guard is strongly recommended to enhance operator safety and equipment durability.

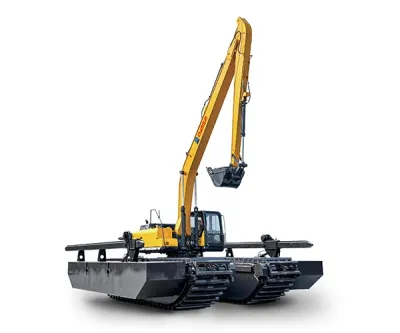

    Amphibious excavators are designed for marshlands, swamps, and shallow water environments. Their pontoon chassis provides high buoyancy and stability on soft ground. With extended booms and a wide operating radius, they are also suitable for deep-water construction. The square pontoon platform reduces the risk of rollover, and the lightweight manganese steel body with anti-corrosion coating ensures long service life in harsh, waterlogged conditions.

    Over 30 excavator attachments are available for forestry use, including hydraulic breakers, log grapples, and feller bunchers. In addition, the undercarriage is typically upgraded with a reinforced, widened frame and skid-plate style track guards to improve ground clearance and terrain adaptability. Protective systems may include bullet-resistant cabins, high-strength body panels, and 360° LED lighting to improve safety and visibility in rugged forest environments.

    Amphibious excavators equipped with positioning piles and extended booms can reach a maximum digging depth of 10,020 mm (10.02 meters), depending on the size of the pontoons and the configuration of the spuds. Operators can adjust the spud legs to adapt the digging depth for deeper sections of a water body. The deeper the pontoons are submerged, the greater the excavating depth achievable.
