ZG210HF Feller Buncher Excavator

ZG210HF Feller Buncher Excavator
  • ZG210HF Feller Buncher Excavator
  • ZG210HF Feller Buncher Excavator
  • ZG210HF Feller Buncher Excavator
  • ZG210HF Feller Buncher Excavator

    • ZG210HF Feller Buncher Excavator

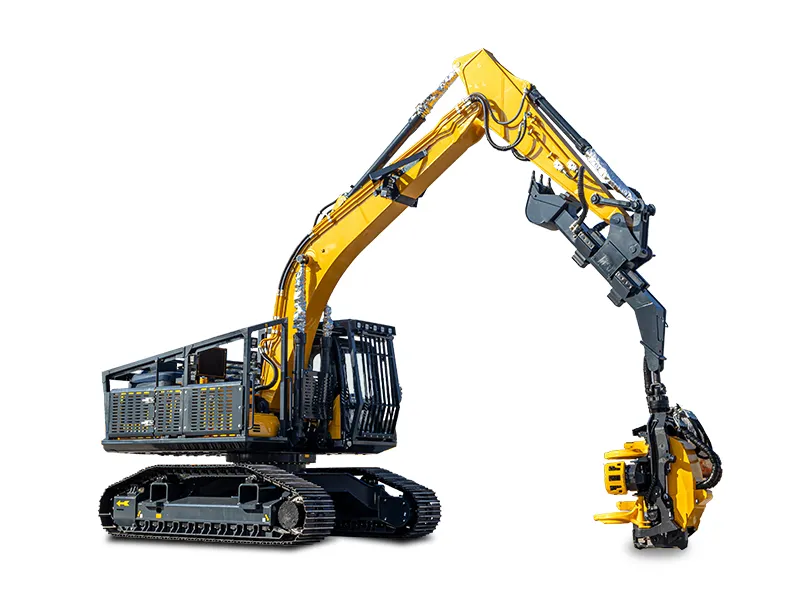

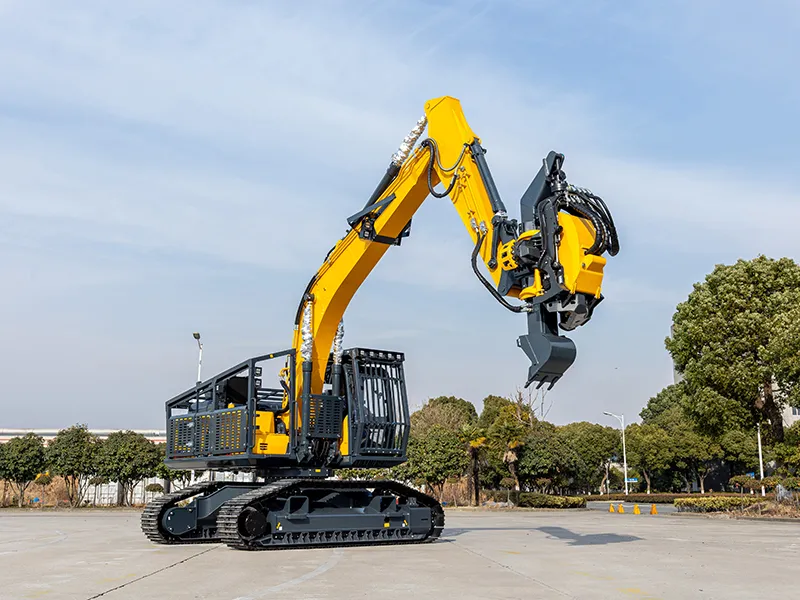

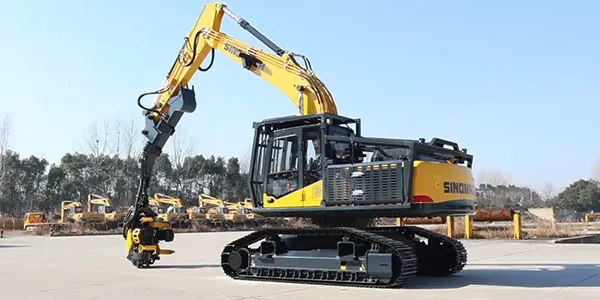

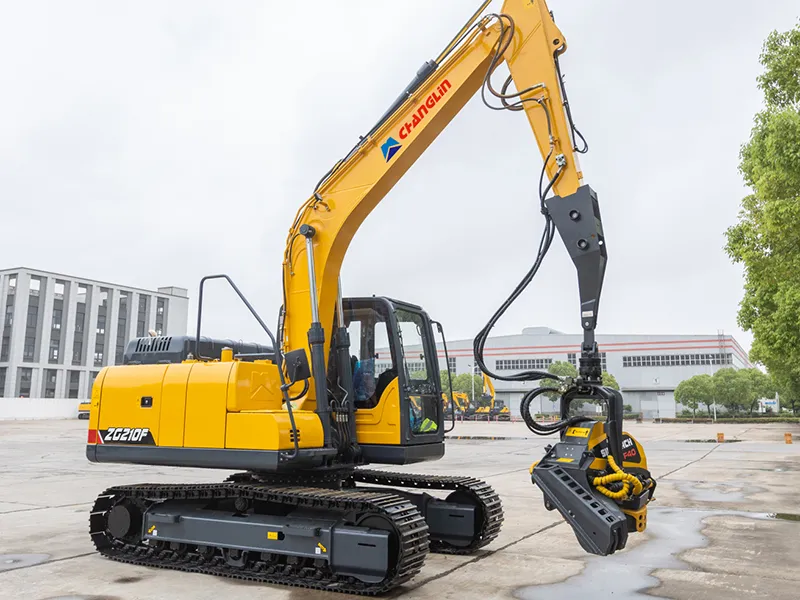

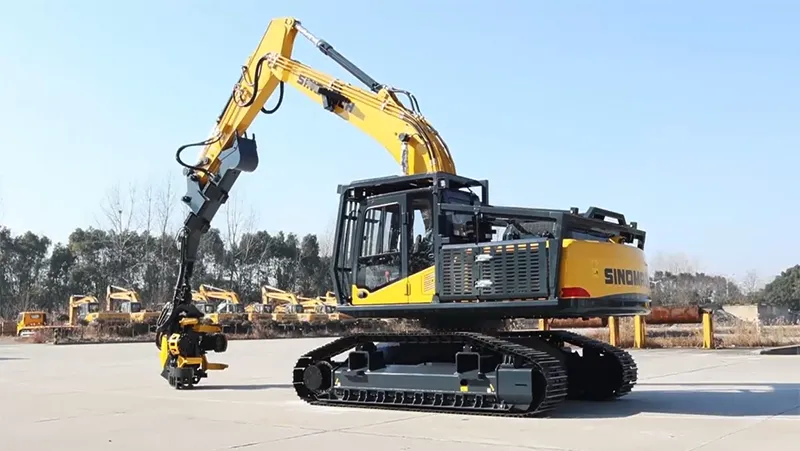

    The feller buncher excavator is a multi-functional forestry excavator engineered for both felling and excavation tasks. Built on a modified excavator platform, it features a forest-specific undercarriage, an auxiliary arm for swift switching between logging and digging operations, and cold-weather adaptation packages for reliable performance in environments as low as -40°C.

    • Operating weightOperating weight 27300 kg
    • Engine power ratingEngine power rating 133.3kW@2000rpm
    • Overall lengthOverall length 9630 mm
    Request a Quote
    ZG210HF Feller Buncher Excavator
    ZG210HF
    ZG210HF Feller Buncher Excavator
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZG210HF Feller Buncher Excavator ZG210HF Feller Buncher Excavator ZG210HF Feller Buncher Excavator

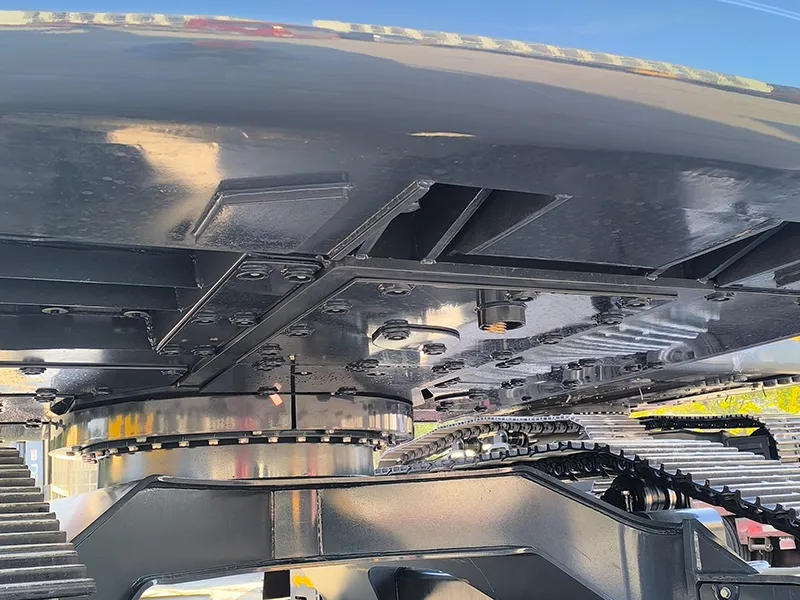

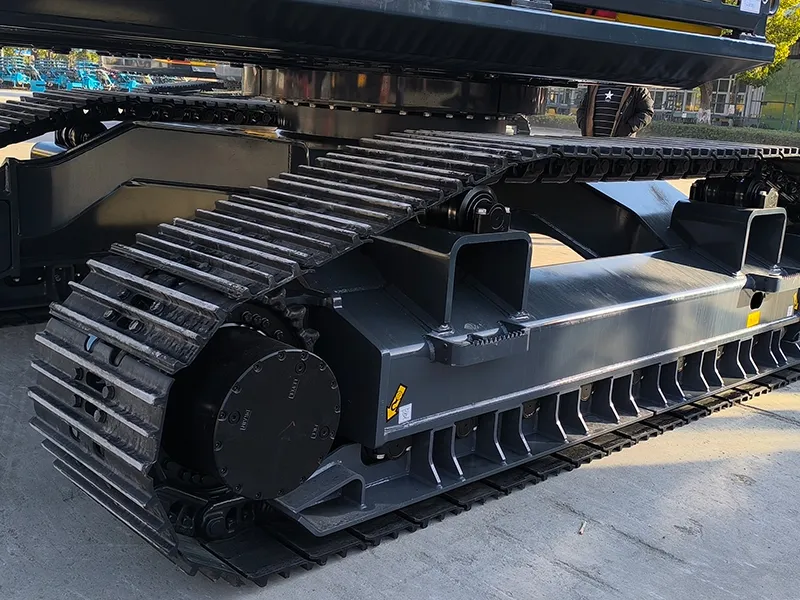

    Equipped with a specialized forestry undercarriage featuring high ground clearance for improved obstacle navigation. Fitted with ski-style track guards and anti-derailment supports to offer full protection for the travel system.

    ZG210HF Feller Buncher Excavator

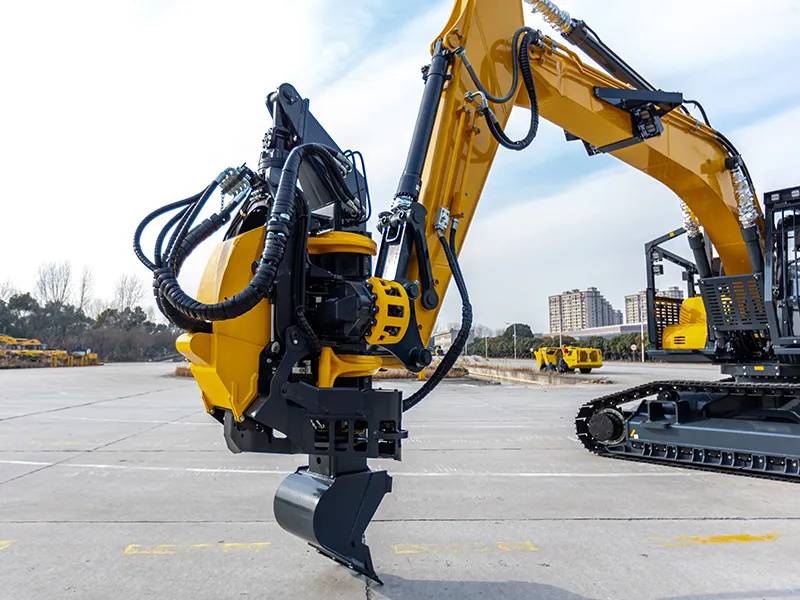

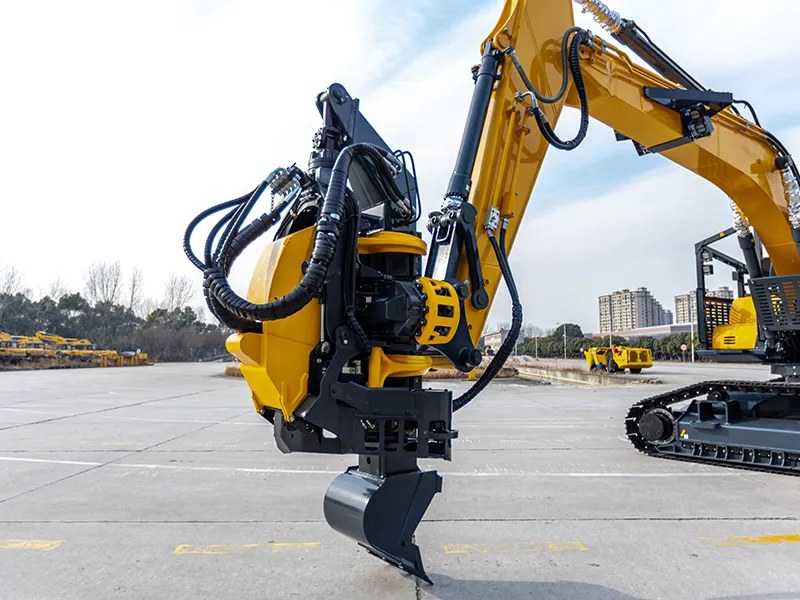

    Incorporates an auxiliary arm that enables seamless transitions between felling and excavation operations, significantly improving flexibility and job-site efficiency. A boom cylinder support is included to reduce the swing radius to 2816 mm, allowing for easy access in narrow forest paths.

    ZG210HF Feller Buncher Excavator

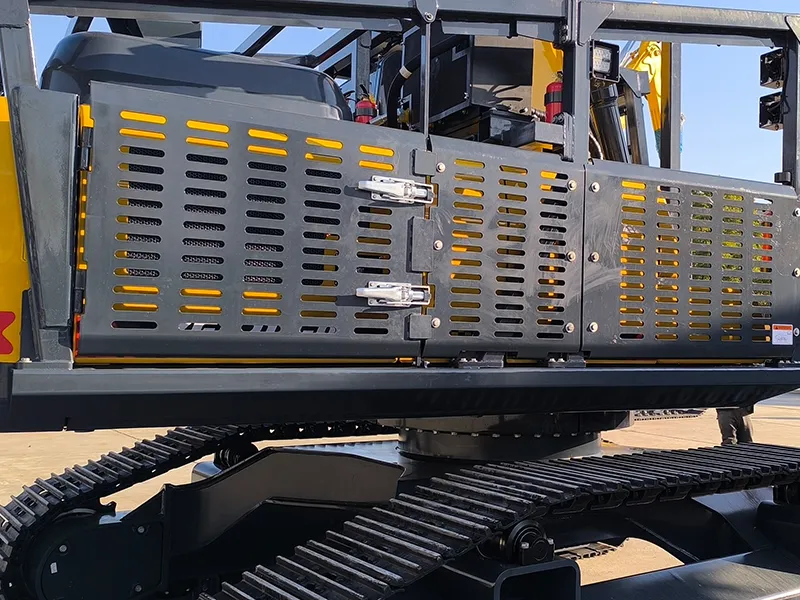

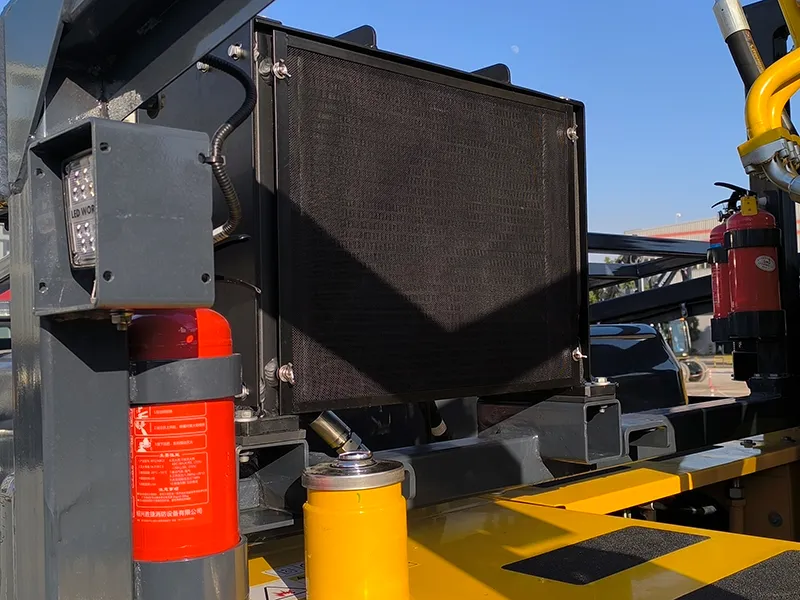

    Outfitted with an enlarged radiator system tailored to high-demand forest operations. Fine-mesh dust screens on the intake side door and roof intake prevent foreign matter from blocking the radiator.

    ZG210HF Feller Buncher Excavator ZG210HF Feller Buncher Excavator

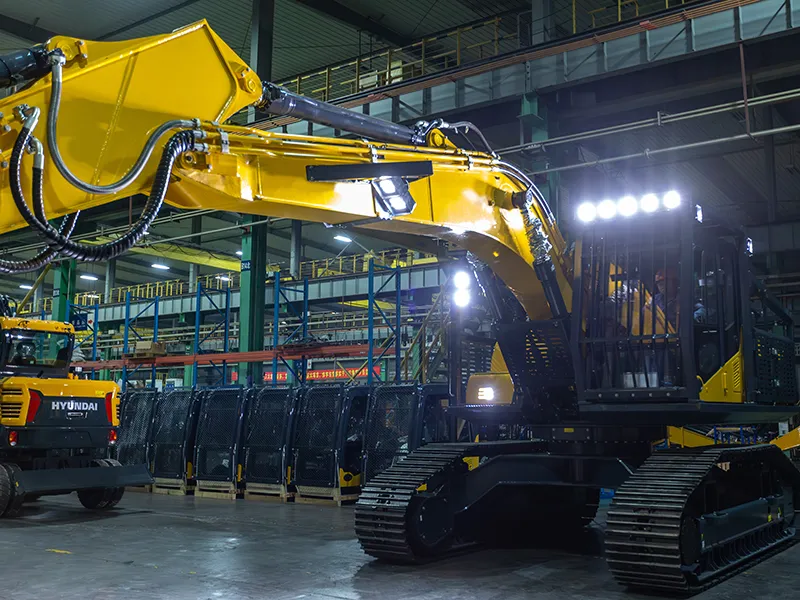

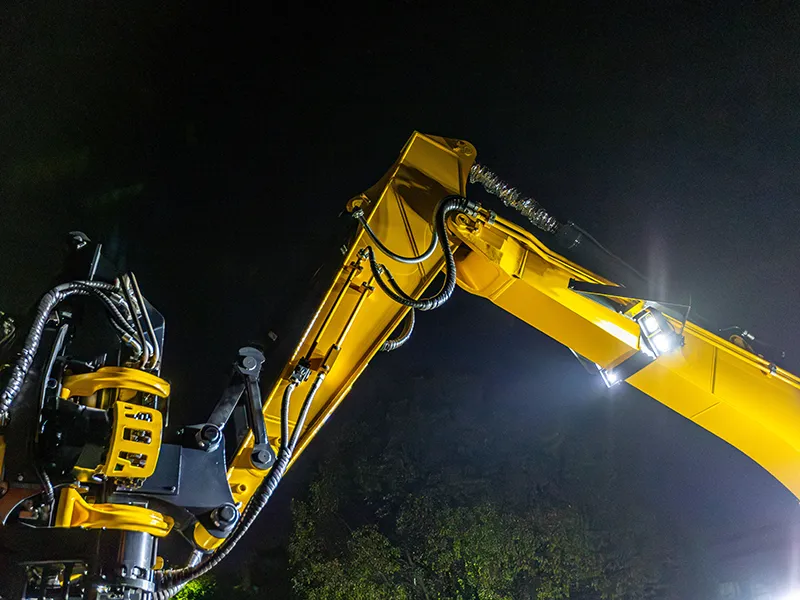

    Reinforced LED lighting has been added to increase visibility and ensure safe operation in dense and low-light woodland conditions.

    Technical Specifications
    • Model ZG210HF
    • Operating weight 27300kg
    • Engine model Cummins
    • Emission standards NationⅡ
    • Engine power rating 133.3kW@2000rpm
    • Fuel tank capacity 420L
    • Hydraulic oil tank capacity 225L
    • Rated flow rate of hydraulic system 2*234L/min
    • Gradeablity 70%
    • Bucket digging force at power max (ISO) 100kN
    • Hydraulic system pressure 34.3Mpa
    • Max. working height 7844mm
    • Max. working distance 7976mm
    • Min. operating range 1960mm
    • Hydraulic tank capacity 165L
    • Overall length 9630mm
    • Overall width 3440mm
    • Overall height 3404mm
    • Tail turning radius 2816mm
    • Upper width 3000/3045mm
    • Min. ground clearance 720mm
    • Distance between idler 3650mm
    • Center of sprocket 2620mm
    • Track shoe width 600mm
    After-Sales Support

    We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:

    After-Sales Support
    1

    Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.

    After-Sales Support
    2

    A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.

    After-Sales Support
    3

    Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.

    A hydraulic grapple is the most suitable choice. It provides a secure grip and flexible movement, allowing efficient stacking, loading, and transport of logs or timber in forestry operations.

    Protective guards are optional and installed based on the intended application. For forestry operations where falling branches and impact hazards are common, adding a protective guard is strongly recommended to enhance operator safety and equipment durability.

    Amphibious excavators are designed for marshlands, swamps, and shallow water environments. Their pontoon chassis provides high buoyancy and stability on soft ground. With extended booms and a wide operating radius, they are also suitable for deep-water construction. The square pontoon platform reduces the risk of rollover, and the lightweight manganese steel body with anti-corrosion coating ensures long service life in harsh, waterlogged conditions.

    Over 30 excavator attachments are available for forestry use, including hydraulic breakers, log grapples, and feller bunchers. In addition, the undercarriage is typically upgraded with a reinforced, widened frame and skid-plate style track guards to improve ground clearance and terrain adaptability. Protective systems may include bullet-resistant cabins, high-strength body panels, and 360° LED lighting to improve safety and visibility in rugged forest environments.

    Amphibious excavators equipped with positioning piles and extended booms can reach a maximum digging depth of 10,020 mm (10.02 meters), depending on the size of the pontoons and the configuration of the spuds. Operators can adjust the spud legs to adapt the digging depth for deeper sections of a water body. The deeper the pontoons are submerged, the greater the excavating depth achievable.
