Operating weight 8000 kg
Vibratory drum diameter 1200 mm
Centrifugal force 85 kN

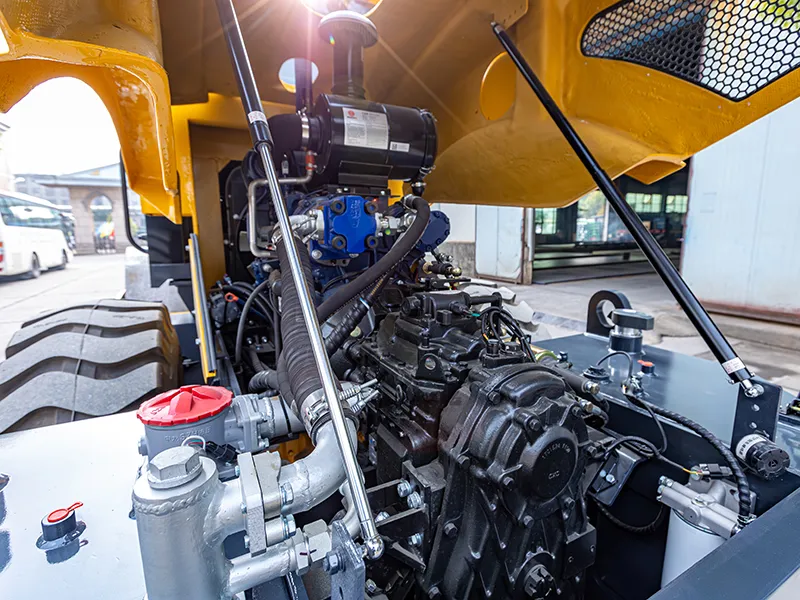

Equipped with a 4-cylinder turbocharged Weichai engine that delivers high efficiency, ample power reserves, and improved fuel economy while meeting environmental standards.

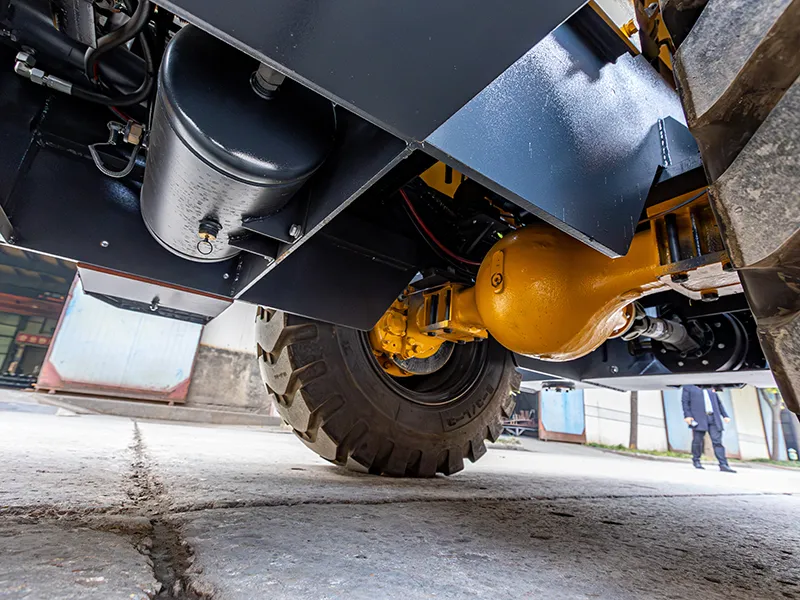

The transmission system includes a roller-specific gearbox with a synchronizer, delivering high torque output and smoother shifting. The travel brake combines air-assisted hydraulic caliper brakes, while the parking brake uses a reliable drum-type mechanical design for enhanced operational safety.
The rear engine hood opens at a wide angle, making daily maintenance and repair tasks faster and easier to carry out.

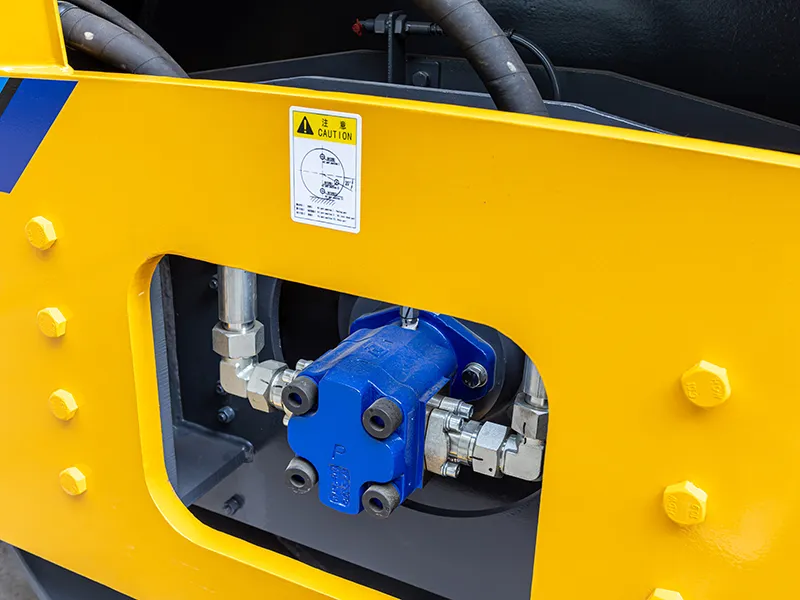

Fitted with hydraulic components from well-known brands, the machine ensures consistent performance and long-term reliability under demanding conditions.

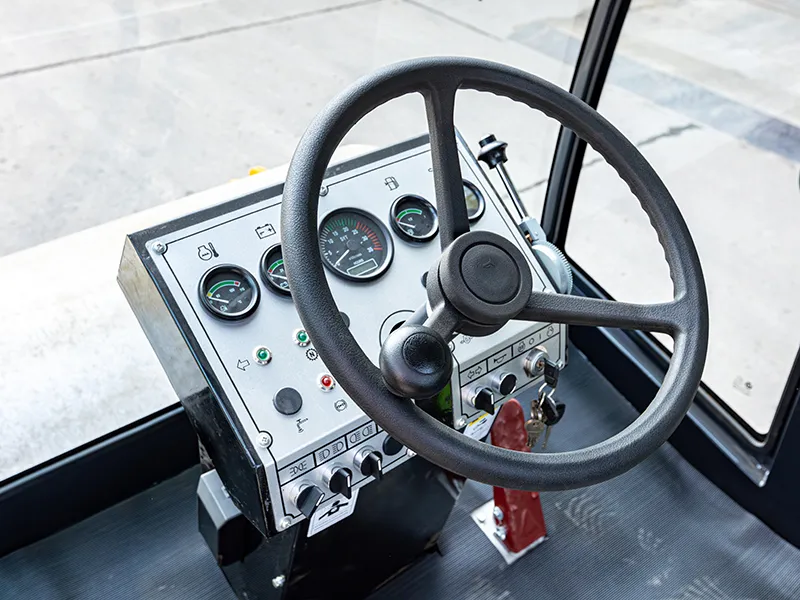

Comes standard with a fully enclosed cab for operator comfort, with optional heating and air conditioning systems available to suit different working environments.

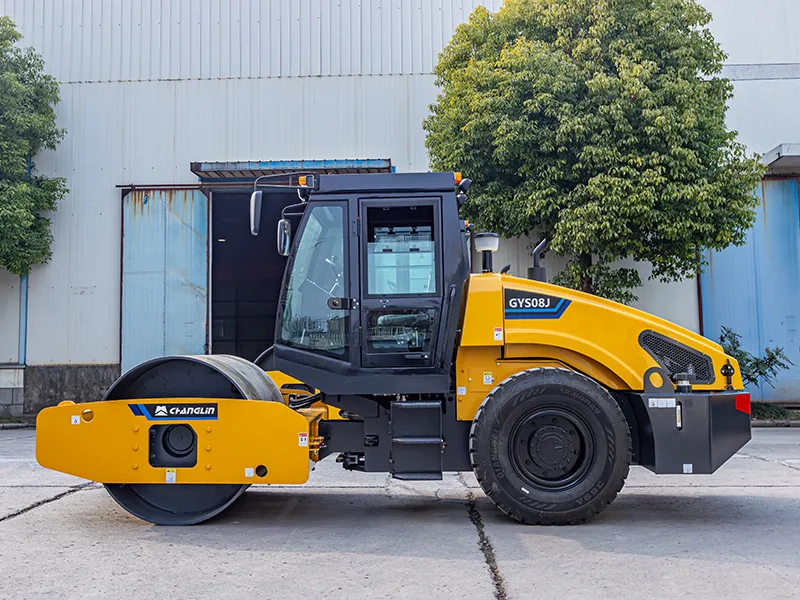

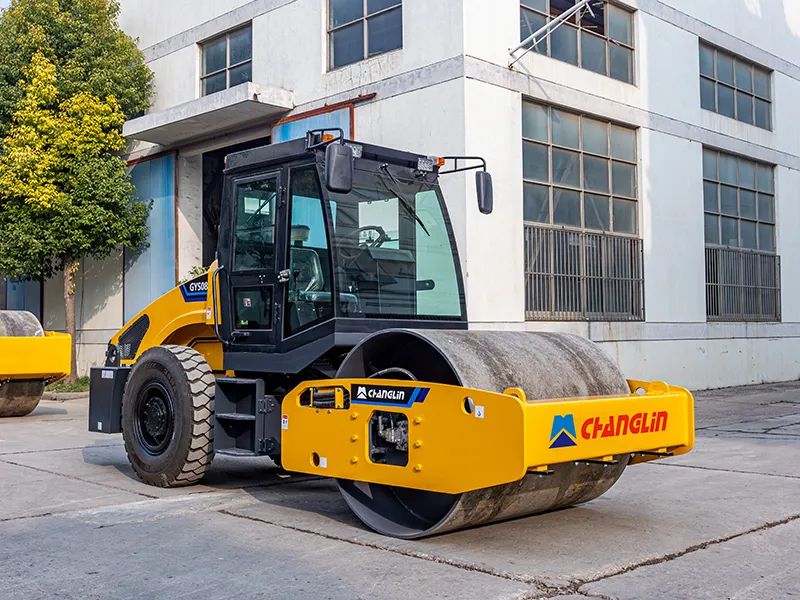

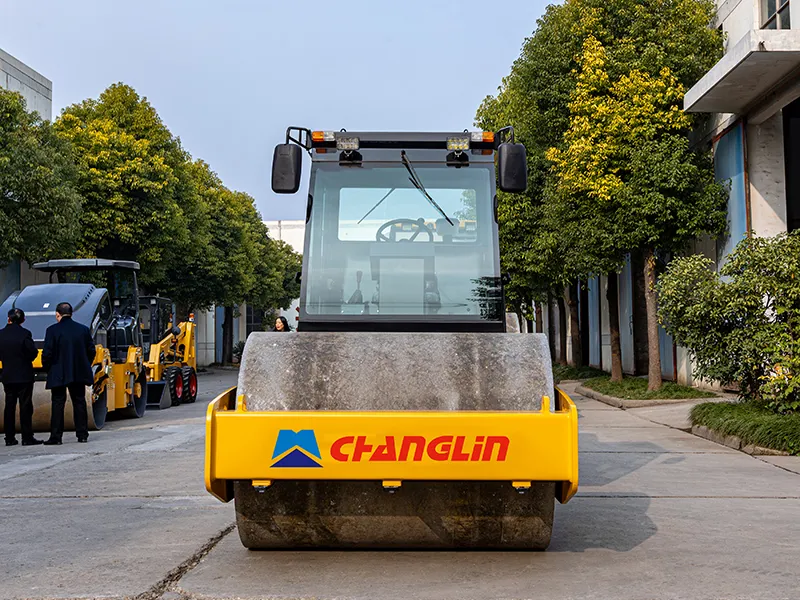

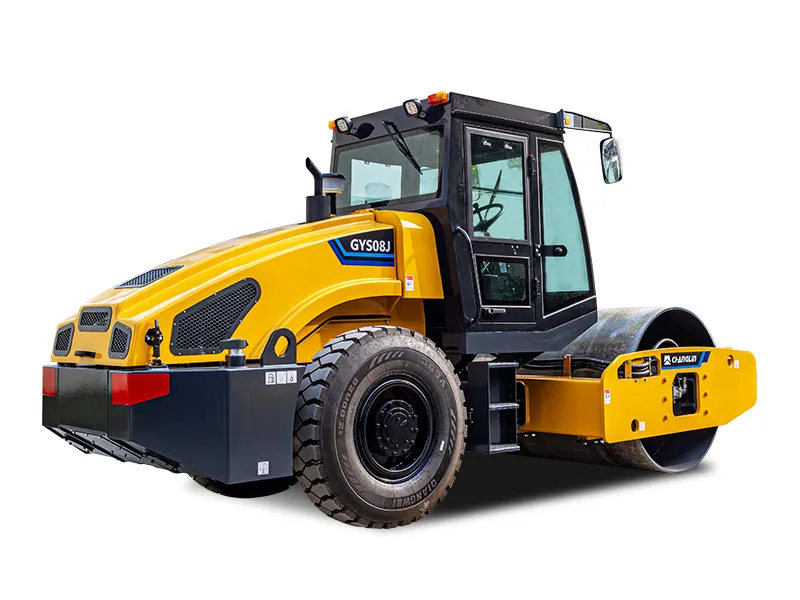

- Model GYS08J
- Operating weight 8000kg
- Vibratory drum diameter 1200mm
- Vibratory drum width 1650mm
- Vibratory frequency 42Hz
- Vibratory amplitude 0.7mm
- Centrifugal force 85kN
- Travel Speed (Forward) 2.2/4.2/7.5/12.5/15.5km/h
- Travel Speed (Reverse) 2.5km/h
- Min. ground clearance 300mm
- Wheel base 2680mm
- Static line pressure 228N/cm
- Min. turning radius 5500mm
- Gradeability 25%
- Dimensions (L×W×H) 5130×1830×2570mm
- Engine model A4
- Engine type Inline 4 cylinder, 4 stroke, water cooled
- Power 42kW
- Rated speed 2200r/min
- Fuel tank capacity 145L
- Hydraulic oil tank capacity 120L
- Tire 12.00-20
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
