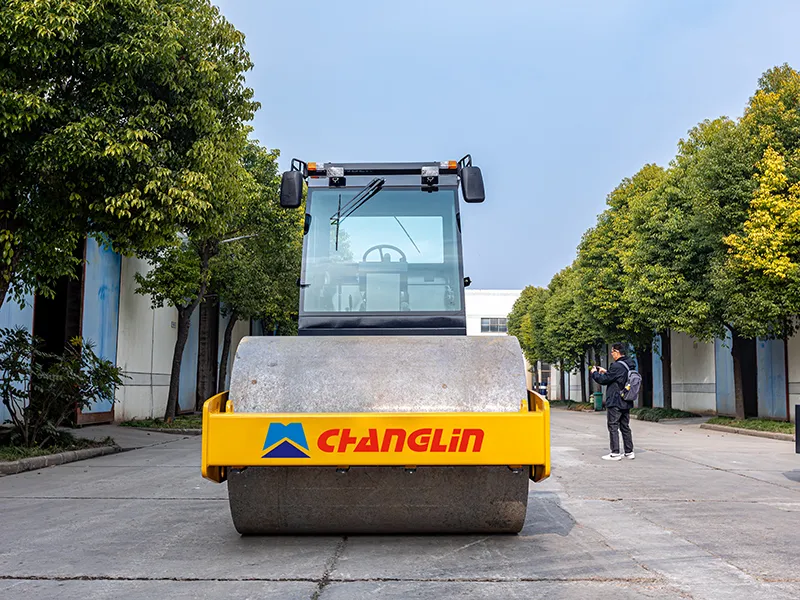

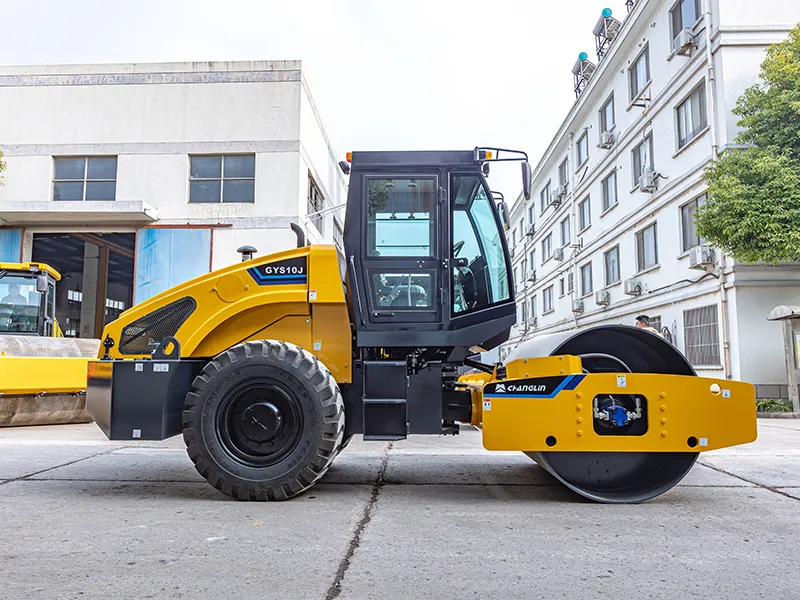

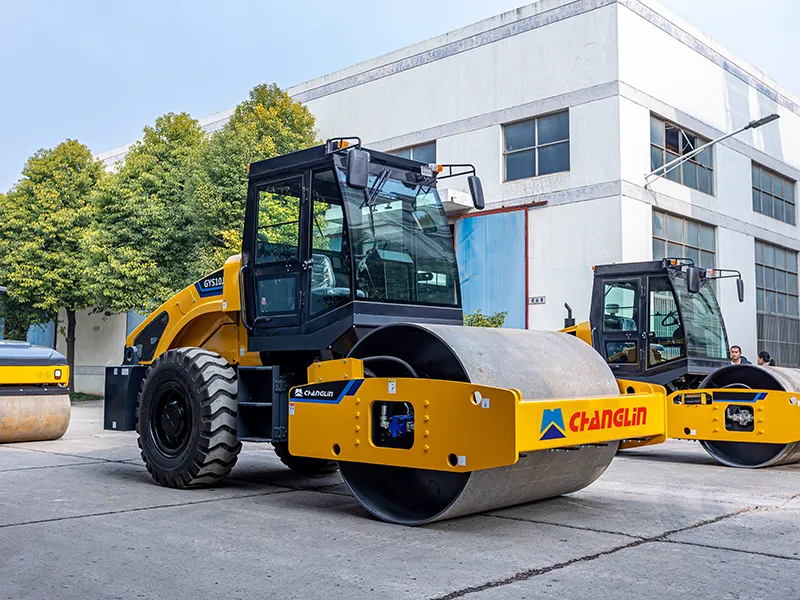

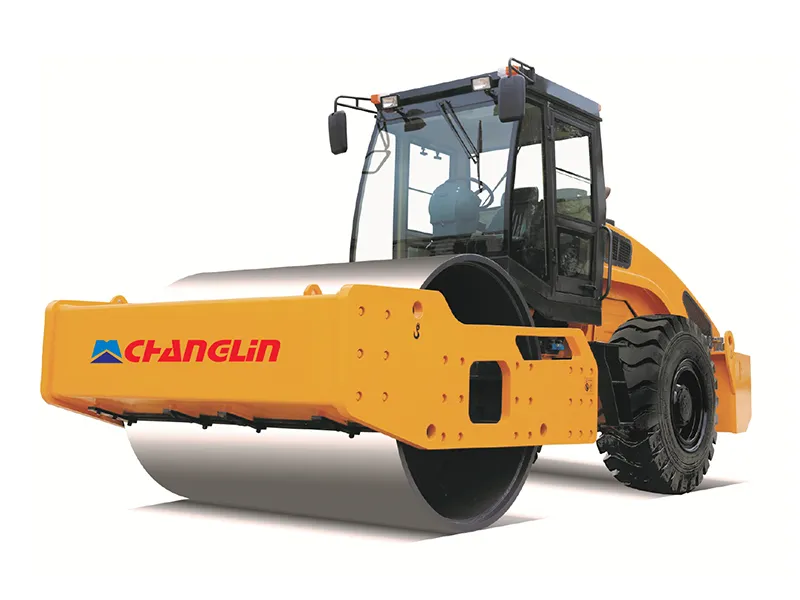

GYS10J Single Drum Vibratory Roller / Soil Compactor

GYS10J Single Drum Vibratory Roller / Soil Compactor
  • GYS10J Single Drum Vibratory Roller / Soil Compactor
  • GYS10J Single Drum Vibratory Roller / Soil Compactor
  • GYS10J Single Drum Vibratory Roller / Soil Compactor
  • GYS10J Single Drum Vibratory Roller / Soil Compactor
  • GYS10J Single Drum Vibratory Roller / Soil Compactor

    • GYS10J Single Drum Vibratory Roller / Soil Compactor
    • Operating weightOperating weight 10000 kg
    • Vibratory drum diameterVibratory drum diameter 1430 mm
    • Centrifugal forceCentrifugal force 225/105 kN
    • Vibratory drum diameterDimensions (L×W×H) 5570×2180×3010 mm
    Request a Quote
    Product Brochure
    GYS10J
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    GYS10J Single Drum Vibratory Roller / Soil Compactor

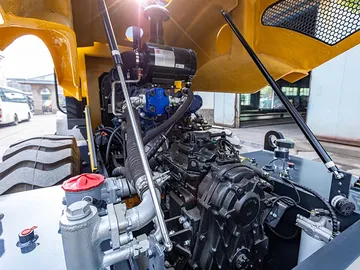

    Equipped with a 4-cylinder turbocharged Weichai engine that delivers high efficiency, ample power reserves, and improved fuel economy while meeting environmental standards.

    GYS10J Single Drum Vibratory Roller / Soil Compactor

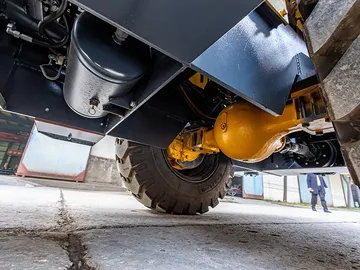

    The transmission system includes a roller-specific gearbox with a synchronizer, delivering high torque output and smoother shifting. The travel brake combines air-assisted hydraulic caliper brakes, while the parking brake uses a reliable drum-type mechanical design for enhanced operational safety.

    GYS10J Single Drum Vibratory Roller / Soil Compactor

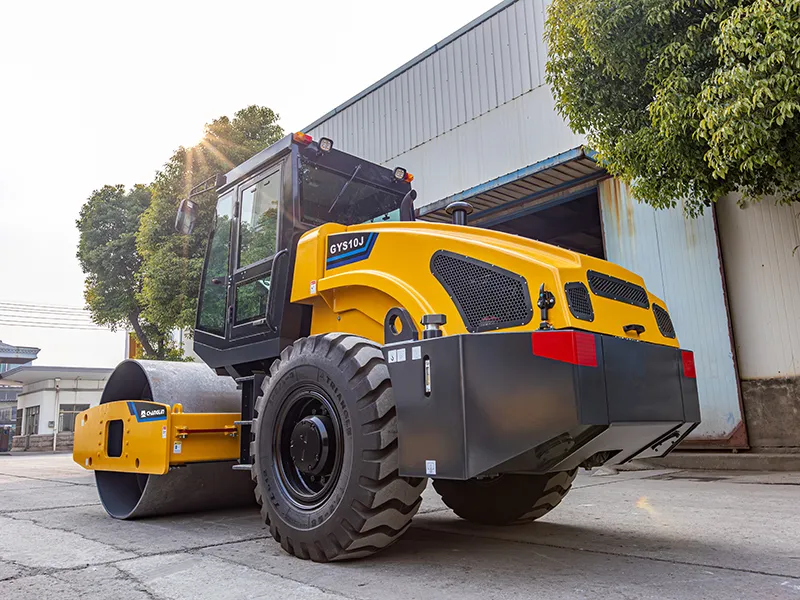

    The rear engine hood opens at a wide angle, making daily maintenance and repair tasks faster and easier to carry out.

    GYS10J Single Drum Vibratory Roller / Soil Compactor

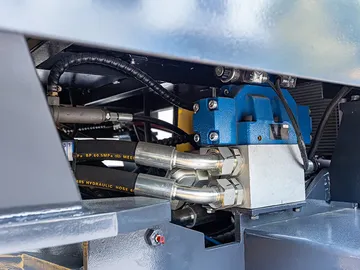

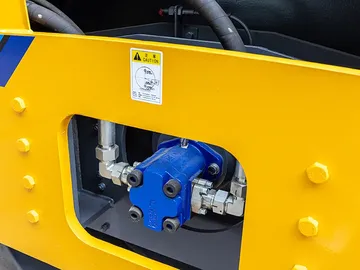

    Fitted with hydraulic components from well-known brands, the machine ensures consistent performance and long-term reliability under demanding conditions.

    GYS10J Single Drum Vibratory Roller / Soil Compactor

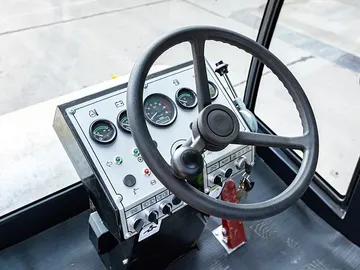

    Comes standard with a fully enclosed cab for operator comfort, with optional heating and air conditioning systems available to suit different working environments.

    Technical Specifications
    • Model GYS10J
    • Operating weight 10000kg
    • Vibratory drum diameter 1430mm
    • Vibratory drum width 1980mm
    • Vibratory frequency 30Hz
    • Vibratory amplitude 1.6/0.8mm
    • Centrifugal force 225/105kN
    • Travel Speed (Forward) 2.0/4.2/8.7km/h
    • Travel Speed (Reverse) 2.0/4.2km/h
    • Min. ground clearance 380mm
    • Wheel base 2900mm
    • Static line pressure 240 N/cm
    • Min. turning radius 5800mm
    • Gradeability 30%
    • Dimensions (L×W×H) 5570×2180×3010mm
    • Engine model WP4G110E221
    • Engine type Inline 4 cylinder, 4 stroke, water cooled
    • Power 82kW
    • Rated speed 2000r/min
    • Fuel tank capacity 240L
    • Hydraulic oil tank capacity 240L
    • Tire 17.5-25
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

    Modern compactors and road rollers are equipped with fuel-efficient engines and smart power management systems. These power control systems regulate engine output according to compaction demands, improving fuel efficiency and lowering long-term operating costs while maintaining performance.

    To maintain consistent compaction on inclined surfaces, our compactors and road rollers are equipped with differential locks and anti-slip control systems that enhance stability. A low center of gravity and wide tires provide better traction, while intelligent systems automatically adjust compaction settings based on the slope gradient to ensure even and reliable performance.

    Single drum rollers are suitable for rough and uneven surfaces like soil and gravel. Their design allows for deep penetration and strong compaction, making them especially effective in preparing subgrades and foundations in construction projects.

    Single drum rollers are suitable for compacting the sub-base or base layers during road construction. However, when it comes to finishing the asphalt surface, double drum rollers are much more effective. Their dual-drum design ensures smoother and more uniform compaction, helping achieve the desired surface finish and structural durability.

    Several elements affect how efficiently a vibratory roller compacts the ground, including soil type, moisture content, and layer thickness. Granular soils such as sand and gravel respond well to vibration, making them easier to compact. In contrast, cohesive soils such as clay may require additional moisture to achieve optimal compaction results.
