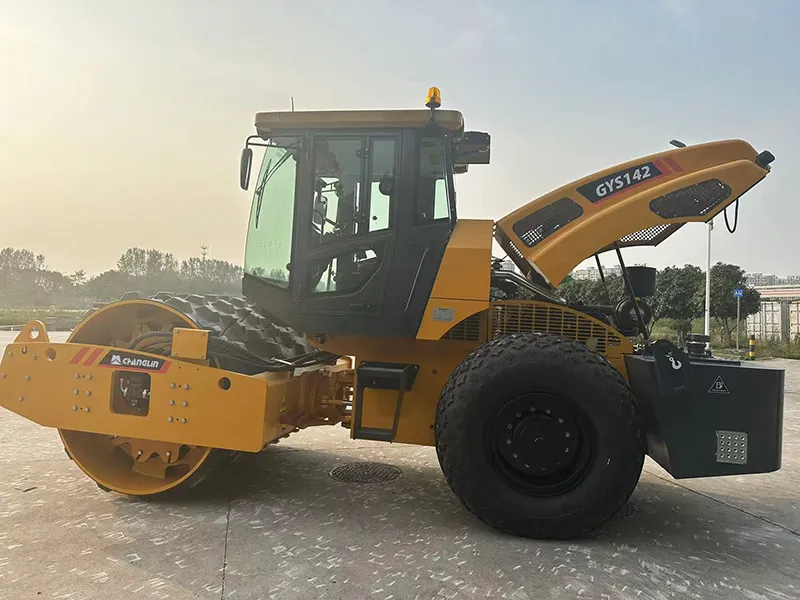

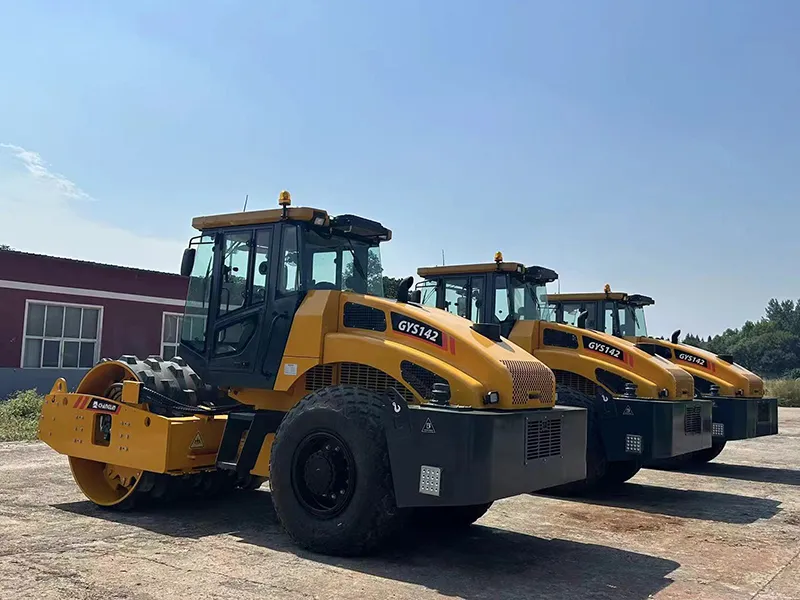

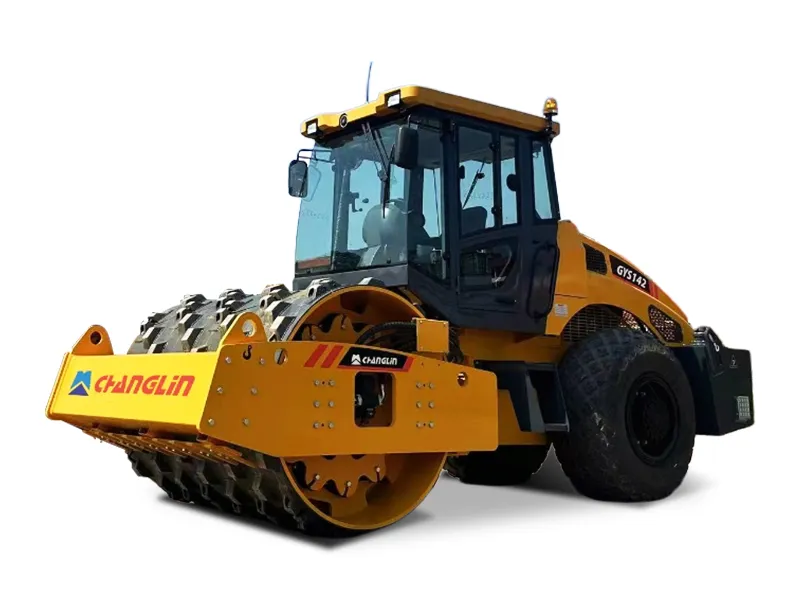

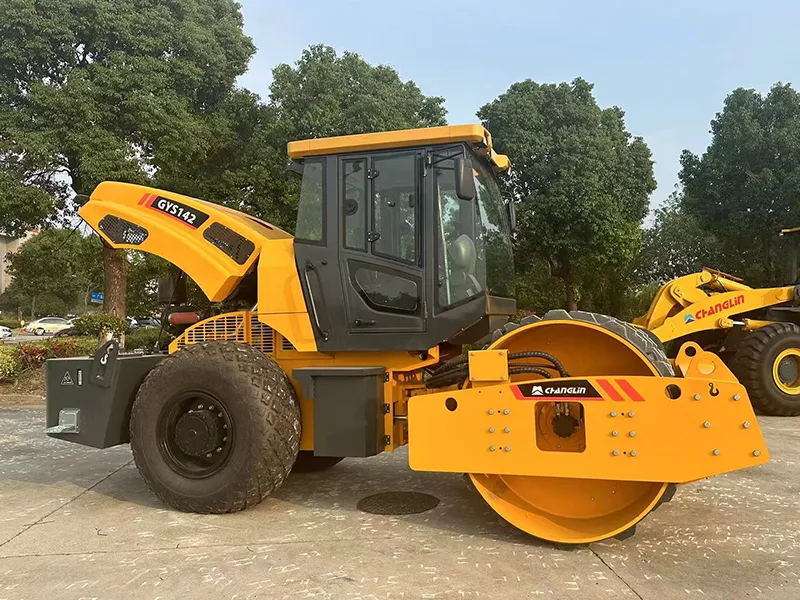

GYS142L Single Drum Vibratory Roller / Soil Compactor

GYS142L Single Drum Vibratory Roller / Soil Compactor
  • GYS142L Single Drum Vibratory Roller / Soil Compactor
  • GYS142L Single Drum Vibratory Roller / Soil Compactor
  • GYS142L Single Drum Vibratory Roller / Soil Compactor
  • GYS142L Single Drum Vibratory Roller / Soil Compactor

    • GYS142L Single Drum Vibratory Roller / Soil Compactor

    Ideal for compacting foundations in large-scale infrastructure projects such as highways, dams, railways, and airports, this single drum vibratory roller is designed to handle non-cohesive and semi-cohesive materials like sand, gravel, crushed stone, and rock fill. The operator’s environment prioritizes comfort and visibility, featuring a three-stage vibration-damping cabin as standard, with optional air conditioning for all-weather usability. The machine is also equipped with LED work lights and an LCD smart dashboard to support efficient operation, even in low-light or nighttime conditions. For improved quality control during compaction, the unit can be optionally fitted with the MOBA intelligent compaction system. This technology monitors key parameters such as compaction level and surface temperature in real time, supporting smarter and more consistent jobsite results.

    • Operating weightOperating weight 14000 kg
    • Vibratory drum diameterVibratory drum diameter 1600 mm
    • Centrifugal forceCentrifugal force 280/180 kN
    Request a Quote
    GYS142L
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    GYS142L Single Drum Vibratory Roller / Soil Compactor

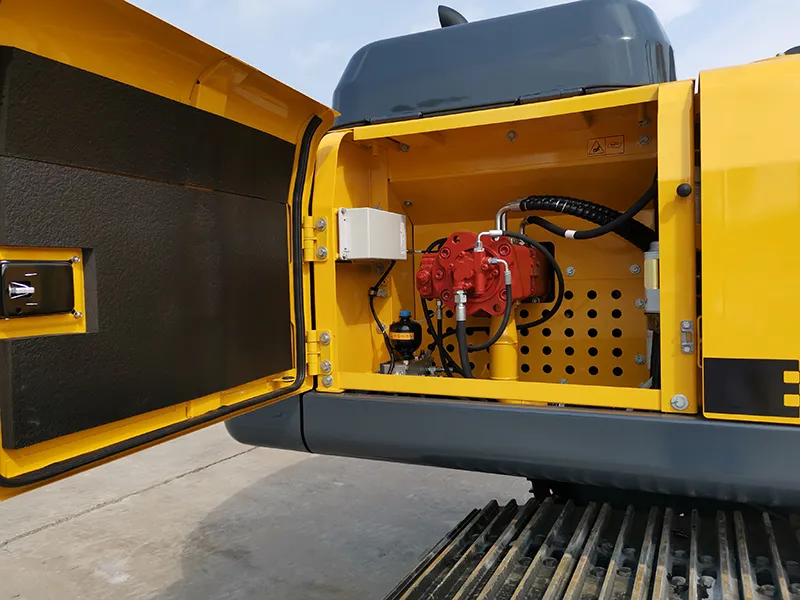

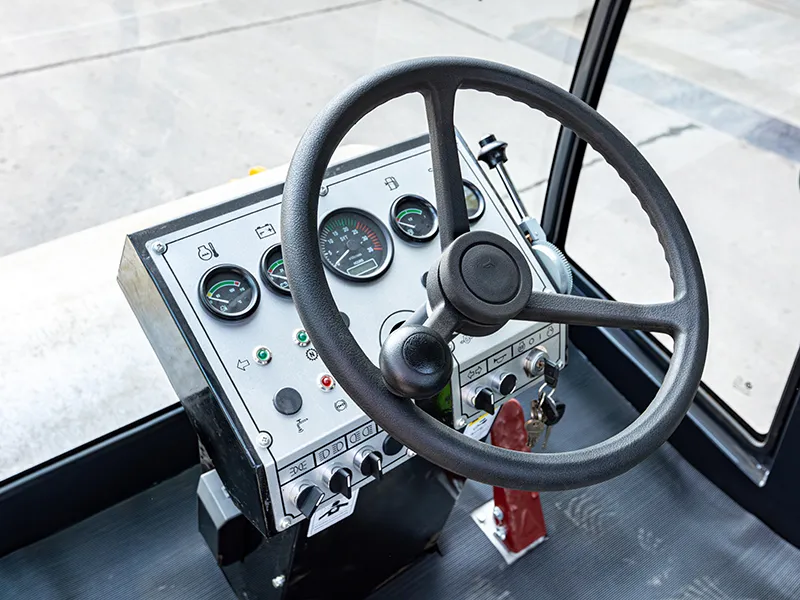

    Equipped with hydraulic drive, steering, and vibration systems, this compactor offers smooth and responsive control through a single lever. The emergency braking system automatically engages when fuel is cut off, ensuring reliable safety.

    GYS142L Single Drum Vibratory Roller / Soil Compactor

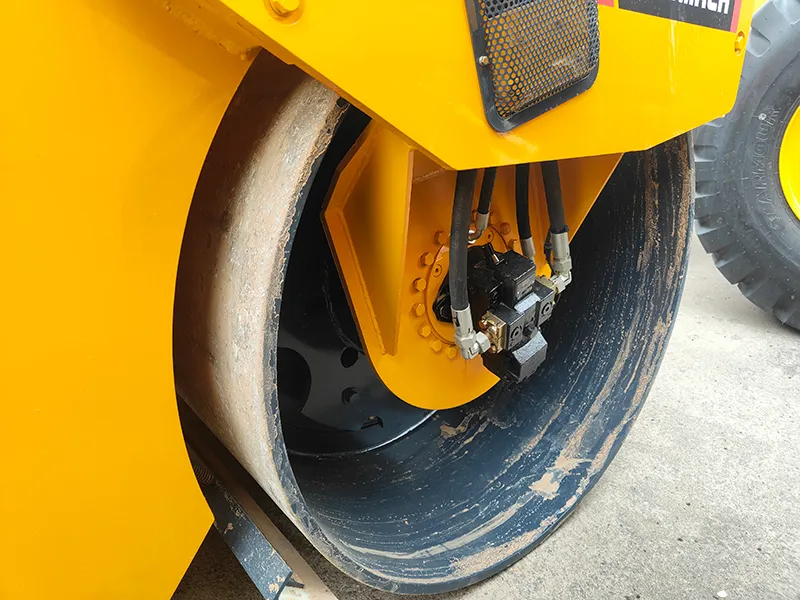

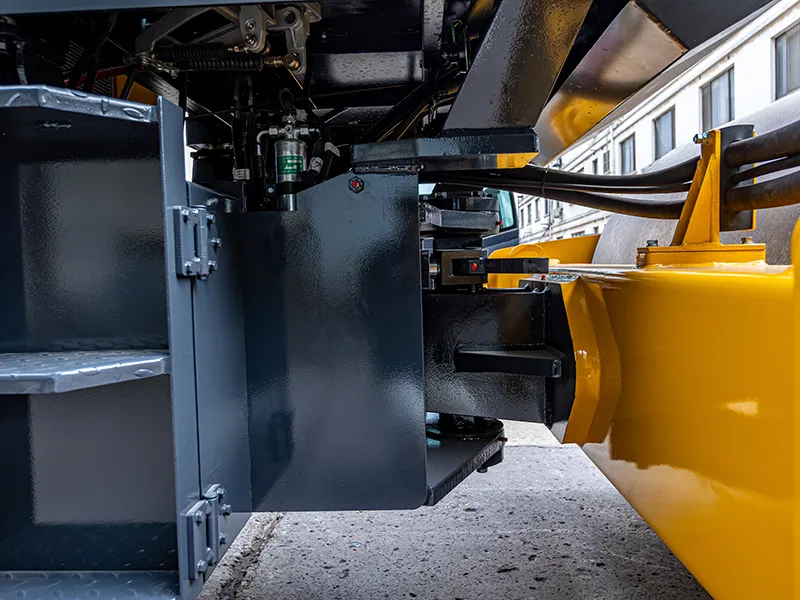

    Delivers strong compaction performance with a 280 kN centrifugal force and 32 Hz vibration frequency. The articulated frame and hydraulic steering allow for flexible movement and easier maneuvering, even on uneven terrain.

    GYS142L Single Drum Vibratory Roller / Soil Compactor

    The travel system uses a closed-circuit piston pump and motor, with dual-drum drive and high/low speed switching. This provides enhanced traction and excellent climbing capability across different jobsite conditions.

    GYS142L Single Drum Vibratory Roller / Soil Compactor

    Designed with a high heat dissipation ratio to meet the demands of high-temperature, high-load, and heavy-duty operations.

    GYS142L Single Drum Vibratory Roller / Soil Compactor

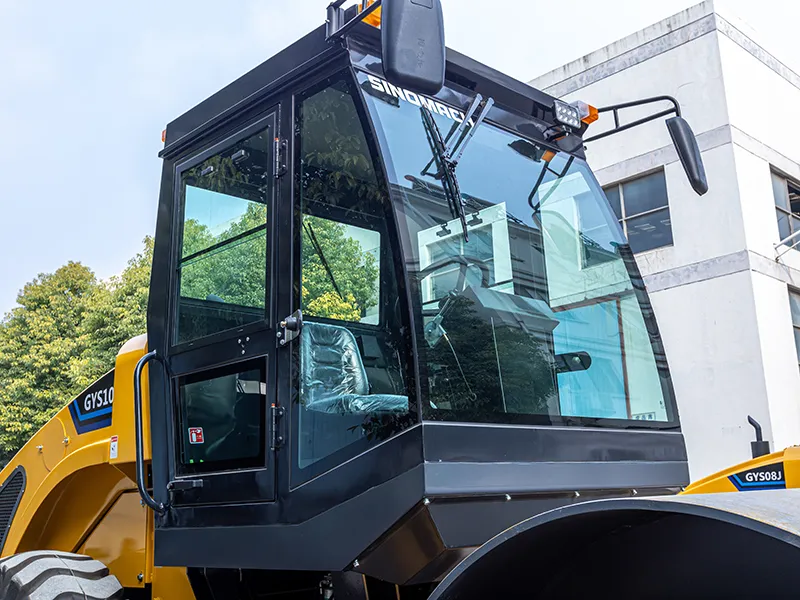

    Comes with an enclosed cabin as standard, with optional air conditioning to improve comfort during long shifts or in extreme weather.

    Technical Specifications
    • Model GYS142L
    • Operating weight 14000kg
    • Vibratory drum diameter 1600mm
    • Vibratory drum width 2100mm
    • Vibratory frequency 28/32Hz
    • Vibratory amplitude 1.7/0.8mm
    • Centrifugal force 280/180kN
    • Travel Speed (Forward) 0-6km/h
    • Travel Speed (Reverse) 0-10km/h
    • Min. ground clearance 450mm
    • Wheel base 3010mm
    • Static line pressure 373N/cm
    • Min. turning radius 7000mm
    • Gradeability 35%
    • Dimensions (L×W×H) 5900×2250×3000mm
    • Engine model Cummins
    • Engine type Inline 4 cylinder, 4 stroke, water cooled
    • Power 110kW
    • Rated speed r/min
    • Fuel tank capacity 300L
    • Hydraulic oil tank capacity 190L
    • Tire 20.5-25-16PR
    After-Sales Support

    We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:

    After-Sales Support
    1

    Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.

    After-Sales Support
    2

    A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.

    After-Sales Support
    3

    Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.

    Single drum rollers are suitable for rough and uneven surfaces like soil and gravel. Their design allows for deep penetration and strong compaction, making them especially effective in preparing subgrades and foundations in construction projects.

    Single drum rollers are suitable for compacting the sub-base or base layers during road construction. However, when it comes to finishing the asphalt surface, double drum rollers are much more effective. Their dual-drum design ensures smoother and more uniform compaction, helping achieve the desired surface finish and structural durability.

    Several elements affect how efficiently a vibratory roller compacts the ground, including soil type, moisture content, and layer thickness. Granular soils such as sand and gravel respond well to vibration, making them easier to compact. In contrast, cohesive soils such as clay may require additional moisture to achieve optimal compaction results.

    A road compactor enhances pavement performance by eliminating voids between material layers, which helps prevent premature failures like cracks or potholes. It increases the structural strength of the road, improves load-bearing capacity, and ensures uniform density throughout the surface. This not only reduces long-term maintenance needs but also provides smoother and safer driving conditions, especially under heavy traffic or harsh weather.

    For wet or clay-heavy soils, vibratory rammers (diesel-powered) are often the most effective solution thanks to their ability to deliver strong impact force in challenging environments. For larger or more demanding jobs, reversible plate compactors are ideal, offering greater weight and dual-direction movement to improve compaction results in muddy or soft terrain. For smaller-scale tasks on slightly damp surfaces, single-direction plate compactors (typically 50–120 kg) can be used to compact sand, base layers, or areas along curbstones efficiently.
