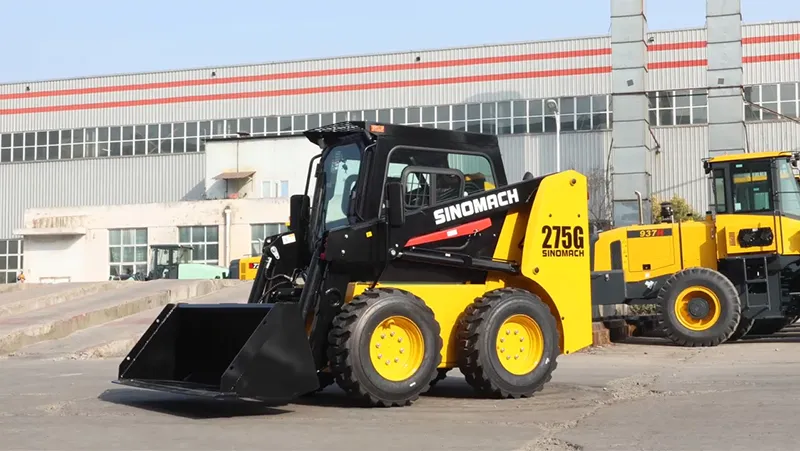

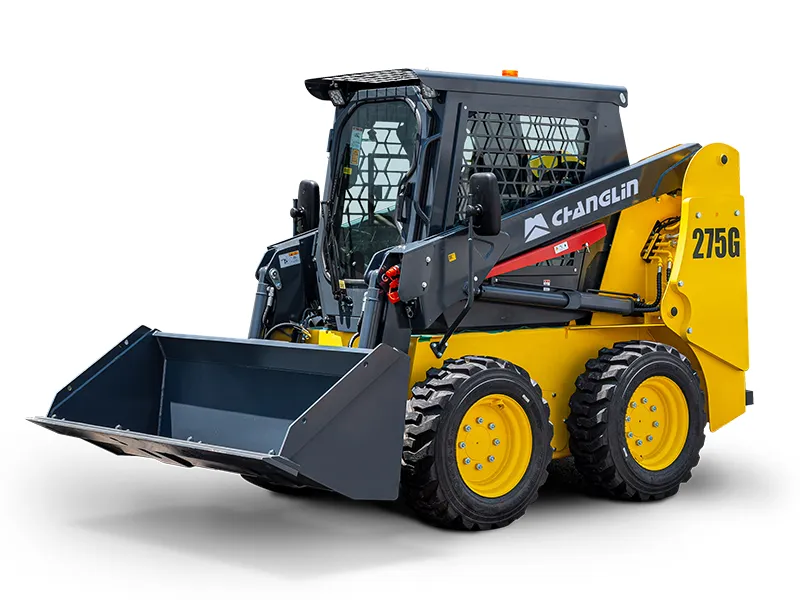

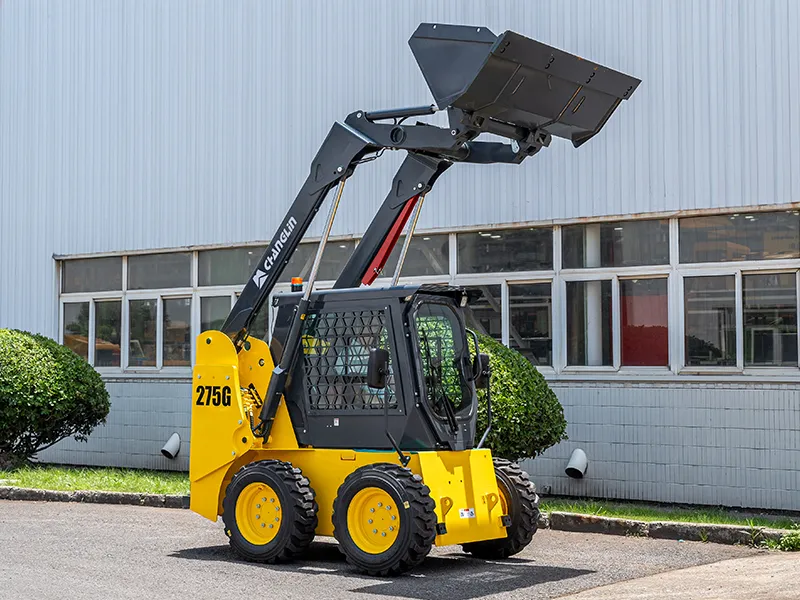

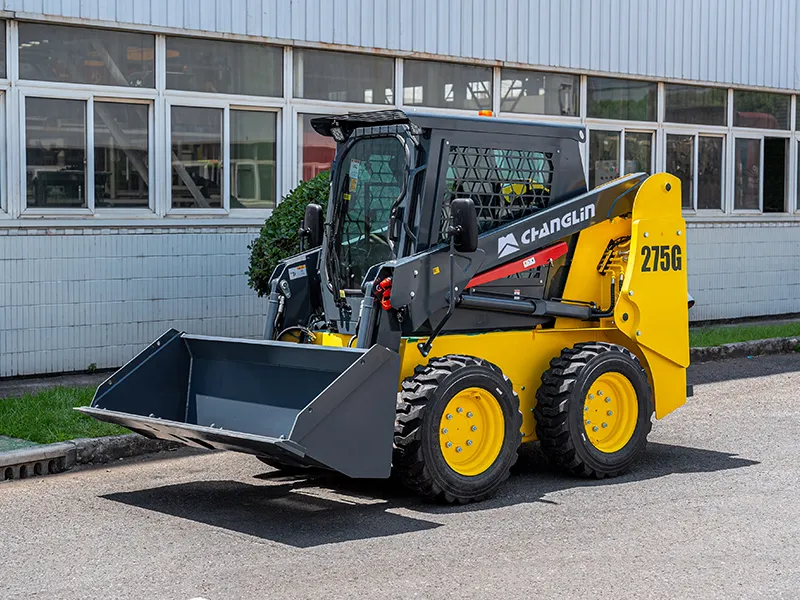

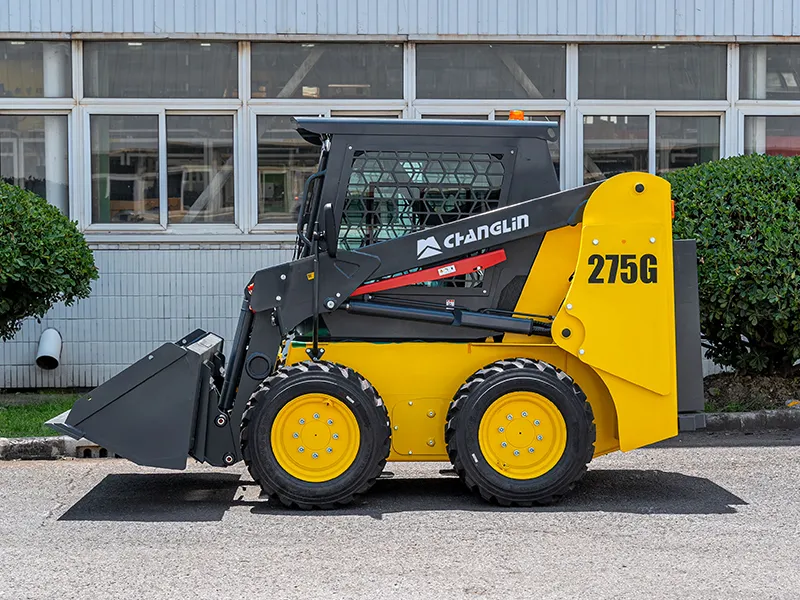

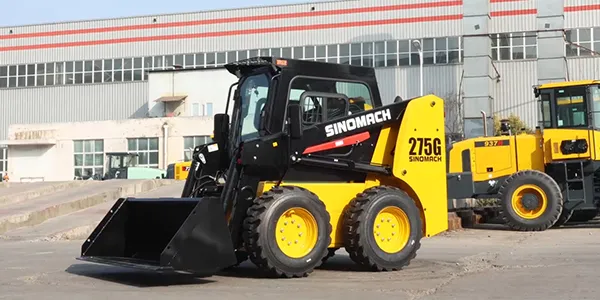

275G Wheeled Skid Steer Loader

275G Wheeled Skid Steer Loader
  • 275G Wheeled Skid Steer Loader
  • 275G Wheeled Skid Steer Loader
  • 275G Wheeled Skid Steer Loader
  • 275G Wheeled Skid Steer Loader
  • 275G Wheeled Skid Steer Loader

    • 275G Wheeled Skid Steer Loader

    This wheeled skid steer loader features a narrower body, extended wheelbase, and higher ground clearance compared to similar models, resulting in a smaller turning radius, stronger overall stability, and better terrain adaptability. Its performance in confined or uneven work environments makes it ideal for demanding job sites.

    • Dimensions (L×W×H)Dimensions (L×W×H) 3460×1820×2000 mm
    • Operating weightOperating weight 3500 kg
    • Rated powerRated power 55 kW/2500 rpm
    Request a Quote
    Product Brochure
    275G Wheeled Skid Steer Loader
    275G
    275G Wheeled Skid Steer Loader
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    275G Wheeled Skid Steer Loader

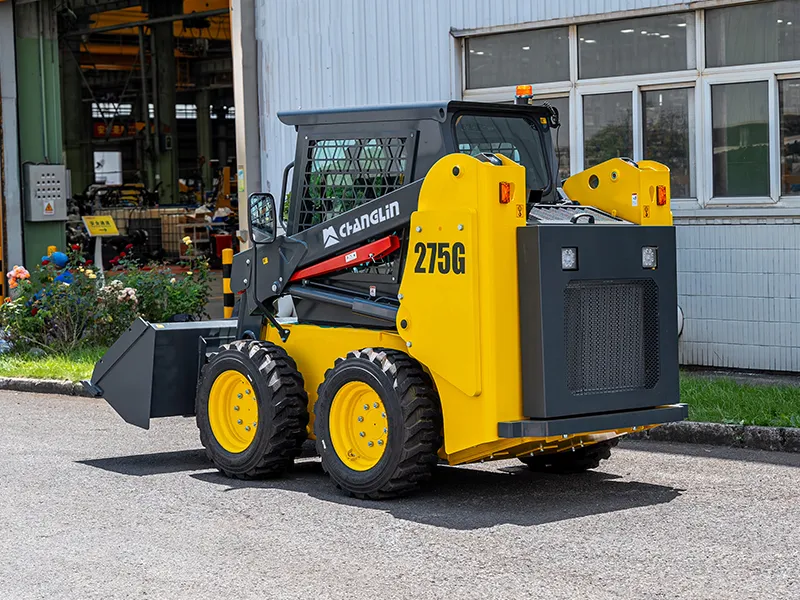

    Optimized chassis design
    The combination of a narrow frame, long wheelbase, and high undercarriage enhances machine balance and maneuverability, with a smaller turning radius for efficient operation in tight spaces.

    275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader

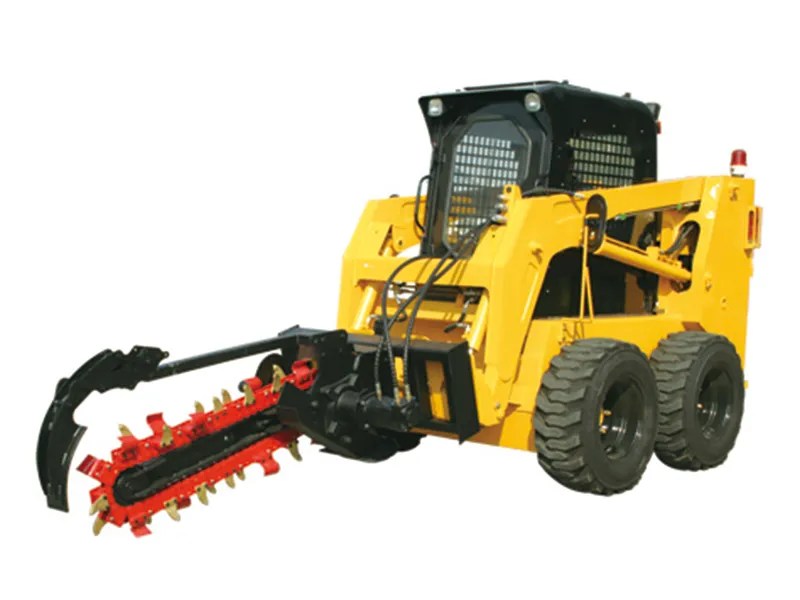

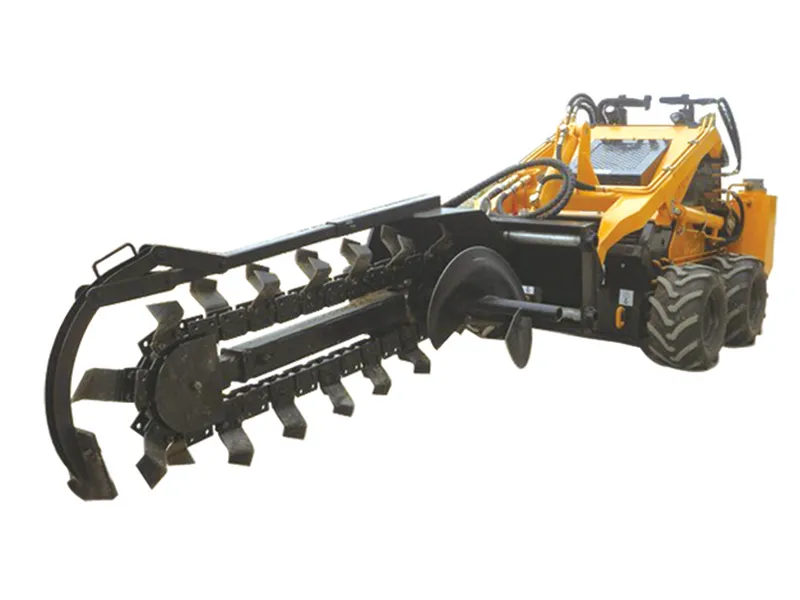

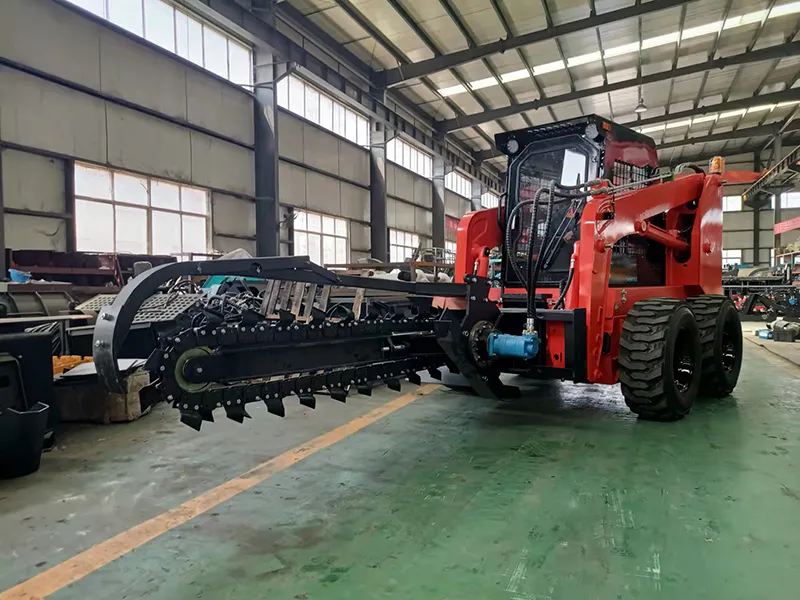

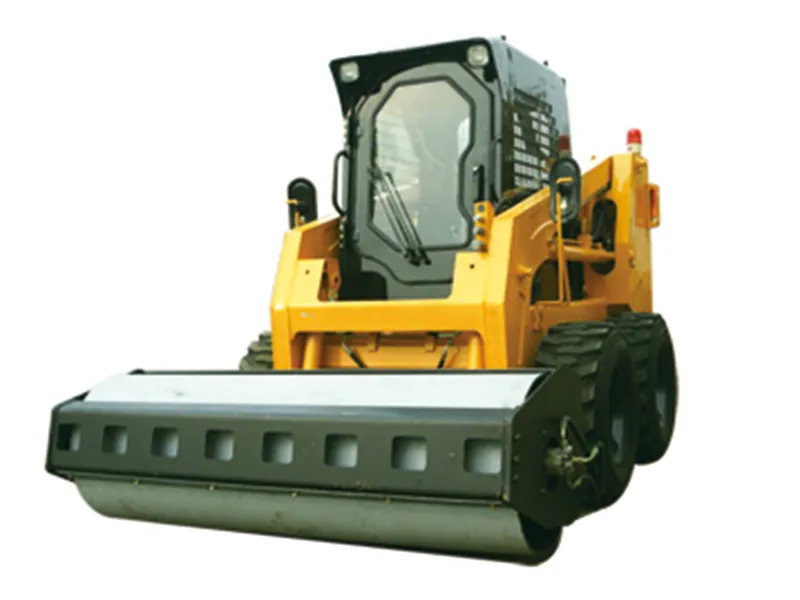

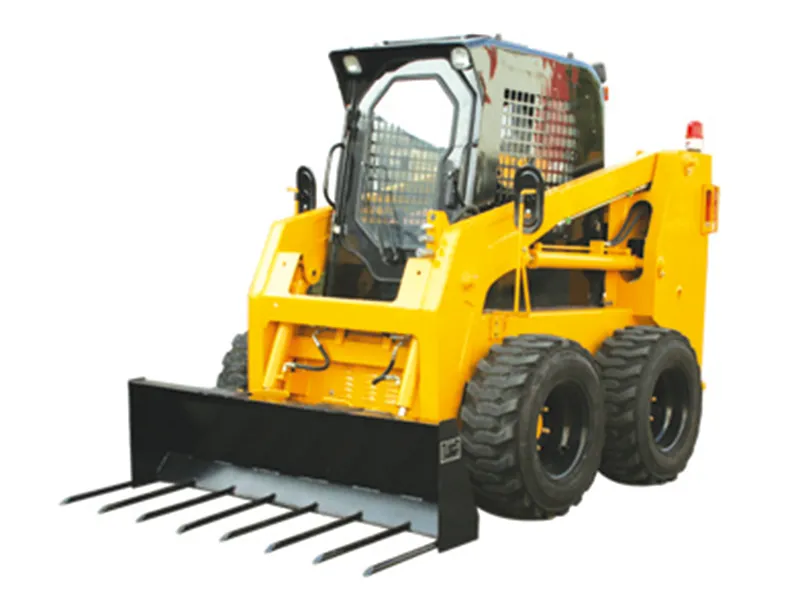

    Quick-attach system with broad compatibility
    Equipped with an industry-standard quick coupler and hydraulic connectors compatible with most mainstream attachments, enabling fast and efficient tool changes.

    275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader 275G Wheeled Skid Steer Loader

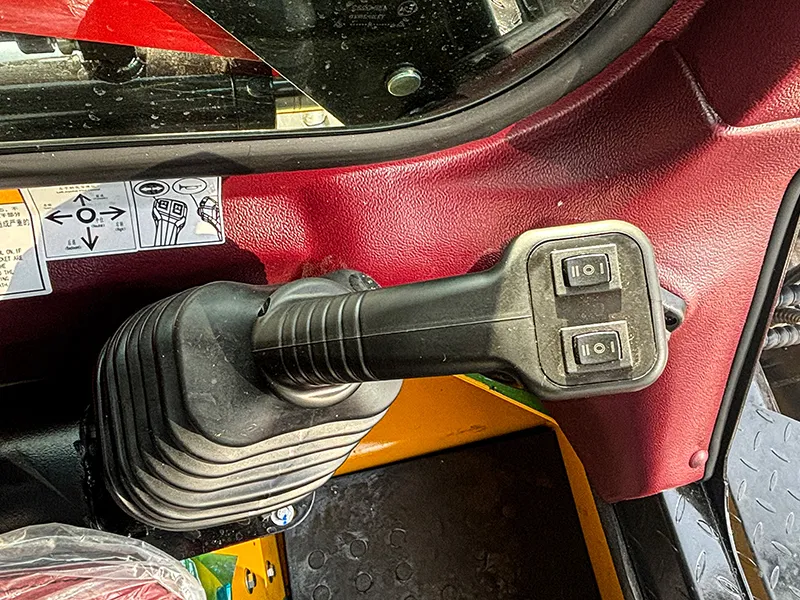

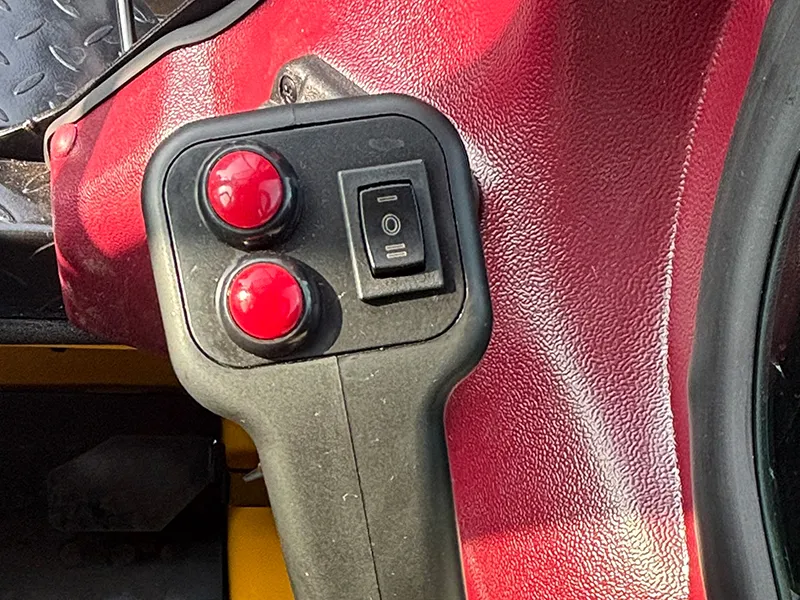

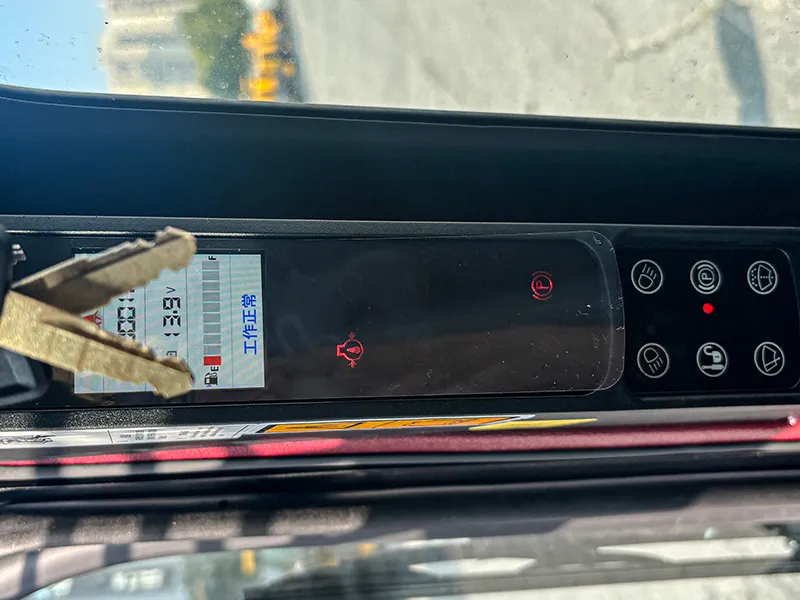

    Safe and intuitive hydraulic control system
    The hydraulic operation system integrates electric interlock and self-locking features to prevent accidental engagement and ensure safer machine handling.

    275G Wheeled Skid Steer Loader

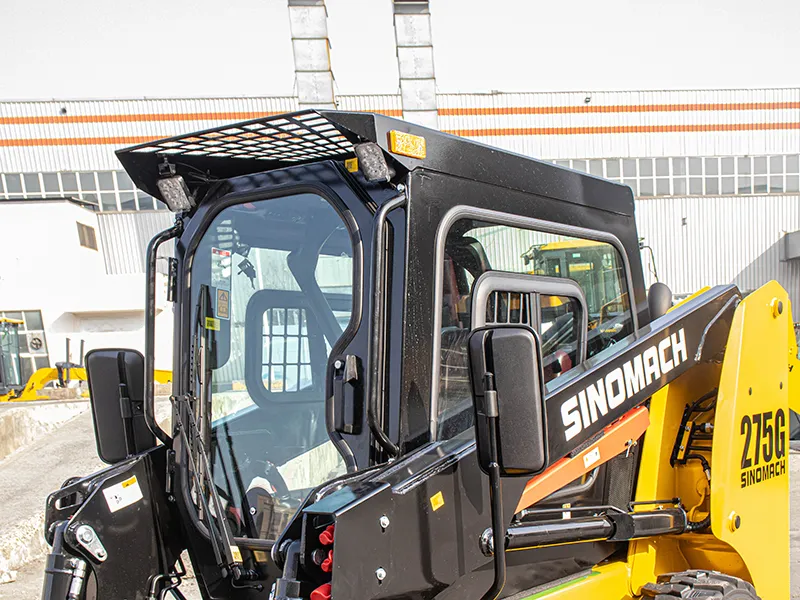

    FOPS/ROPS-compliant cab for enhanced operator comfort
    Built with a high-strength cab that meets international rollover and falling object protection standards, offering a more spacious and comfortable working environment.

    Technical Specifications

    General

    • Operating weight 3500kg
    • Rated load 1200kg
    • Bucket capacity 0.54m³
    • Tipping load 2460kg
    • Breakout force 28.06kN
    • Traction force 25.9kN
    • Dimensions (L×W×H) 3460×1820×2000mm

    Engine

    • Engine model Xinchai
    • Rated power 55kW/2500rpm
    • Displacement 3.168L
    • Fuel consumption 15.9L
    • Stroke 98mm
    • Bore 105mm
    • Emission NationⅡ

    Hydraulic System

    • Hydraulic flow 91L/min·2600rpm
    • Operation method Pilot operation
    • Hydraulic pressure 21MPa
    • Max. hydraulic flow 135L/min·2600rpm

    Drivetrain

    • Travel speed F&R 11.5km/h
    • Tire 10-16.5NHS

    Accumulator

    • Voltage 12V
    • Capacity 120Ah

    Tank Capacity

    • Chain box 2×9L
    • Cooling system 12L
    • Engine crankcase 9L
    • Fuel tank 91L
    • Hydraulic tank 65L
