Dimensions (L×W×H) 3460×1820×2000 mm
Operating weight 3500 kg
Rated load 1200 kg

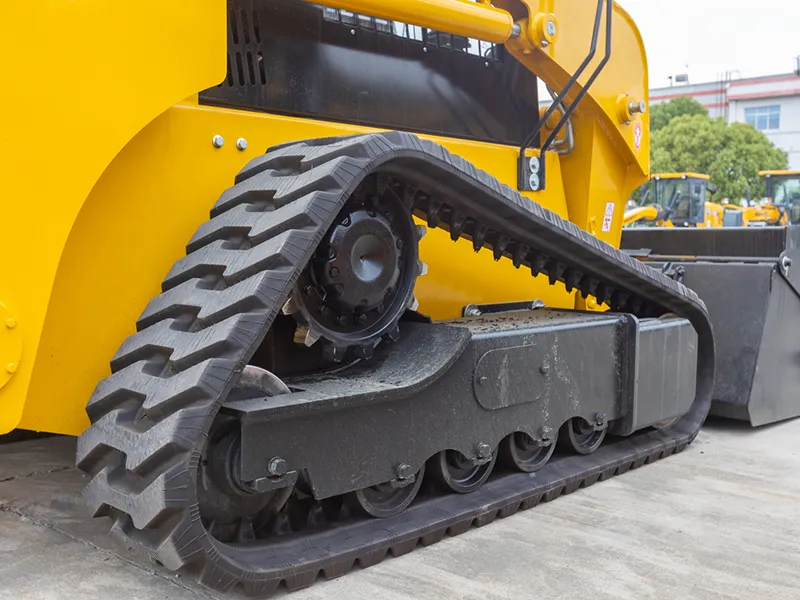

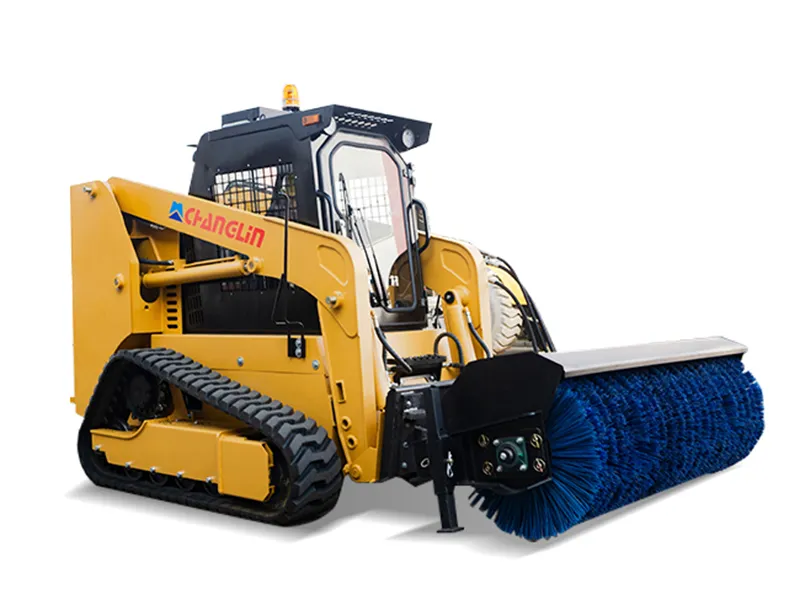

Enhanced terrain adaptability with track system
The crawler chassis ensures greater stability and traction in loose or sloped conditions. Its wide ground contact minimizes sinkage and allows smooth turns with minimal ground disruption, making it ideal for challenging surfaces and sensitive job sites.

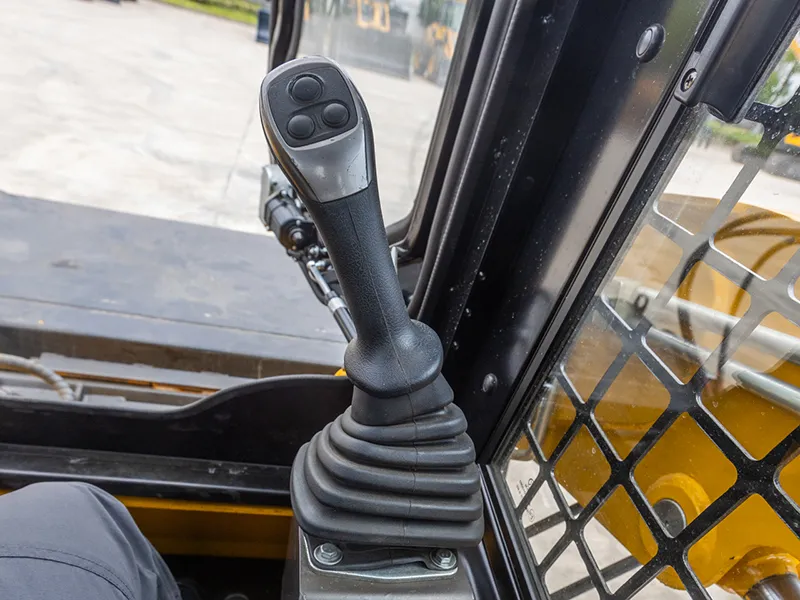

Safe hydraulic control system with electronic interlock
The operator control system includes electric self-locking and interlocking features to prevent accidental engagement and ensure safe, precise operation.

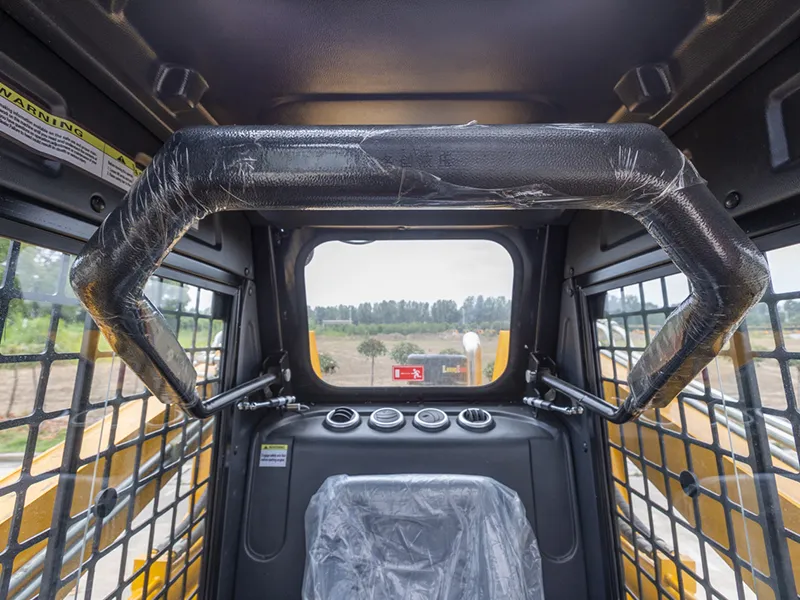

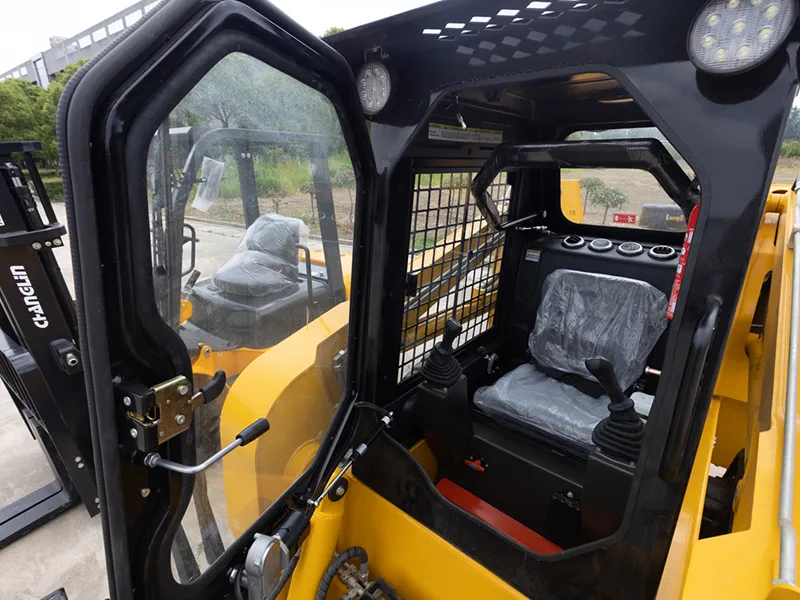

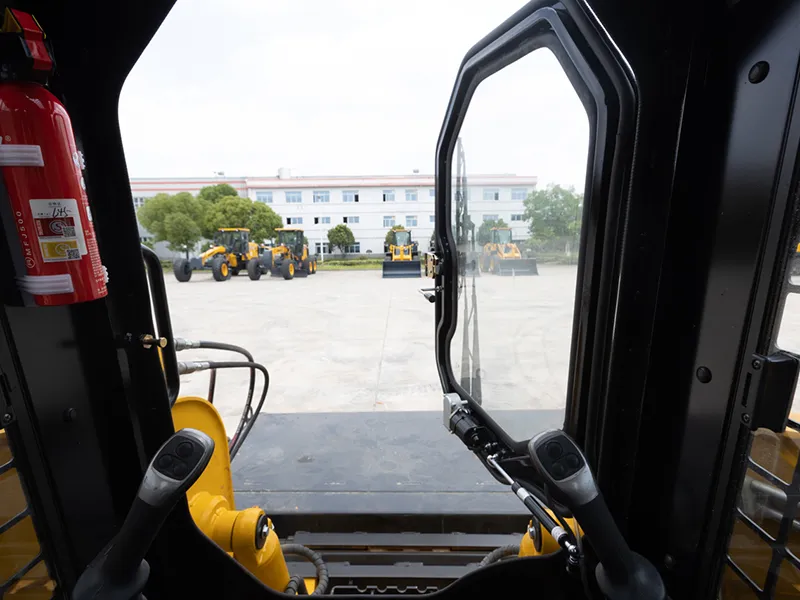

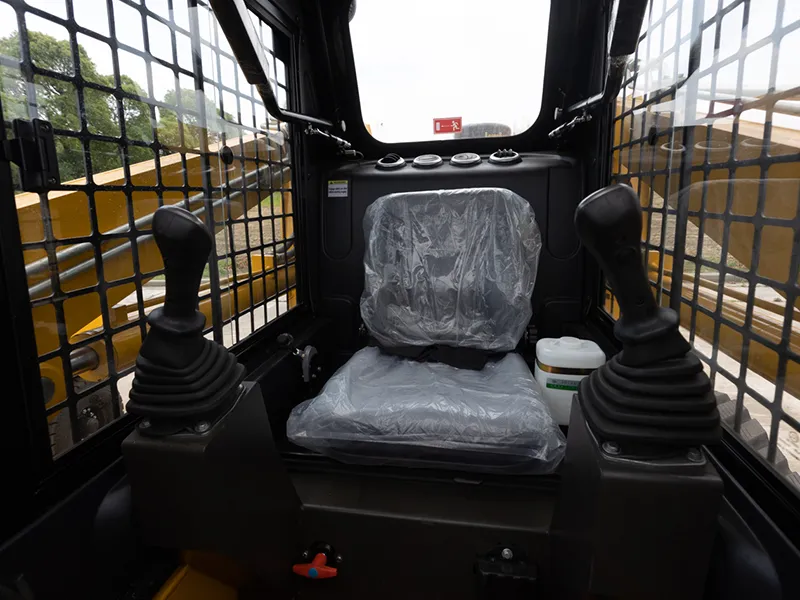

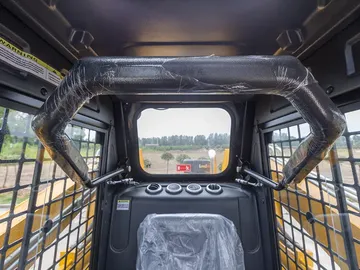

Spacious FOPS/ROPS-certified cab
The cab is built to international safety standards for rollover and falling object protection. It offers ample space and enhanced comfort for long working hours.

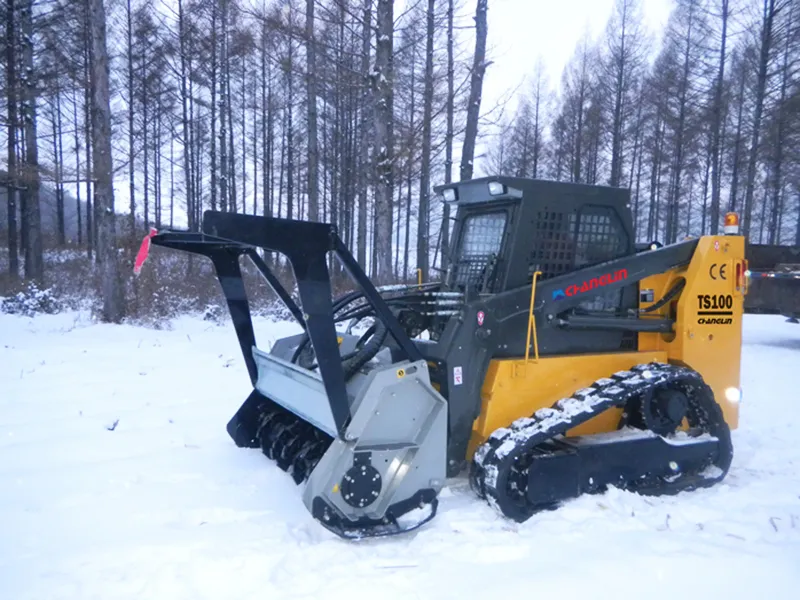

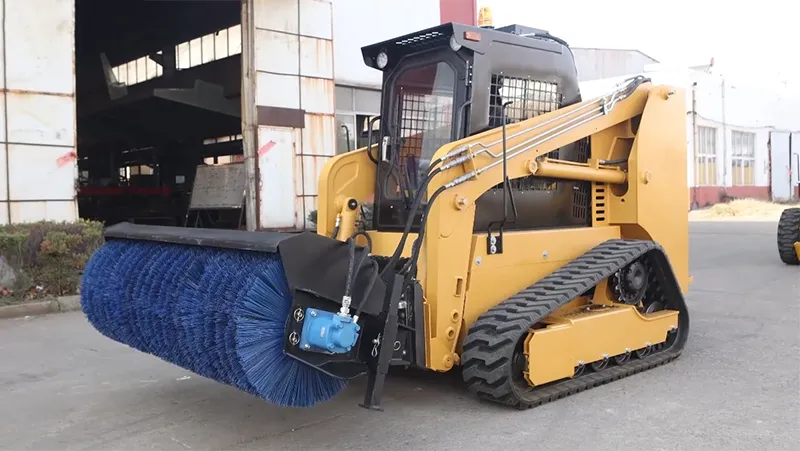

Universal quick-attach system for multiple attachments
Equipped with an international-standard quick coupler and hydraulic connectors compatible with most manufacturers' tools for efficient material loading and transport.

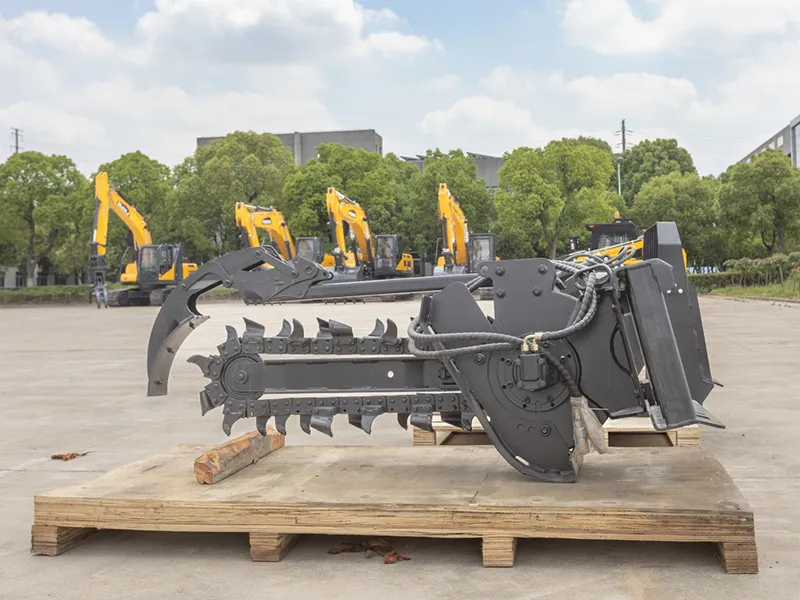

Trenchers (for trenching and slot cutting)

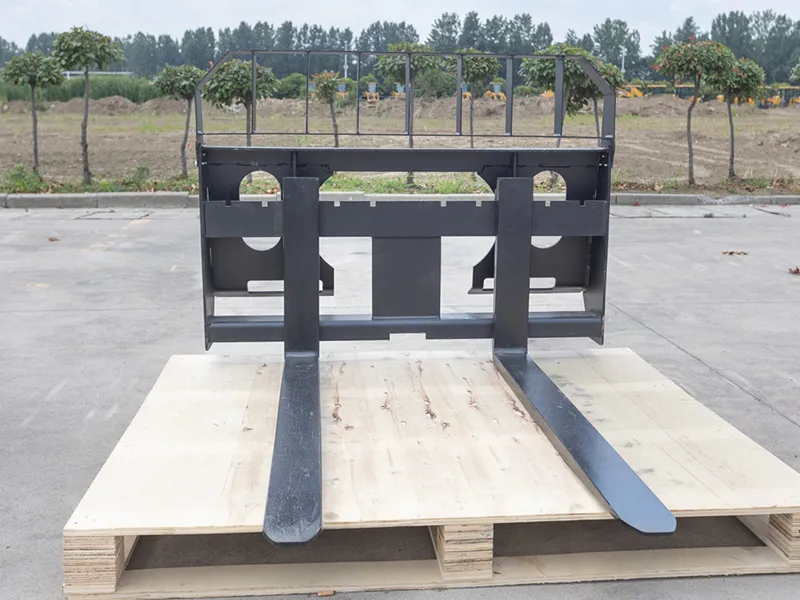

Pallet forks (for material handling tasks)

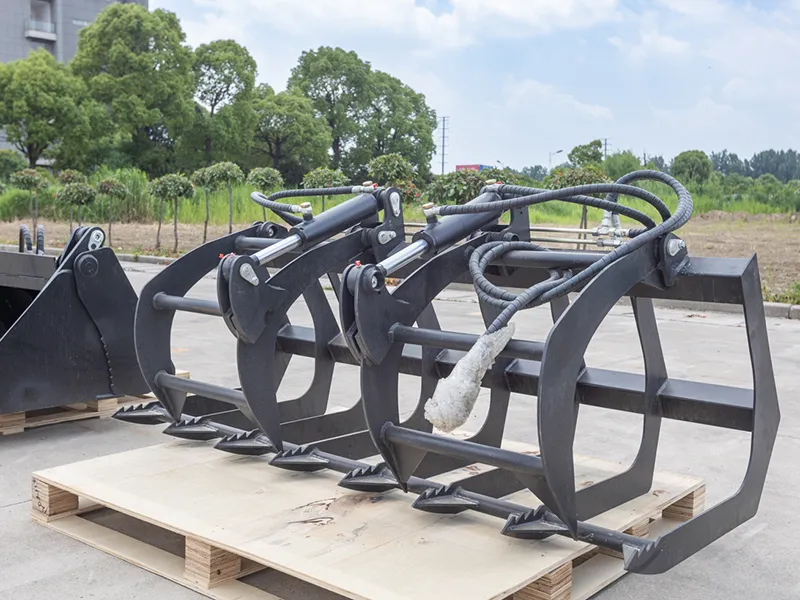

Grapple buckets (for picking up loose materials such as forage, straw, silage, and branches)

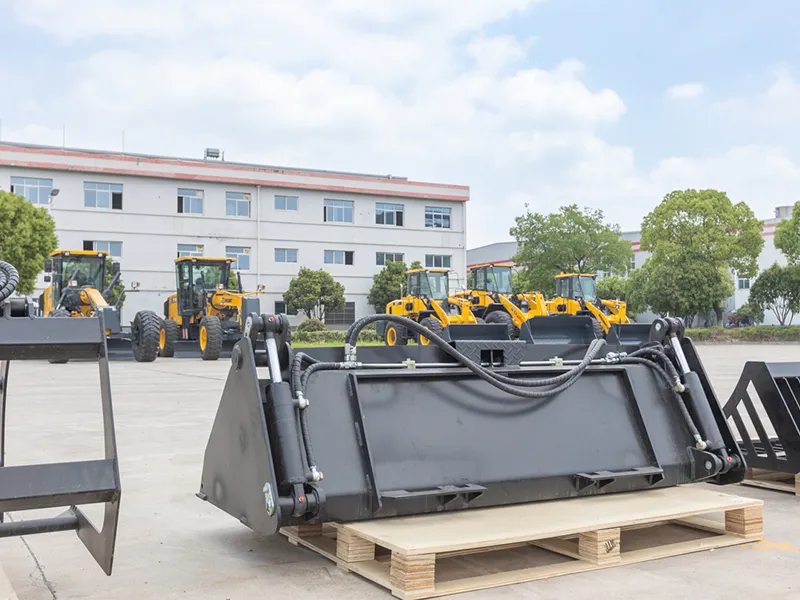

Standard buckets (for general material loading and transport)

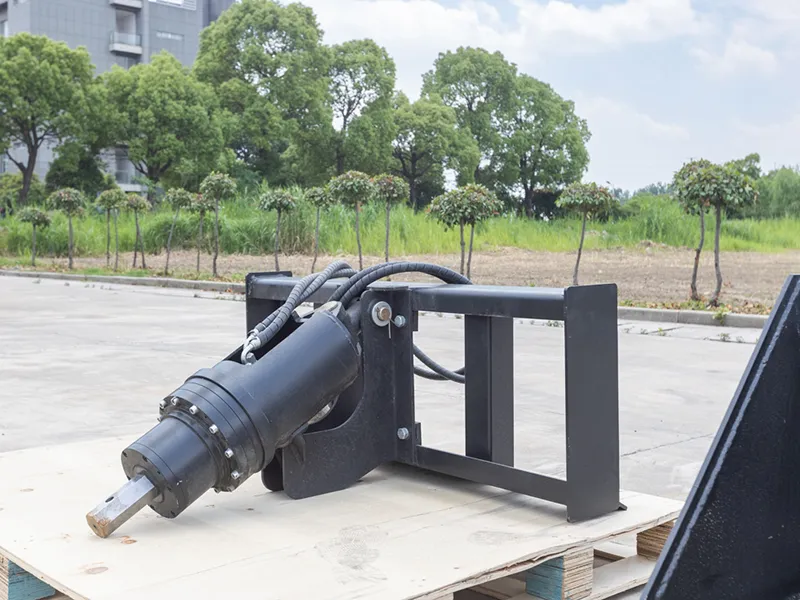

Post drivers (used to drive posts into the ground for foundations, fence installations, and temporary structural reinforcement)

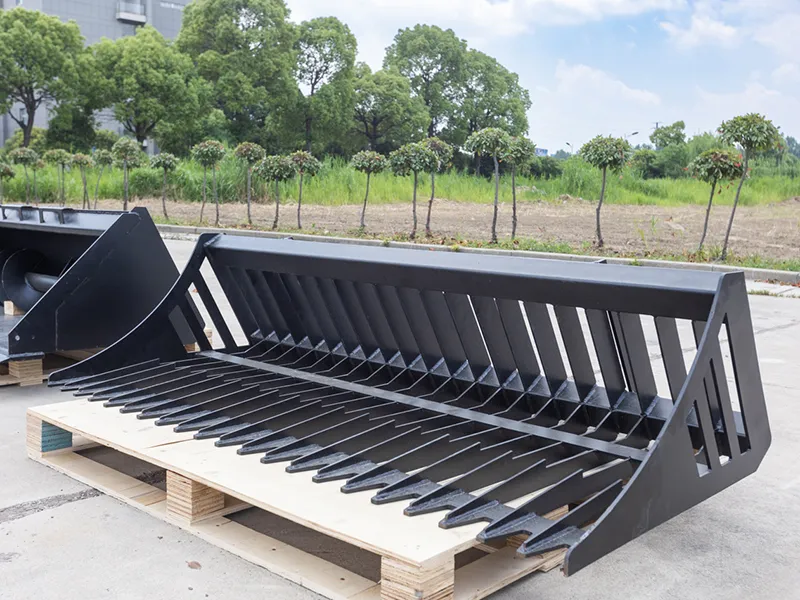

Screening buckets (for loading and screening operations, enabling quick separation of mixed materials)
Overall Dimensions
- Model
TS65 TS100 - Length (with bucket on ground) 3500mm3700mm
- Width (to outside of wheels) 1830mm2030mm
- Bucket width 1890mm2050mm
- Height (to the top of the cab) 2160mm2160mm
- Model
TS65 TS100 - Wheel base 1500mm1500mm
- Track width 1462mm1654mm
- Min. ground clearance 205mm205mm
Performance
- Model
TS65 TS100 - Rated load 1000kg1200kg
- Operating weight 3800kg4500kg
- Rated bucket capacity 0.5m³0.6m³
- Max. breakout force 27kN30kN
- Static tipping load >20kN24kN
- Max. dump clearance 2350mm2550mm
- Dump reach 700mm700mm
- Dump angle at any position >4040
- Angle of departure 30°30°
- Digging depth (with bucket bottom horizontal) 0mm0mm
- Model
TS65 TS100 - Min. turning radius (Outside of bucket) 2230mm2430mm
- Min. turning radius (Outside of front wheel) 2010mm2200mm
- Min. turning radius (Outside of frame tail) 1714mm1742mm
- Lifting time of bucket ≤4.2sec.≤4.2sec.
- Lowering time of bucket ≤2.5sec.≤2.5sec.
- Dumping time ≤2.6sec.≤2.6sec.
- Travel speed (Forward (1 gear)) 0-12km/h0-12km/h
- Travel speed (Reverse (1 gear)) 0-12km/h0-12km/h
