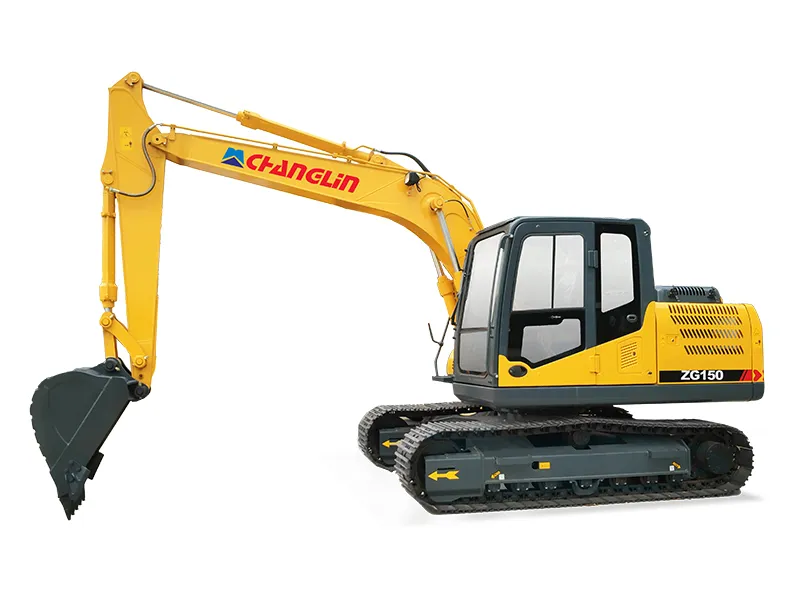

Operating weight 13890 kg
Rated bucket capacity 0.6 m³
Overall length 7762 mm
Rated power 86kW (115PS)@2220RPM

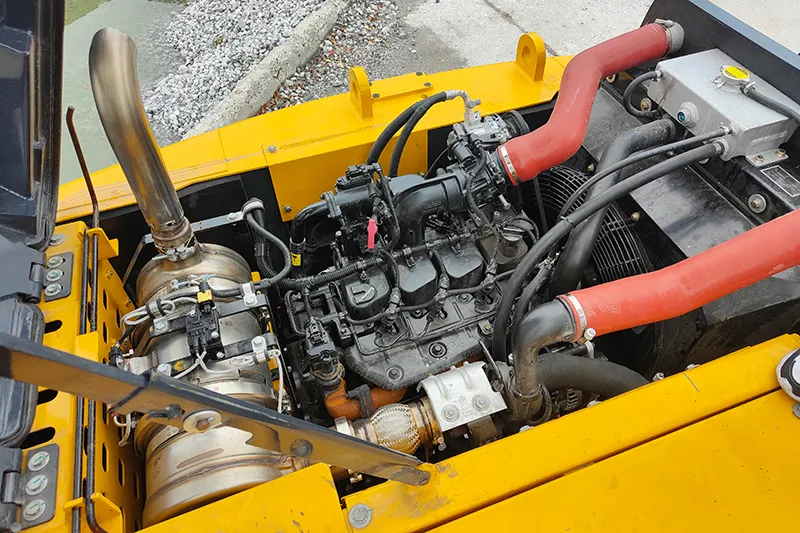

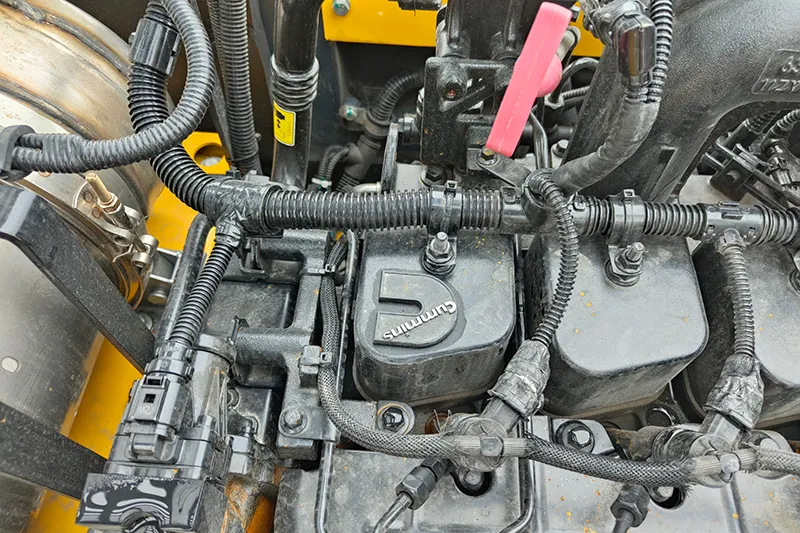

Uses a Cummins engine known for its reliability and strong torque output. It delivers up to 86 kW of power while keeping fuel consumption around 17.8 L/h, making it efficient even during demanding tasks.

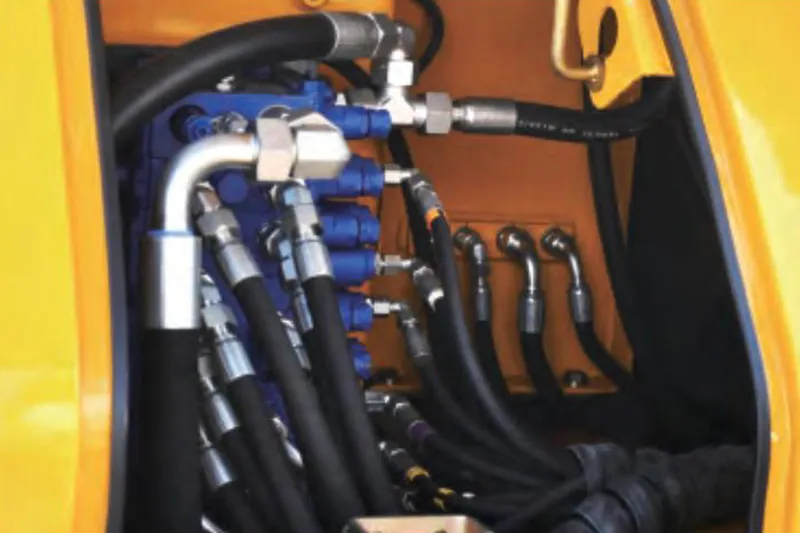

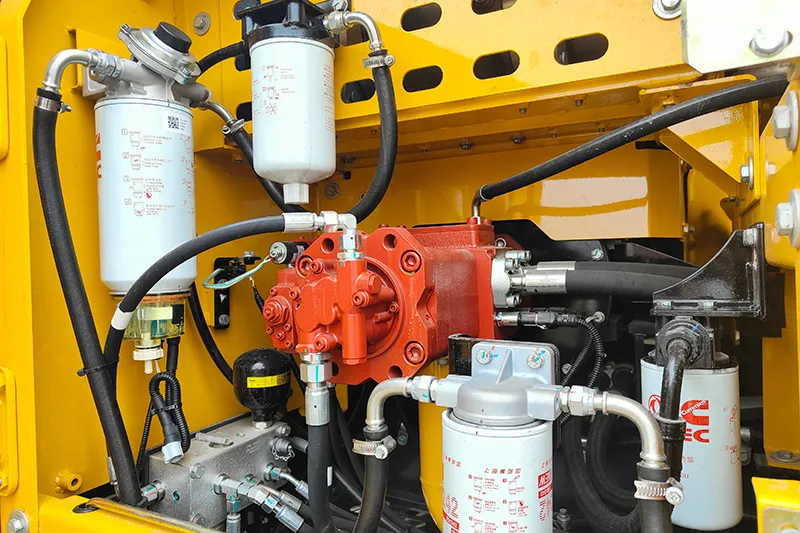

Fitted with a redesigned hydraulic system from Hengli, optimized for smoother control and better performance. The main pump handles up to 250 L/min, with balanced pressure distribution, 34.3 MPa for travel, 27 MPa for swing, ensuring fluid multi-function operations.

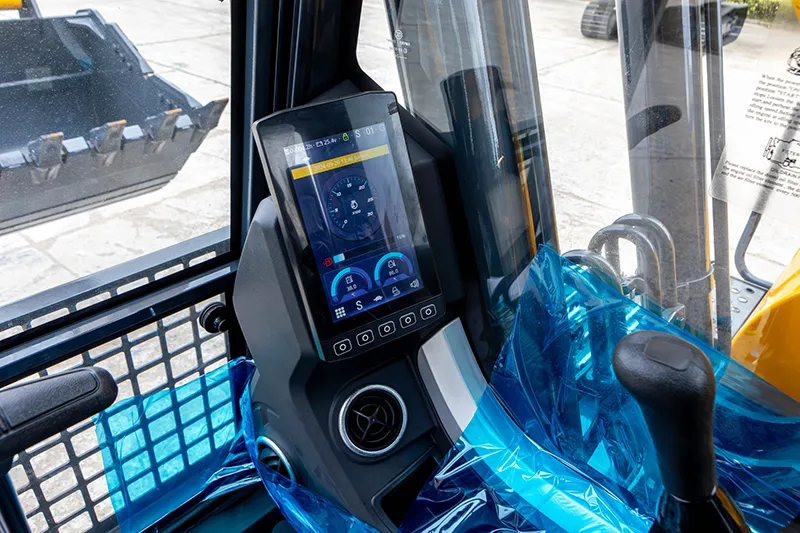

Includes an intelligent monitoring system that actively tracks performance, detects faults, and reminds operators about maintenance, helping reduce downtime and improve overall safety.
Enhanced digging force thanks to larger hydraulic cylinders and smart structural layout. It features an auto-boost function that increases power when under load. The bucket breakout force reaches 100 kN, and the arm digging force hits 68 kN.

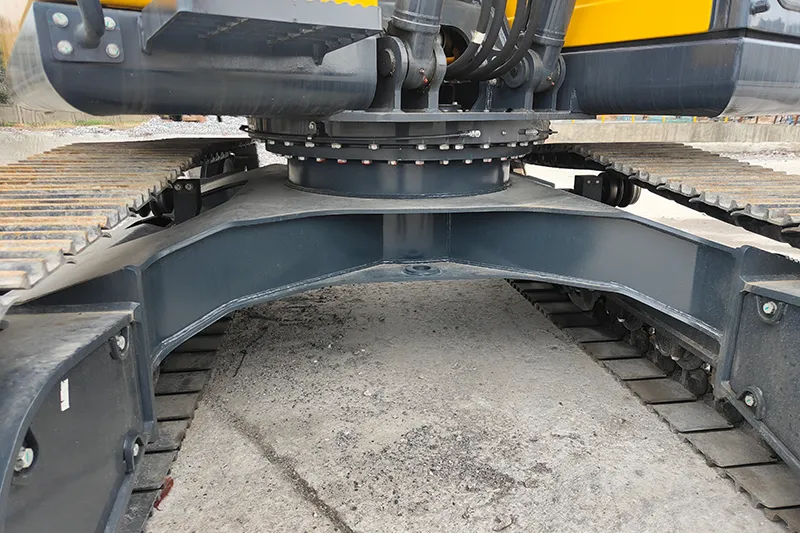

Reinforced with a heavy-duty X-frame and high-strength side beams, plus reliable carrier and track rollers, this machine is designed to handle rough terrain and absorb the stress of high-impact work.
Runs on a load-sensing hydraulic system that keeps power delivery consistent and responsive, adapting to changing job site demands while optimizing fuel efficiency.
Dimensions
- Operating weight 13890kg
- Rated bucket capacity 0.6m³
- Overall length 7762mm
- Overall width (standard track shoe) 2510mm
- Overall height 2983mm
- Turntable width 2510mm
- Cabin height 2825mm
- Ground clearance of counterweight 915mm
- Engine cover height 2243mm
- Min. ground clearance 416mm
- Tail length 3205mm
- Turning radius of turnable 2306mm
- Wheel base of track shoe 4030mm
- Undercarriage length 3010mm
- Undercarriage width 2490mm
- Track shoe gauge 1990mm
- Standard track shoe width 500mm
Performance
- Max. traction 122 kN
- Travelling speed (H/L) 5.9/3.4 km/hr
- Swing speed 13rpm
- Gradeability 35 (70%)
- Ground pressure 0.423kgf/cm²
Working Range
- Max. digging radius 8335mm
- Max. digging radius at ground level 8203mm
- Max. digging depth 5491mm
- Max. digging depth at ground level 5288mm
- Max. vertical digging depth 4826mm
- Max. digging height 8679mm
- Max. dumping height 6174mm
- Min. front swing radius 2605mm
- Bucket digging force 100kN
- Stick digging force 68kN
Engine
- Model Cummins
- Type 4-cylinder in-line, four-stroke turbocharger
- Emission Tier III
- Displacement 3.76L
- Rated power 86kW (115PS)@2220RPM
- Max. torque 470N.m@1400rpm
