Operating weight 37300 kg
Rated bucket capacity 1.8 m³
Overall length 11280 mm
Rated power 214kW@2100RPM

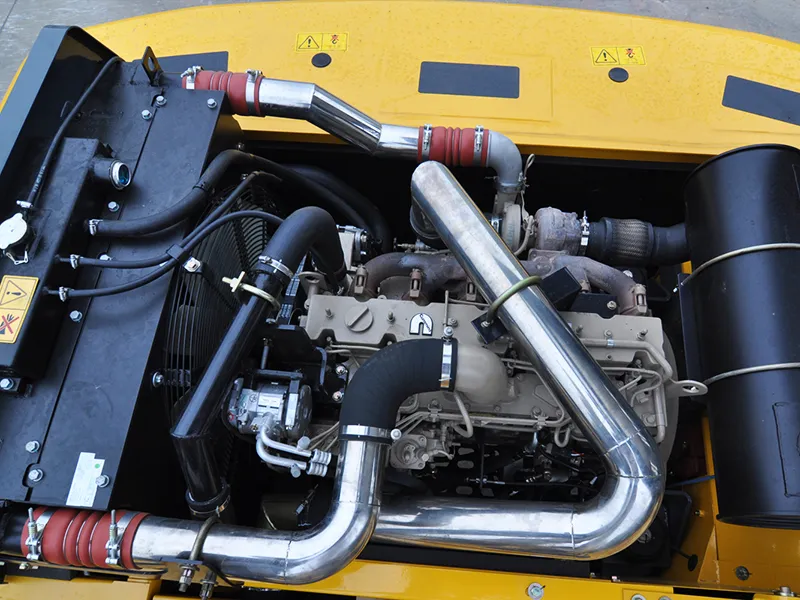

Equipped with a 214 kW Cummins electronic injection engine compliant with Tier III emissions standards, this crawler excavator delivers high torque output, reliable heavy-duty performance, and fuel consumption as low as 28.8 L/h.

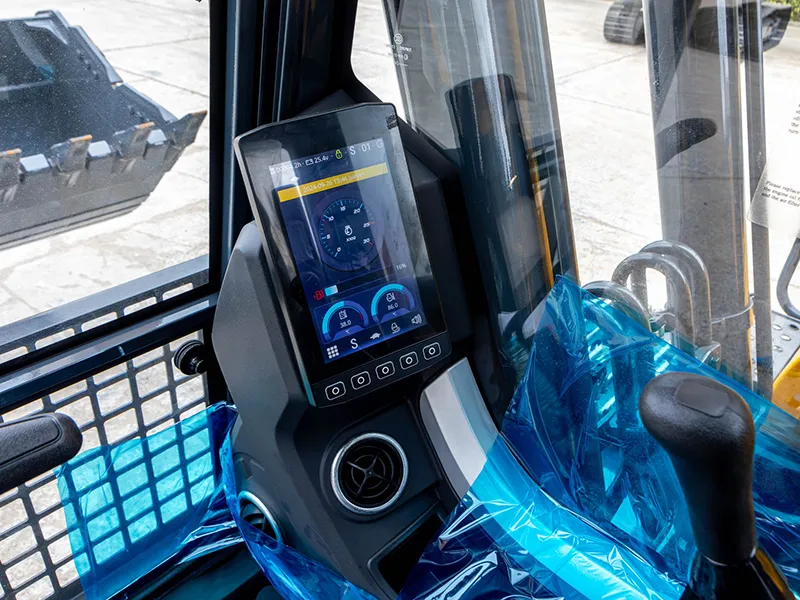

The intelligent monitoring system enables real-time fault diagnostics, maintenance reminders, and performance alerts to support safe and efficient operation on tough job sites.

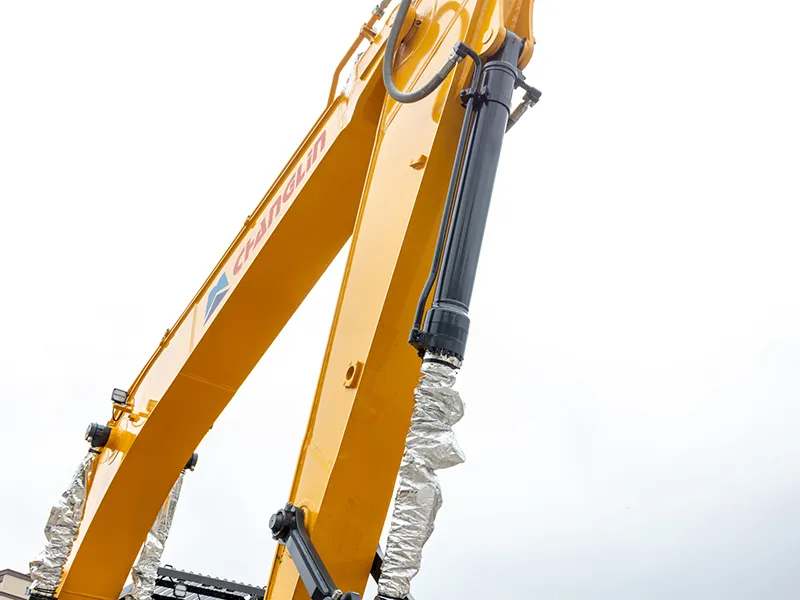

Optimized large-diameter hydraulic cylinders and reinforced joints enhance digging force significantly. With an automatic boost function, the bucket breakout force reaches up to 240 kN, and the arm up to 214 kN under demanding loads.

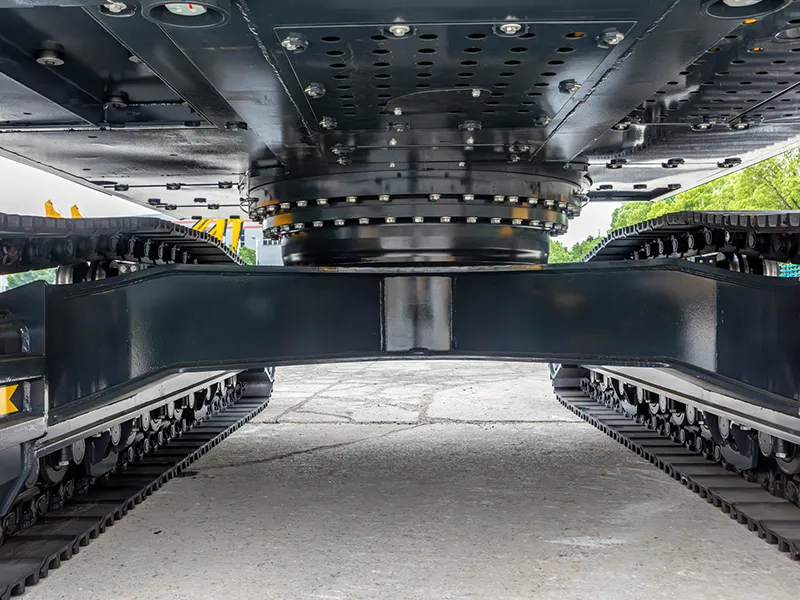

Reinforced box-type side beams and an X-frame undercarriage ensure strong structural integrity. High-reliability track rollers and carrier rollers withstand impact from extreme conditions.

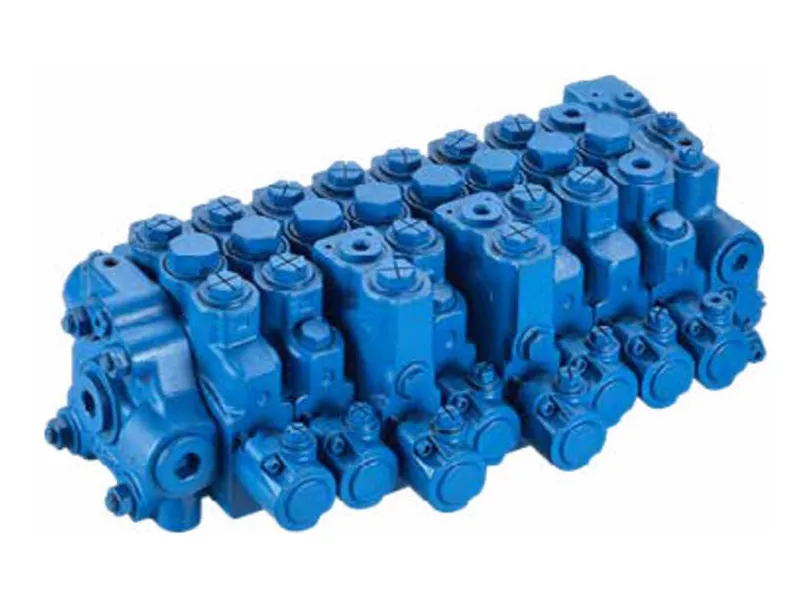

A load-sensing hydraulic system ensures consistent power control, adapting to diverse tasks while maintaining high efficiency and smooth operation.
Dimensions
- Operating weight 37300kg
- Rated bucket capacity 1.8m³
- Overall length 11280mm
- Overall width (standard track shoe) 3280mm
- Overall height 3560mm
- Turntable width 3155mm
- Cabin height 3172mm
- Ground clearance of counterweight 1183mm
- Engine cover height 2628mm
- Min. ground clearance 471mm
- Tail length 3451mm
- Turning radius of turnable 3505mm
- Wheel base of track shoe 4050mm
- Undercarriage length 4962mm
- Undercarriage width 3280mm
- Track shoe gauge 2680mm
- Standard track shoe width 600mm
Performance
- Max. traction 288kN
- Travelling speed (H/L) 5.5/3.3km/hr
- Swing speed 8.8rpm
- Gradeability 35 (70%)
- Ground pressure 0.7kgf/cm²
Working Range
- Max. digging radius 10546mm
- Max. digging radius at ground level 10349mm
- Max. digging depth 5884mm
- Max. digging depth at ground level 5707mm
- Max. vertical digging depth 4021mm
- Max. digging height 11110mm
- Max. dumping height 7900mm
- Min. front swing radius 3514mm
- Bucket digging force 240kN
- Stick digging force 214kN
Engine
- Model Cummins
- Type 6-cylinder in-line, four-stroke turbocharger
- Emission Tier III
- Displacement 8.9L
- Rated power 214kW@2100RPM
- Max. torque 1344N.m@1500rpm
