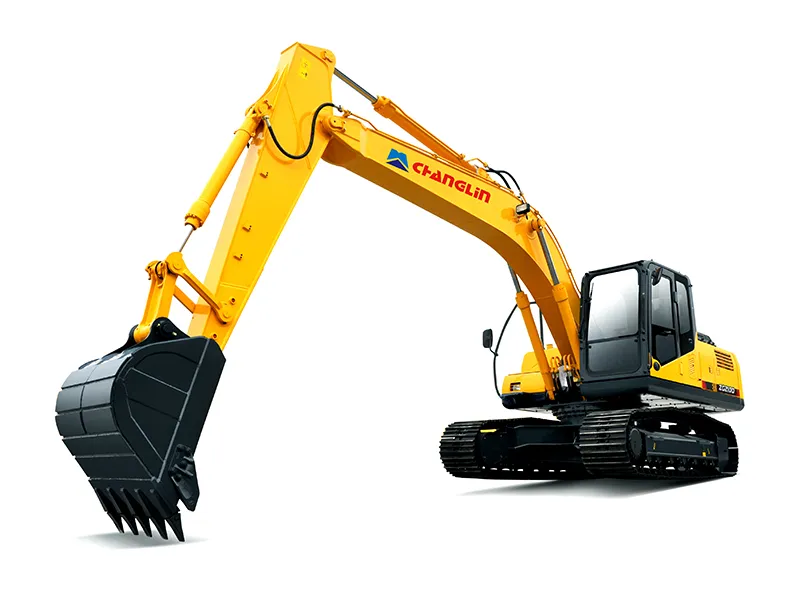

ZG210(D) Crawler Excavator

ZG210(D) Crawler Excavator
  • ZG210(D) Crawler Excavator
  • ZG210(D) Crawler Excavator
  • ZG210(D) Crawler Excavator

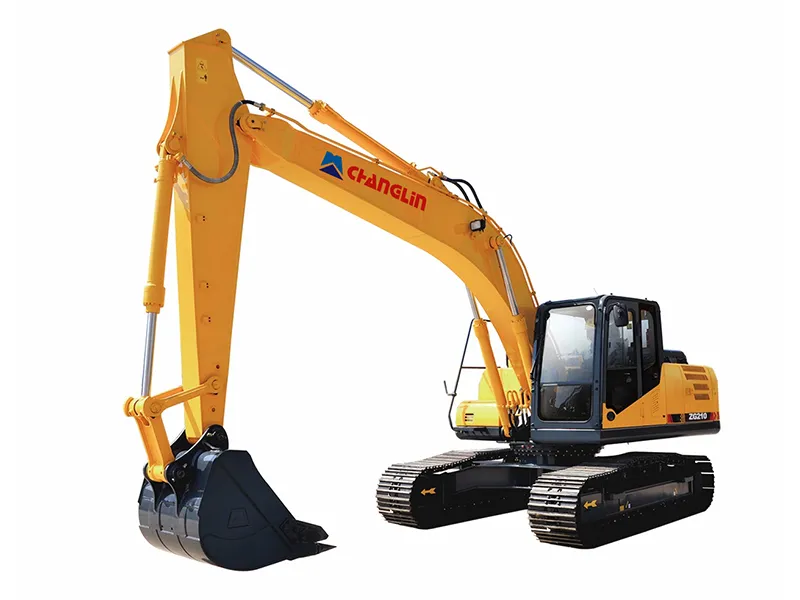

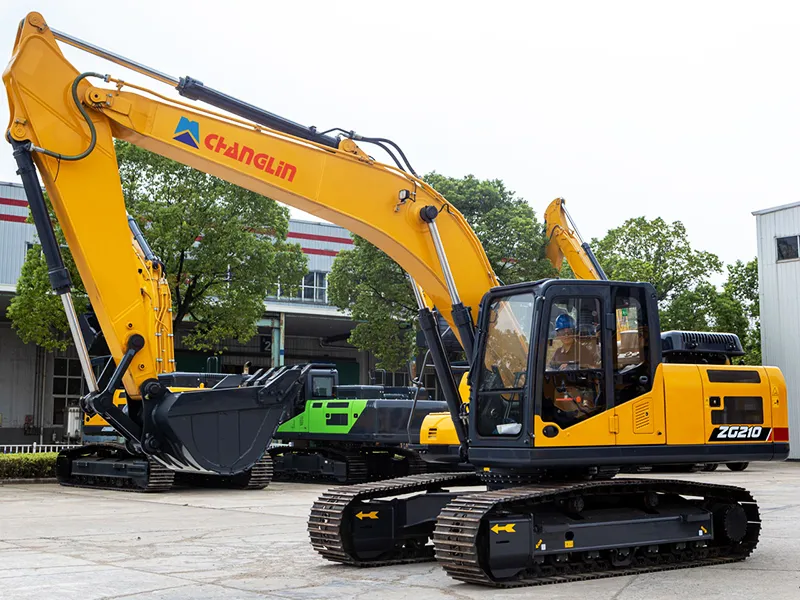

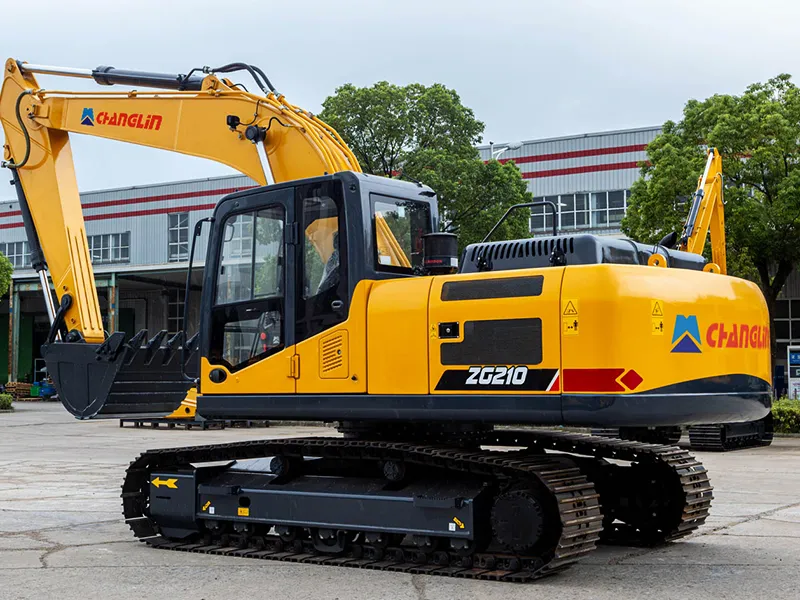

    • ZG210 Crawler Excavator

    Equipped with a Korean Kawasaki K3V series main pump and a Hengli control valve, this crawler excavator offers a refined hydraulic setup recognized across the industry. This configuration enables smooth and responsive operation, making it well-suited for urban construction, mining, and mid-scale infrastructure tasks.

    • Operating weightOperating weight 13890 kg
    • Rated bucket capacityRated bucket capacity 1 m³
    • Overall lengthOverall length 9520 mm
    Request a Quote
    Product Brochure
    ZG210(D) Crawler Excavator
  • ZG210(D) Crawler Excavator
  • ZG210(D) Crawler Excavator

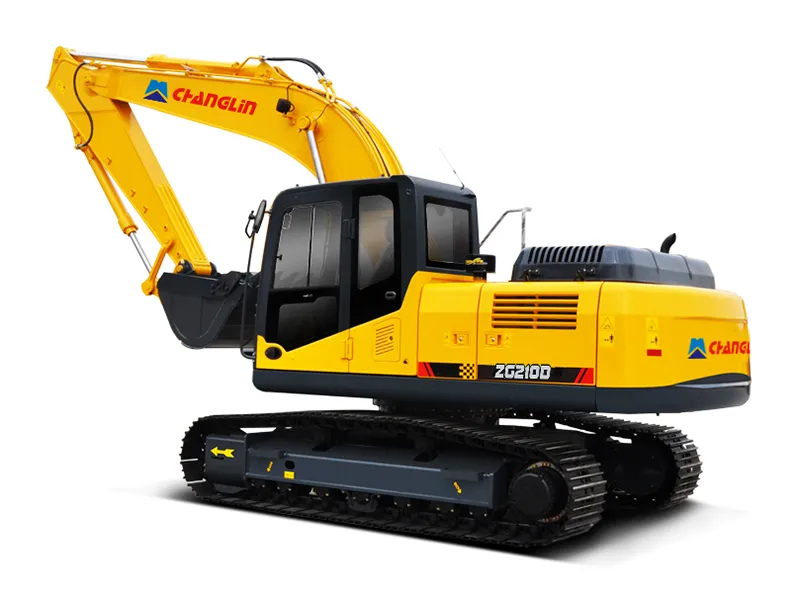

    • ZG210D Crawler Excavator

    The ZG210D crawler excavator features a hydraulic system configuration that combines a Korean Kawasaki PNMFK main pump with a control valve from XCMG. Compared to the ZG210 , this version offers a more cost-effective solution without compromising on performance. Agile and reliable, this model supports a variety of attachments including different bucket types and hydraulic breakers. Its versatility makes it suitable for a wide range of applications such as municipal construction, roadworks, pipeline installations, and operations in industrial or mining sites.

    • Operating weightOperating weight 13890 kg
    • Rated bucket capacityRated bucket capacity 1 m³
    • Overall lengthOverall length 9520 mm
    Request a Quote
    Product Brochure
    ZG210(D) Crawler Excavator
    ZG210(D)
    ZG210(D) Crawler Excavator
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZG210(D) Crawler Excavator

    Features an upgraded integrated control system that combines mechanical, electrical, and hydraulic functions. Equipped with a computer-based controller, pump pressure sensor, and load feedback sensor, it ensures smoother operation and greater fuel efficiency.

    ZG210(D) Crawler Excavator

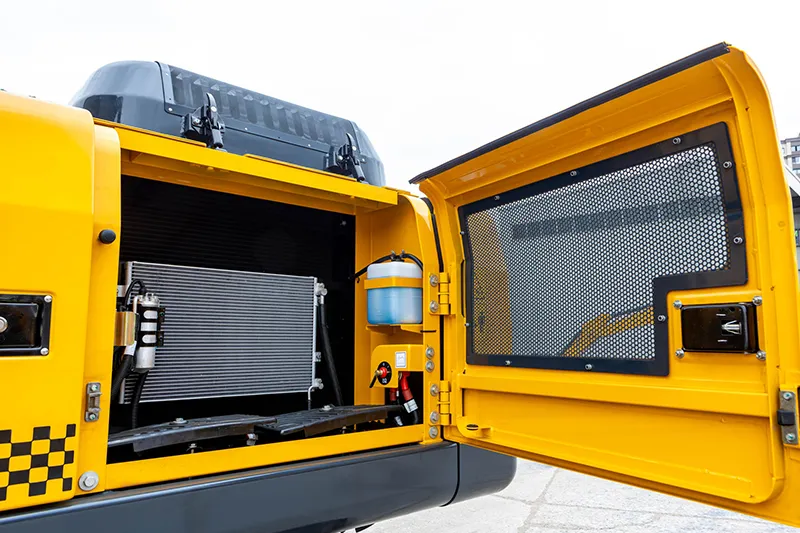

    The cooling system includes a fully parallel radiator setup and a low-noise Orca suction fan. Enhanced airflow sealing and a removable protective mesh improve heat dissipation and simplify maintenance.

    ZG210(D) Crawler Excavator

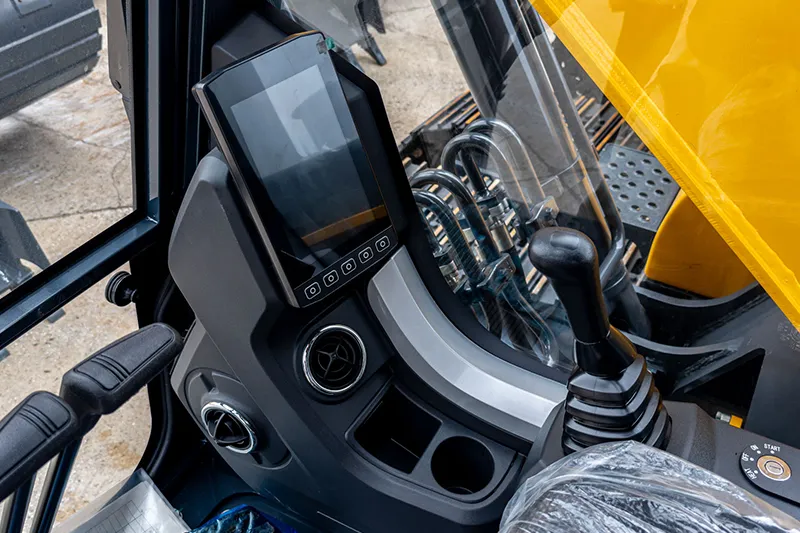

    The electrical system comes with a high-definition, multilingual display. Wiring harnesses are built using T-shaped connectors, dual-layer corrugated tubing, and adhesive-lined heat-shrink sleeves to improve both reliability and visual finish.

    ZG210(D) Crawler Excavator

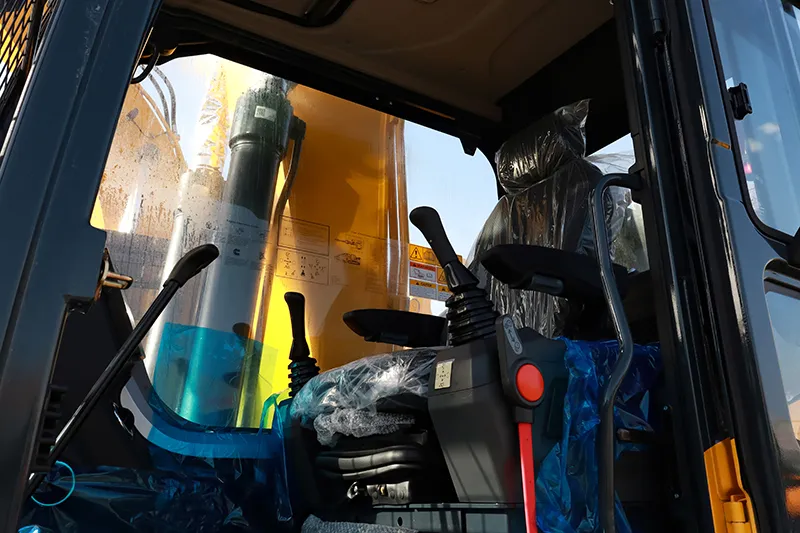

    Operator evaluations show that switching to leveling mode provides responsive and well-coordinated controls on par with leading international brands. The joysticks offer light, precise handling, ensuring comfort even during extended use.

    Technical Specifications

    Dimensions

    • Model ZG210 ZG210D
    • Operating weight 13890kg13890kg
    • Rated bucket capacity 1m³ 1m³
    • Overall length 9520 mm 9520mm
    • Overall width (standard track shoe) 2800mm 2800mm
    • Overall height 3030mm 3030mm
    • Turntable width 2700mm 2700mm
    • Cabin height 2958mm 2958mm
    • Ground clearance of counterweight 1025mm 1025mm
    • Engine cover height 2338mm 2338mm
    • Model ZG210 ZG210D
    • Min. ground clearance 470mm 470mm
    • Tail length 2800mm 2800mm
    • Turning radius of turnable 2800mm 2800mm
    • Wheel base of track shoe 3370mm3370mm
    • Undercarriage length 4160mm 4160mm
    • Undercarriage width 2800mm 2800mm
    • Track shoe gauge 2200mm 2200mm
    • Standard track shoe width 600mm600mm

    Performance

    • Model ZG210 ZG210D
    • Max. traction 204kN 204kN
    • Travelling speed (H/L) 5.8/3.3km/hr5.8/3.3km/hr
    • Swing speed 13.9rpm13.9rpm
    • Model ZG210 ZG210D
    • Gradeability 35 (70%) 35 (70%)
    • Ground pressure 0.47kgf/cm²0.47kgf/cm²

    Working Range

    • Model ZG210 ZG210D
    • Max. digging radius 9953mm 9770mm
    • Max. digging radius at ground level 9794mm 9610mm
    • Max. digging depth 6690mm6475mm
    • Max. digging depth at ground level 6505mm 6505mm
    • Max. vertical digging depth 6104mm 6104mm
    • Model ZG210 ZG210D
    • Max. digging height 9642mm 9642mm
    • Max. dumping height 6813mm6813mm
    • Min. front swing radius 3560mm3560mm
    • Bucket digging force 150kN 150kN
    • Stick digging force 100kN105kN

    Engine

    • Model Cummins
    • Type 6-cylinder in-line, four-stroke turbocharger
    • Emission Tier Ⅱ
    • Displacement 5.883L
    • Rated power 112kW (150PS)@1950rpm
    • Max. torque 614N.m@1500rpm
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

    We offer a wide range of attachments to meet different construction needs. These most common attachments include: standard buckets for earthmoving, hydraulic breakers for rock or concrete demolition, hydraulic shears for dismantling structures, log grapples for handling timber or pipes, rippers for compacted soil or frozen ground, vibratory compactors for backfilling, augers for drilling and piling, dredging buckets for clearing silt, and quick couplers for fast tool changes. These options make our machines suitable for civil works, mining, municipal maintenance, and forestry.

    Before starting the engine, check fuel, hydraulic oil, lubricant, and coolant levels. Inspect all hydraulic cylinders and lines for leaks, and ensure bolts and connections, especially on the boom and undercarriage, are tight. Lastly, scan the worksite to make sure the area is clear of obstacles and safe for operation.

    The hydraulic system is the core of an excavator. It converts engine power into hydraulic energy, which drives the boom, arm, bucket, and tracks. Key components include the hydraulic pump, cylinders, motors, control valves, and fluid. This system enables the machine to lift, dig, swing, and travel with precision.

    Yes. Our excavators meet CE certification requirements, which ensure compliance with European health, safety, and environmental standards, making them ready for export and operation across the EU market.

    Selecting the right excavator for open-pit mining requires a clear understanding of the project's scale and demands. It's essential to match the equipment specifications, such as digging force, structural strength, and hydraulic efficiency, to the specific conditions of the mine site. Factors like ease of maintenance, operator comfort, and the right type of track system also play a major role. In addition, consider the total cost of ownership, which includes not only the initial investment but also fuel efficiency, routine maintenance, and repair costs. Modern features like GPS tracking, remote monitoring, and semi-automation can significantly enhance productivity. Lastly, strong after-sales support and readily available spare parts are crucial when choosing a reliable brand.
