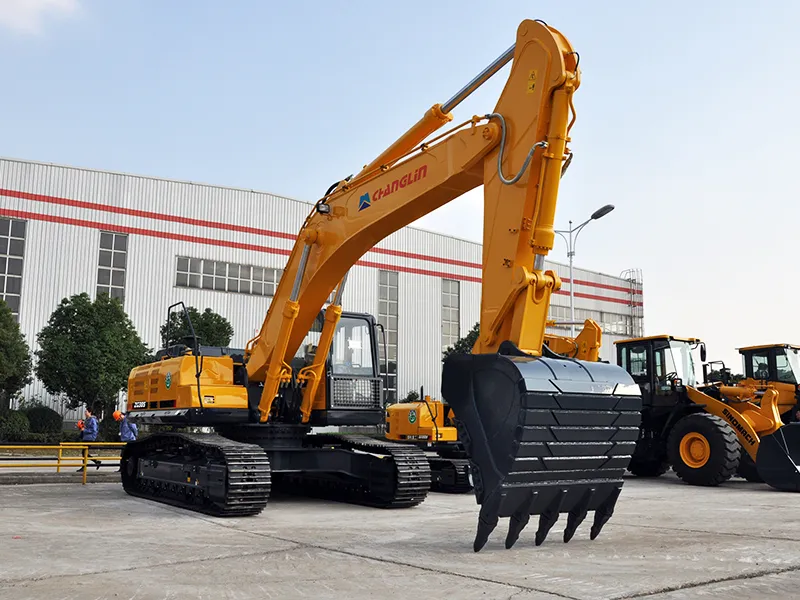

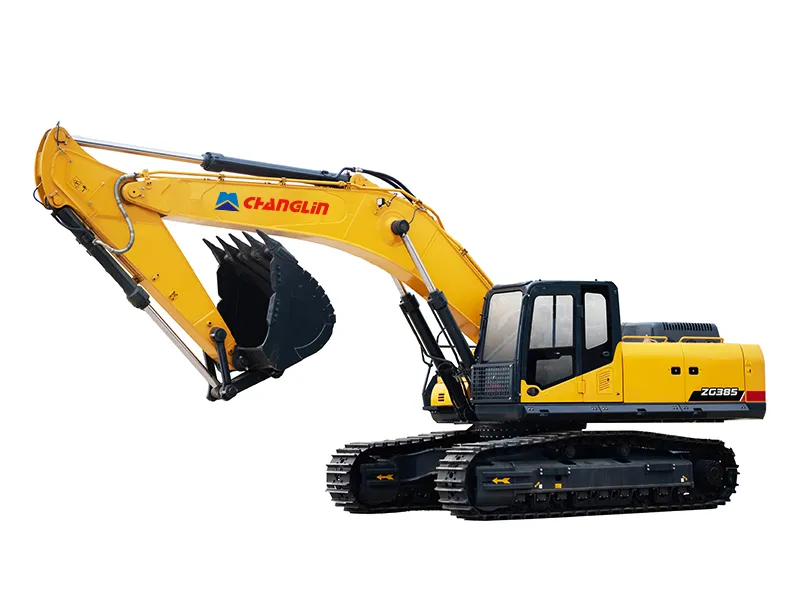

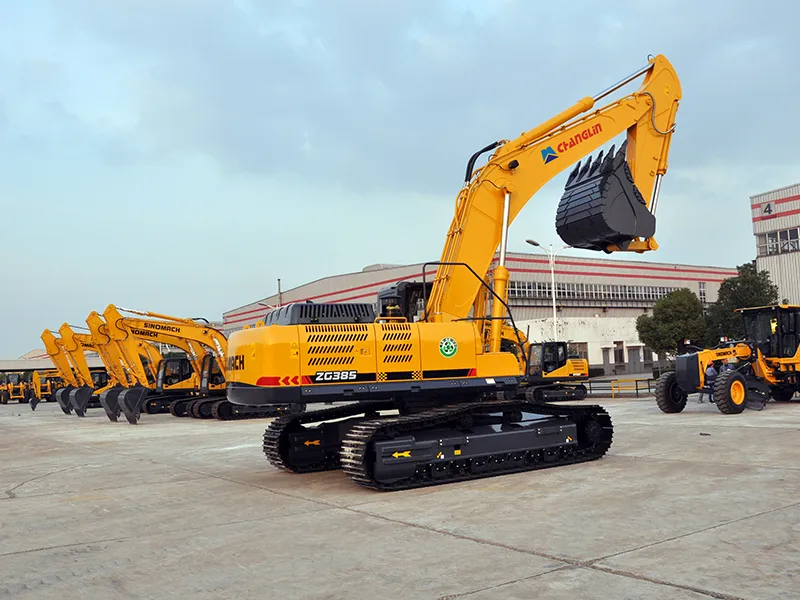

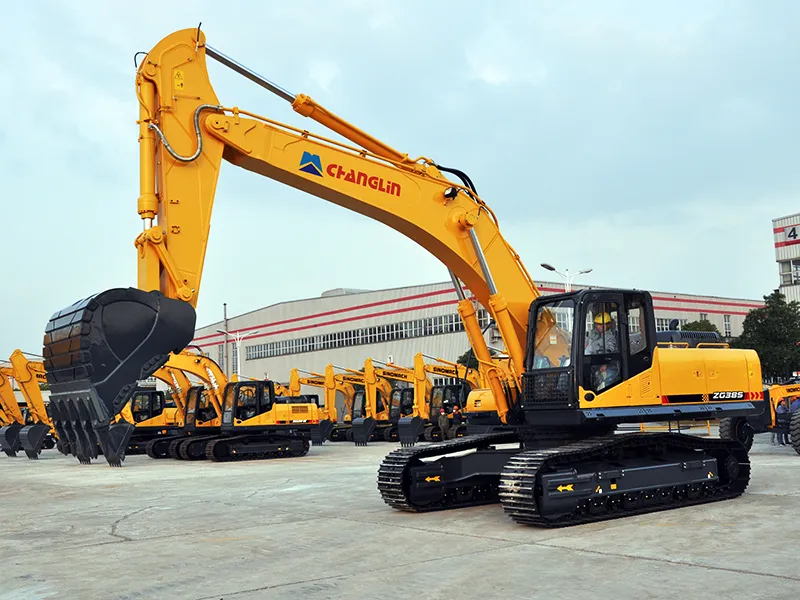

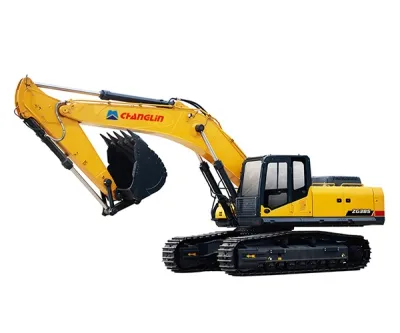

ZG385 Crawler Excavator

ZG385 Crawler Excavator
  • ZG385 Crawler Excavator
  • ZG385 Crawler Excavator
  • ZG385 Crawler Excavator
  • ZG385 Crawler Excavator

    • ZG385 Crawler Excavator

    Equipped with large-diameter hydraulic cylinders and an optimized layout of all key pivot points, this crawler excavator delivers enhanced digging performance. The system includes an automatic power boost function that increases digging force when operating under heavy loads, improving productivity in demanding conditions. A high-displacement swing motor combined with a large gear ratio ensures greater swing torque and more stable braking. The new-generation control system intelligently adjusts hydraulic power based on the specific working conditions, ensuring smooth operation and maximizing overall efficiency.

    • Operating weightOperating weight 37200 kg
    • Rated bucket capacityRated bucket capacity 1.8 m³
    • Overall lengthOverall length 11280 mm
    Request a Quote
    ZG385 Crawler Excavator
    ZG385 Crawler Excavator
    ZG380
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features

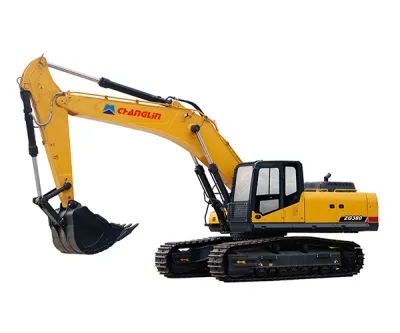

    ZG380 Crawler Excavator

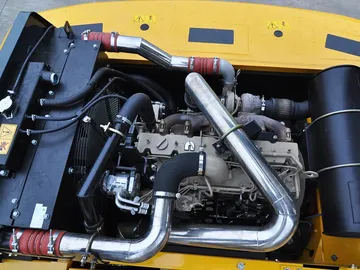

    Equipped with a 214 kW Cummins electronic injection engine compliant with Tier III emissions standards, this crawler excavator delivers high torque output, reliable heavy-duty performance, and fuel consumption as low as 28.8 L/h.

    ZG380 Crawler Excavator

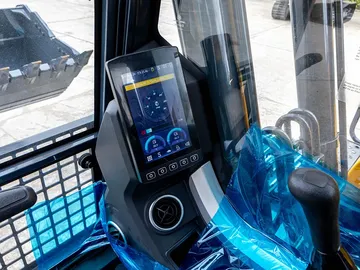

    The intelligent monitoring system enables real-time fault diagnostics, maintenance reminders, and performance alerts to support safe and efficient operation on tough job sites.

    ZG380 Crawler Excavator

    Optimized large-diameter hydraulic cylinders and reinforced joints enhance digging force significantly. With an automatic boost function, the bucket breakout force reaches up to 240 kN, and the arm up to 214 kN under demanding loads.

    ZG380 Crawler Excavator

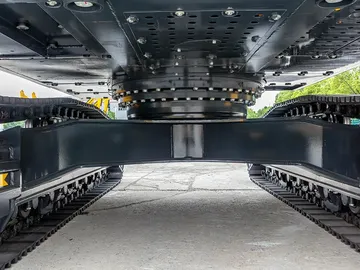

    Reinforced box-type side beams and an X-frame undercarriage ensure strong structural integrity. High-reliability track rollers and carrier rollers withstand impact from extreme conditions.

    ZG380 Crawler Excavator

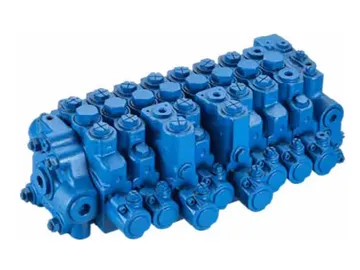

    A load-sensing hydraulic system ensures consistent power control, adapting to diverse tasks while maintaining high efficiency and smooth operation.

    Technical Specifications

    Dimensions

    • Operating weight 37200kg
    • Rated bucket capacity 1.8m³
    • Overall length 11280mm
    • Overall width (standard track shoe) 3280mm
    • Overall height 3560mm
    • Turntable width 3155mm
    • Cabin height 3172mm
    • Ground clearance of counterweight 1183mm
    • Engine cover height 2628mm
    • Min. ground clearance 471mm
    • Tail length 3451mm
    • Turning radius of turnable 3505mm
    • Wheel base of track shoe 4050mm
    • Undercarriage length 4962mm
    • Undercarriage width 3280mm
    • Track shoe gauge 2680mm
    • Standard track shoe width 600mm

    Performance

    • Max. traction 288kN
    • Travelling speed (H/L) 5.5/3.3km/hr
    • Swing speed 8.8rpm
    • Gradeability 35 (70%)
    • Ground pressure 0.7kgf/cm²

    Working Range

    • Max. digging radius 10546mm
    • Max. digging radius at ground level 10349mm
    • Max. digging depth 5884mm
    • Max. digging depth at ground level 5707mm
    • Max. vertical digging depth 4021mm
    • Max. digging height 11110mm
    • Max. dumping height 7900mm
    • Min. front swing radius 3514mm
    • Bucket digging force 240kN
    • Stick digging force 214kN

    Engine

    • Model Cummins
    • Type 6-cylinder in-line, four-stroke turbocharger
    • Emission Tier III
    • Displacement 8.9L
    • Rated power 214kW@2100RPM
    • Max. torque 1344N.m@1500rpm
    After-Sales Support

    We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:

    After-Sales Support
    1

    Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.

    After-Sales Support
    2

    A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.

    After-Sales Support
    3

    Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.

    The hydraulic system is the core of an excavator. It converts engine power into hydraulic energy, which drives the boom, arm, bucket, and tracks. Key components include the hydraulic pump, cylinders, motors, control valves, and fluid. This system enables the machine to lift, dig, swing, and travel with precision.

    Yes. Our excavators meet CE certification requirements, which ensure compliance with European health, safety, and environmental standards, making them ready for export and operation across the EU market.

    Selecting the right excavator for open-pit mining requires a clear understanding of the project's scale and demands. It's essential to match the equipment specifications, such as digging force, structural strength, and hydraulic efficiency, to the specific conditions of the mine site. Factors like ease of maintenance, operator comfort, and the right type of track system also play a major role. In addition, consider the total cost of ownership, which includes not only the initial investment but also fuel efficiency, routine maintenance, and repair costs. Modern features like GPS tracking, remote monitoring, and semi-automation can significantly enhance productivity. Lastly, strong after-sales support and readily available spare parts are crucial when choosing a reliable brand.

    Several key elements determine how long an excavator will remain in good working condition. First, the intensity and frequency of use have a direct impact, heavy workloads or continuous operation can wear components out more quickly. Regular maintenance is also essential; timely servicing helps prevent minor issues from becoming serious problems. Operator behavior plays a major role too, well-trained operators who follow proper procedures and safety guidelines are more likely to keep the equipment in better shape over time. Lastly, the working environment matters: harsh conditions like extreme temperatures, high humidity, or dusty terrain can all contribute to faster wear and tear.

    When selecting an excavator for orchard use, it’s essential to consider the layout and spacing between trees. Choose a model that fits comfortably within the row width so it can move freely without damaging the plants. The digging depth should meet typical orchard tasks like soil preparation or fertilizer application, usually up to 1.5 meters. Trench width depends on the bucket and can be customized if needed. Also evaluate how much lifting capacity the boom requires for your daily operations. In general, machines between 0.8 and 1.5 tons offer the right balance of size, maneuverability, and power for orchard environments.
