Length 8950 mm
Operating weight 16100 kg
Blade length 4320 mm

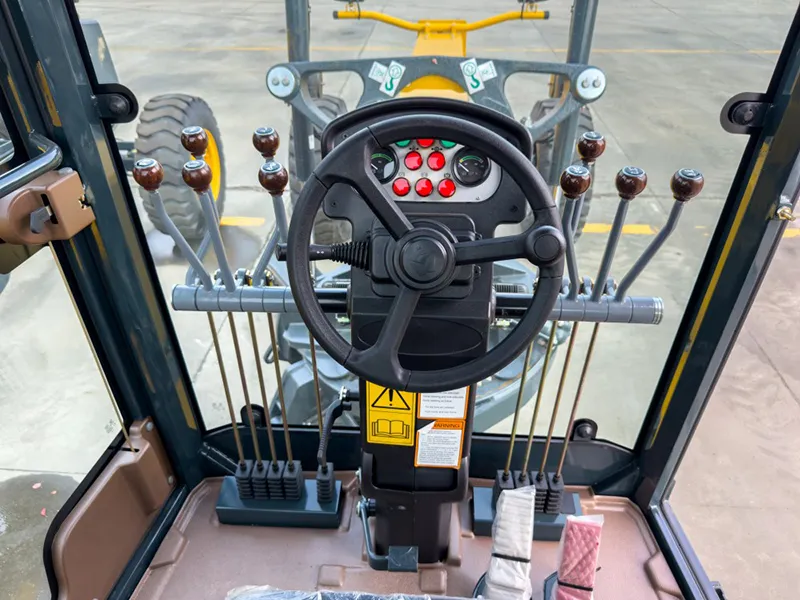

Single-lever electrohydraulic control with power shift transmission offers 6 forward and 3 reverse gears, ensuring smooth operation. The throttle is controlled by both hand and foot pedals for better responsiveness, and the electric shutdown system adds safety and convenience.
The auto-leveling system enhances grading precision, helping reduce the number of passes and increasing overall job efficiency.

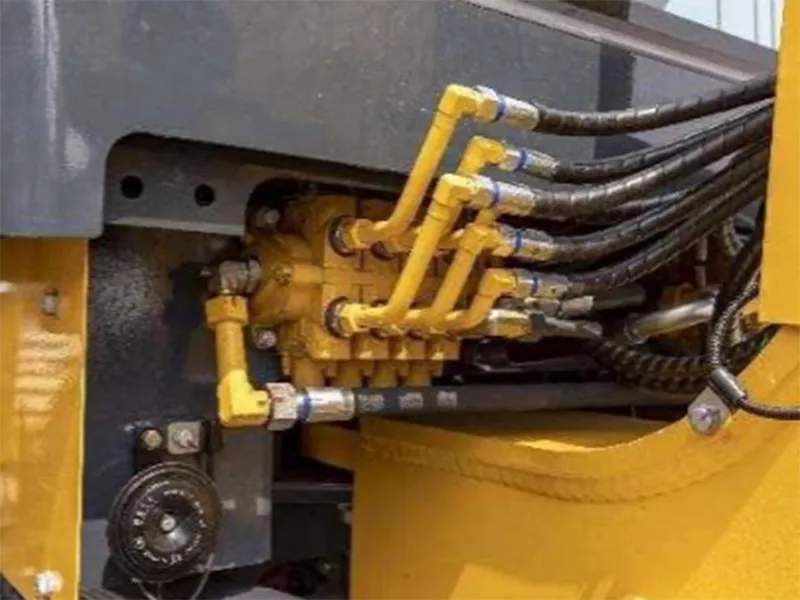

The hydraulic system uses a single pump with flow divided to left and right multi-way valves, which later merge for optimized circulation. Maintains stable system pressure at 17.5 MPa while minimizing energy loss and ensuring consistent performance.

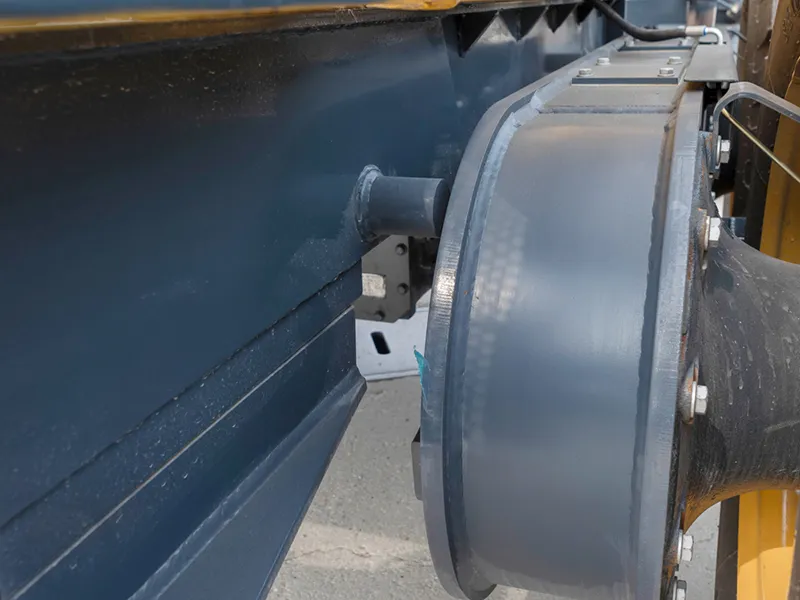

Equipped with double-row heavy-duty roller chains, each with an average breaking strength of 26 tons. These maintenance-free chains withstand tough conditions and eliminate issues like breakage during heavy-load operation.

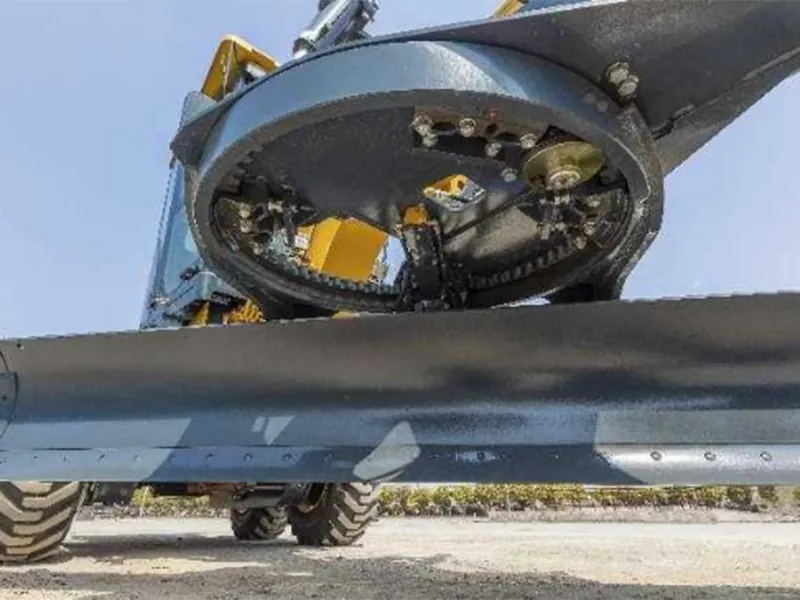

The moldboard/blade delivers a cutting depth of up to 535 mm and features a wide range of blade pitch angles (29–77°), allowing efficient soil rolling and adapting to complex grading requirements.

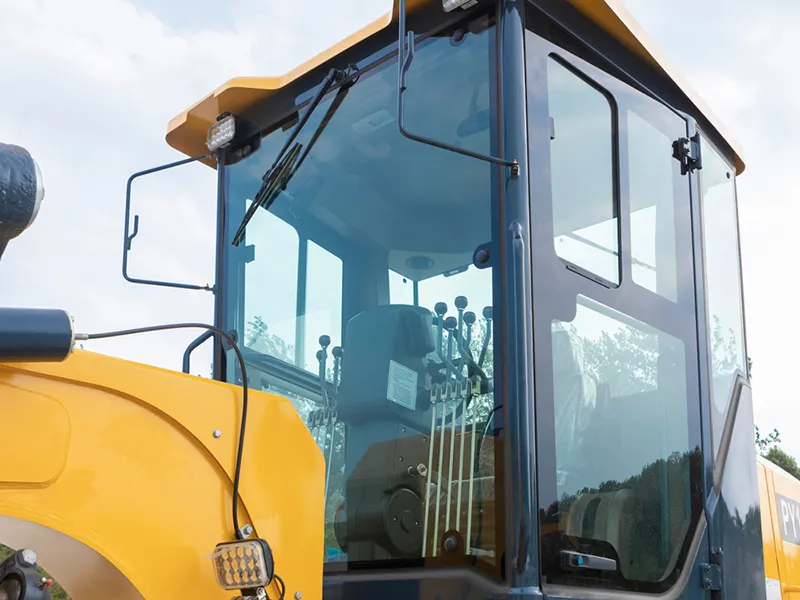

The operator’s cabin provides unobstructed panoramic visibility and is equipped with a suspension seat featuring an integrated headrest for enhanced comfort. Optional ROPS/FOPS protection, air conditioning, MP3/FM radio, and USB charging ports ensure a safer and more convenient working environment.
Overall Dimensions
- Length 8950mm
- Width 2600mm
- Height (to the top of the cab) 3420mm
- Wheel base 6100mm
- Track width 2120mm
- Min. turning radius 7.3m
Performance
- Operating weight 16100kg
- Blade length 4320mm
- Blade height 545mm
- Shovel blade thickness 20mm
- Max. lift above ground 450mm
- Max. grading depth 535mm
- Max. shoulder reach (outside of rear tires) 2400mm
Travel Speed
- Forward (1-6) 6.7/10.2/15.2/22.5/31.6/45km/h
- Reverse (1-3) 6.7/15.2/31.6km/h
Diesel Engine
- Model Dongfeng Cummins
- Type Direct injection, turbocharged, water cooling
- Rated output 160kW
- Rated speed 2200r/min
- Max. torque 908N.m@1400r/min
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
What is front-wheel assist drive on a motor grader, and how is it different from full-wheel drive?
What’s the difference between a front and a rear ripper/scarifier, and when should each be used?
How can I tell if a motor grader is suitable for the soil or terrain in my area?
Can a motor grader be used for applications other than road grading?

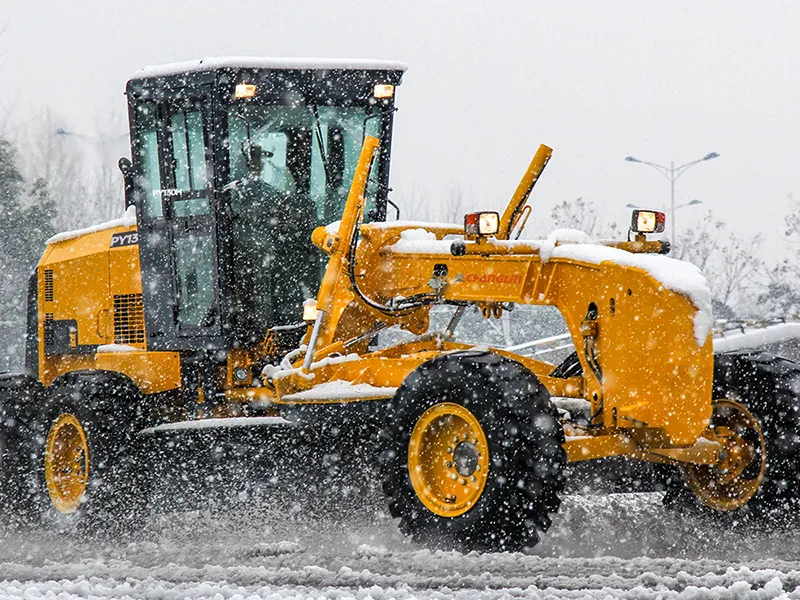

Yes, motor graders are highly versatile and can be used in a wide range of applications beyond standard road leveling. They’re effective in earthmoving projects, slope formation, spreading and loosening materials, trenching, ditching, and even snow and ice removal. Our motor graders are also suitable for:
- Site preparation and fine leveling, clearing debris and ensuring a smooth surface before construction

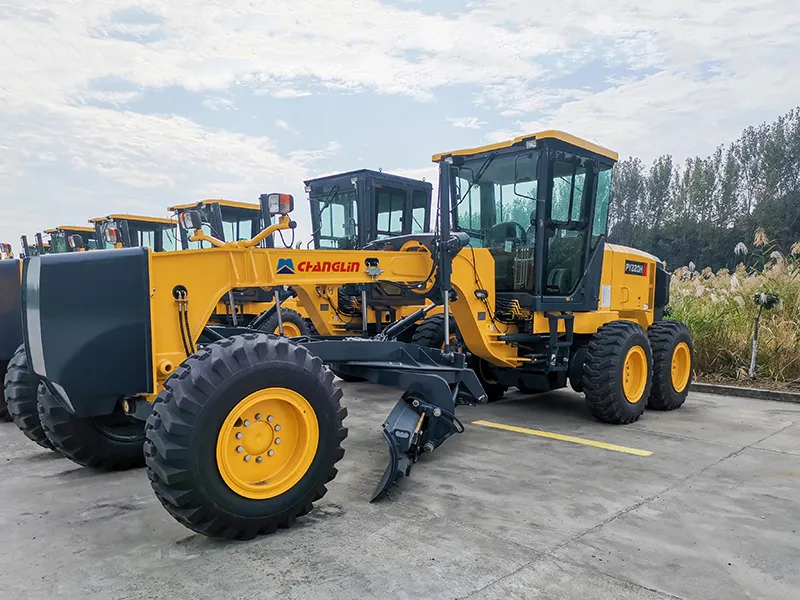

- Breaking up old pavement or hard soil, especially when equipped with a rear ripper
- Shaping and trimming slopes for landscaping or terrain modification
- Mixing, spreading, and compacting base layers during road construction
- Pushing tasks, when fitted with a front blade, and maintaining balance with front and rear counterweights
