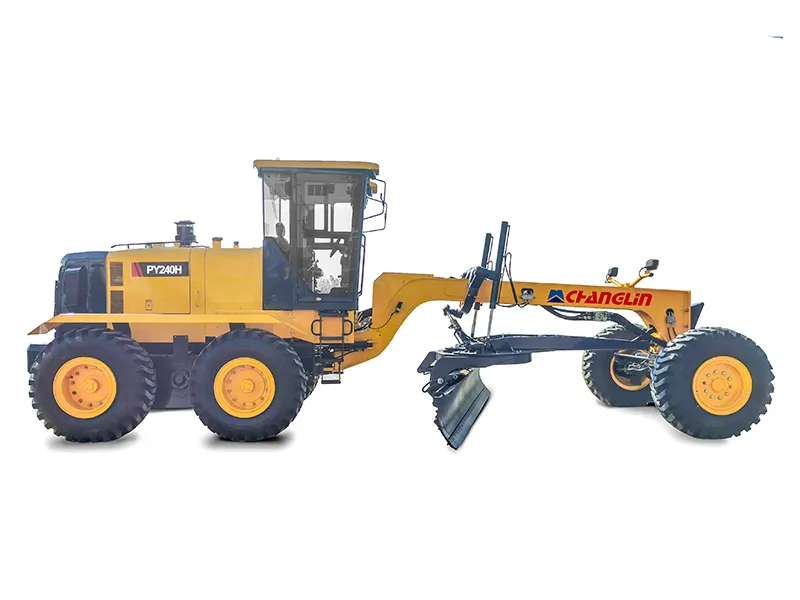

Length 9980 mm
Operating weight 18000 kg
Blade length 4420 mm

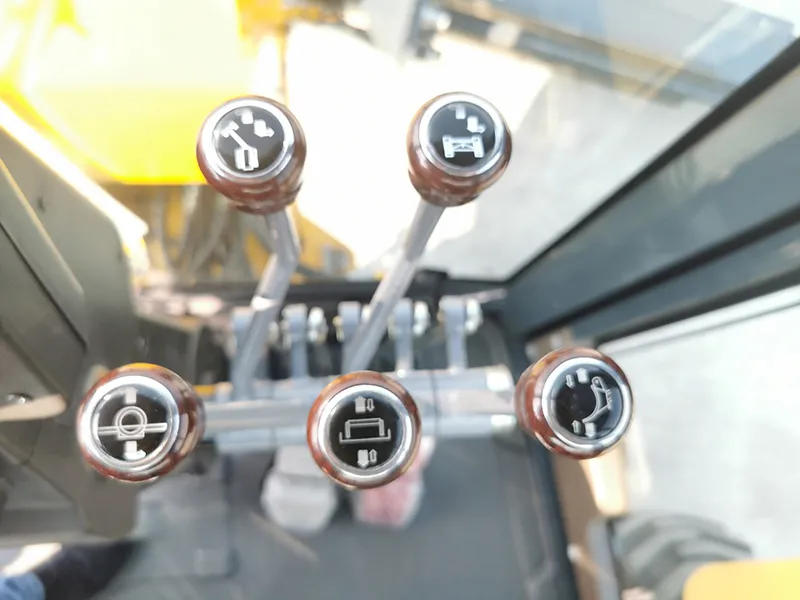

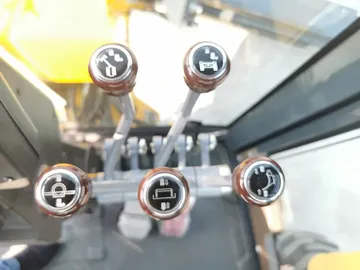

The grader uses a single-handle electro-hydraulic control system combined with a power-shift transmission (T/M), offering 6 forward and 3 reverse speeds. It supports both hand and foot throttle coordination, allowing better control during stand-up operation. An electric shut-off system is also included for added convenience.
The automatic leveling system helps increase grading accuracy and reduces the number of cycles required, improving overall efficiency.

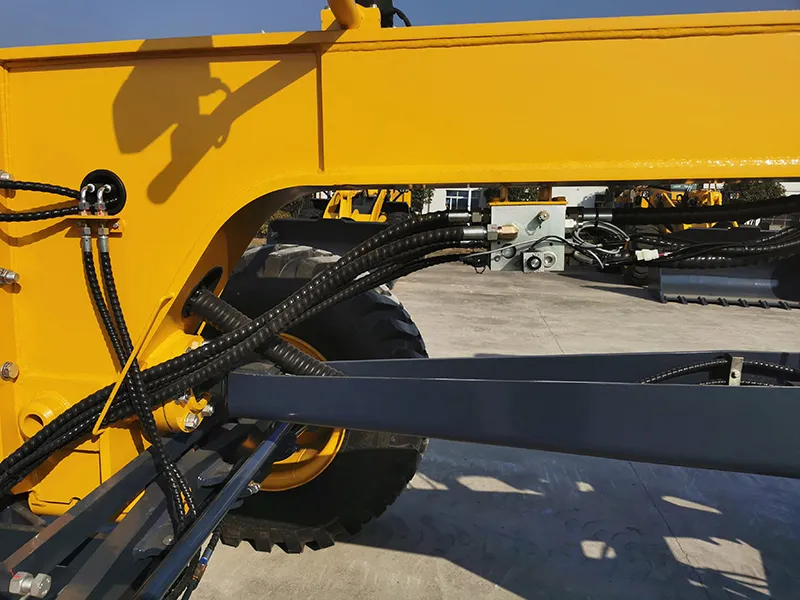

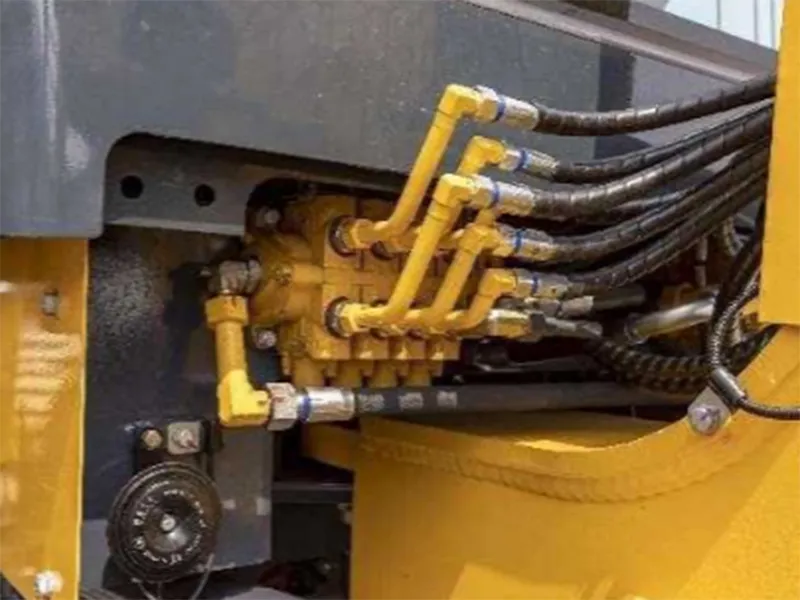

A single-pump hydraulic system distributes oil through a diverter valve to left and right control valves, then recombines partially downstream. This setup ensures steady system pressure at 17.5 MPa while minimizing flow loss and energy waste.

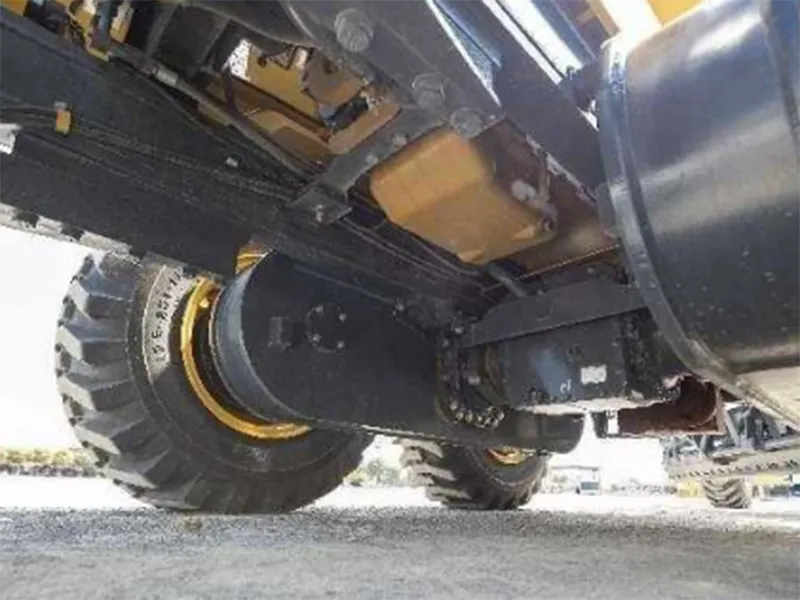

The double-row heavy-duty roller chain features an average breaking strength of 26 tons. It operates without tension adjustment and is built to withstand harsh conditions, reducing the risk of chain breakage under heavy loads.

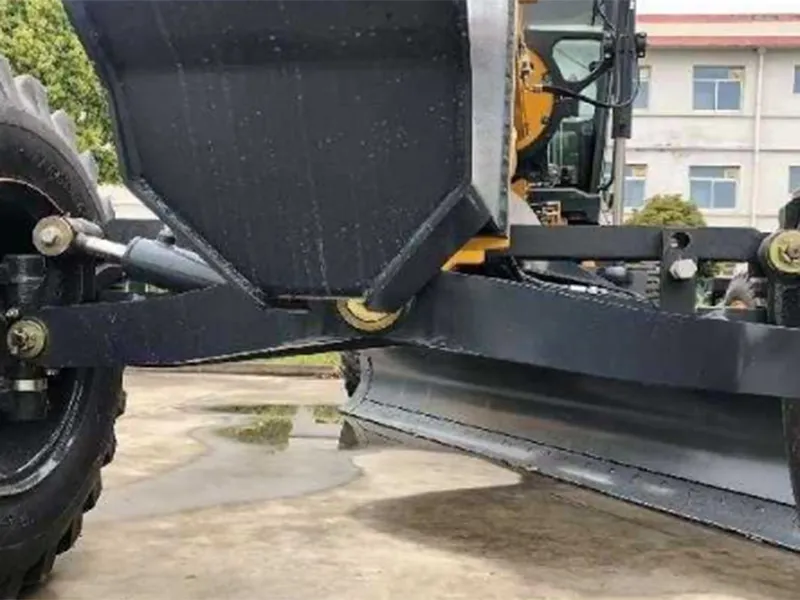

The grader blade or moldboard can cut up to 535 mm deep and offers an optimized curvature range of 29° to 77°, enabling efficient soil turnover and meeting the demands of specialized grading operations.

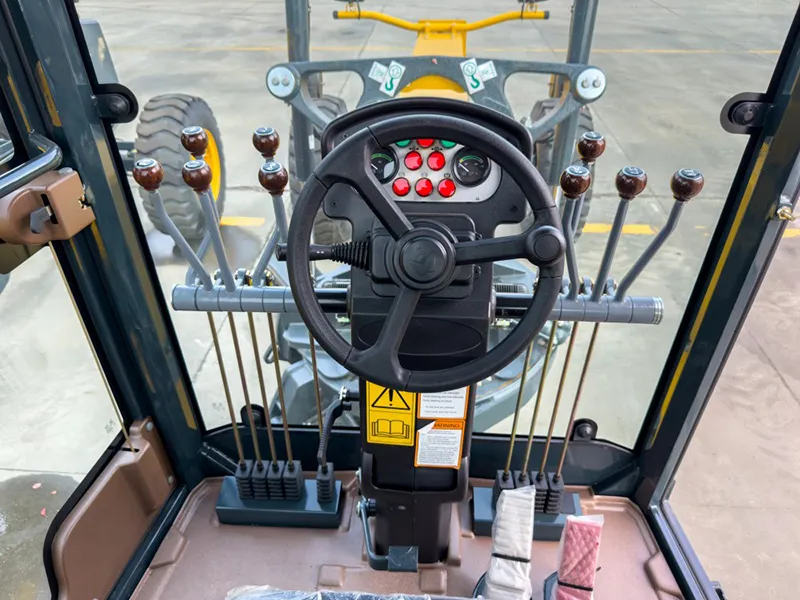

The cab offers full panoramic visibility and includes a suspension seat with a headrest to ensure operator comfort. An optional ROPS/FOPS safety cab is available, along with features such as a built-in MP3/FM radio, high-power air conditioning for both heating and cooling, and a USB charging port.
Overall Dimensions
- Length 9980mm
- Width 3100mm
- Height (to the top of the cab) 3630mm
- Wheel base 6900mm
- Track width 2580mm
- Min. turning radius 8.3m
Performance
- Operating weight 18000kg
- Blade length 4420mm
- Blade height 580mm
- Shovel blade thickness 16mm
- Max. lift above ground 450mm
- Max. grading depth 500mm
- Max. shoulder reach (outside of rear tires) 2150mm
Travel Speed
- Forward (1-6) 4.96/8.55/11.3/19.32/24.25/40km/h
- Reverse (1-3) 4.96/11.3/23km/h
Diesel Engine
- Model Dongfeng Cummin
- Type Direct injection, turbocharged, water cooling
- Rated output 179kW
- Rated speed 2200r/min
- Max. torque 1028N.m@1400r/min
We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:
Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.
A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.
Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.
What’s the difference between a front and a rear ripper/scarifier, and when should each be used?
Can I add extra weight or install a longer blade on a motor grader?
How can I tell if a motor grader is suitable for the soil or terrain in my area?
Can a motor grader be used for applications other than road grading?

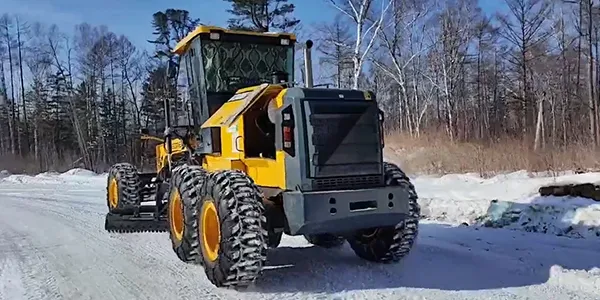

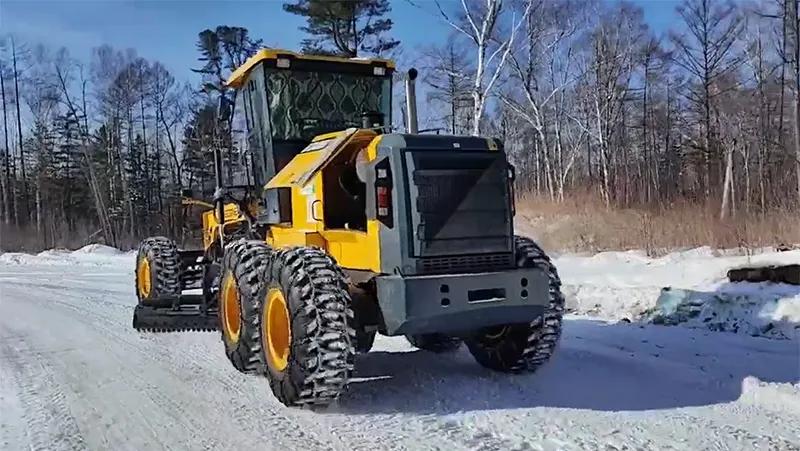

Yes, motor graders are highly versatile and can be used in a wide range of applications beyond standard road leveling. They’re effective in earthmoving projects, slope formation, spreading and loosening materials, trenching, ditching, and even snow and ice removal. Our motor graders are also suitable for:
- Site preparation and fine leveling, clearing debris and ensuring a smooth surface before construction

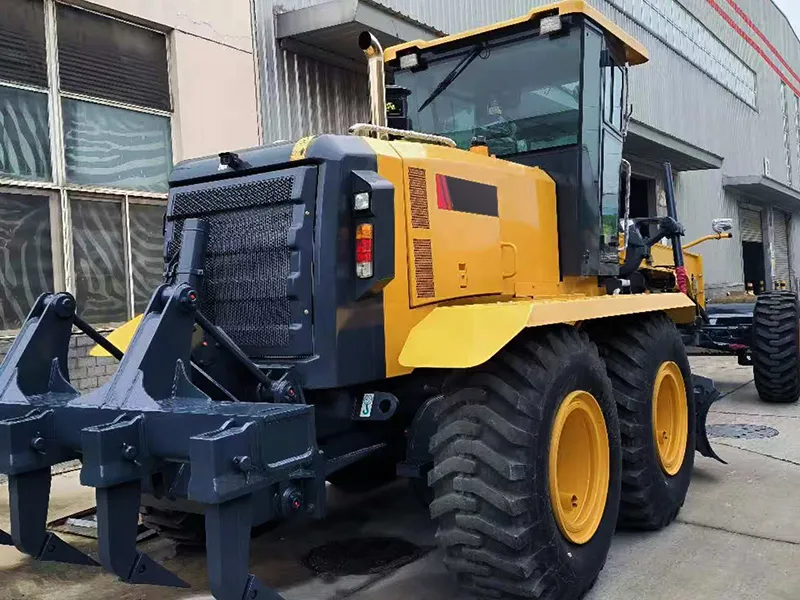

- Breaking up old pavement or hard soil, especially when equipped with a rear ripper
- Shaping and trimming slopes for landscaping or terrain modification
- Mixing, spreading, and compacting base layers during road construction

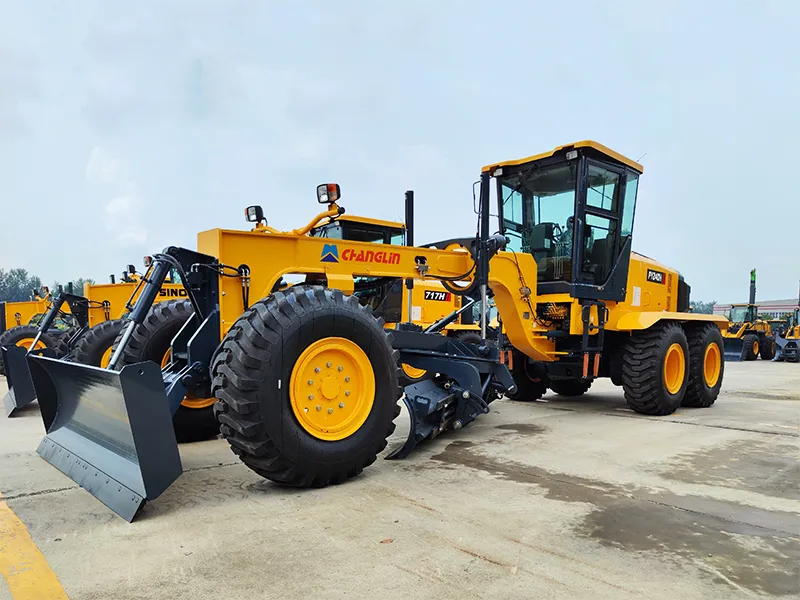

- Pushing tasks, when fitted with a front blade, and maintaining balance with front and rear counterweights
Are motor graders available with automatic grade control systems?
They’re compatible with various types of sensors and can adapt to different site conditions, improving efficiency in tasks that require consistent grading accuracy, especially in road construction, foundation preparation, and other precision earthmoving jobs.
