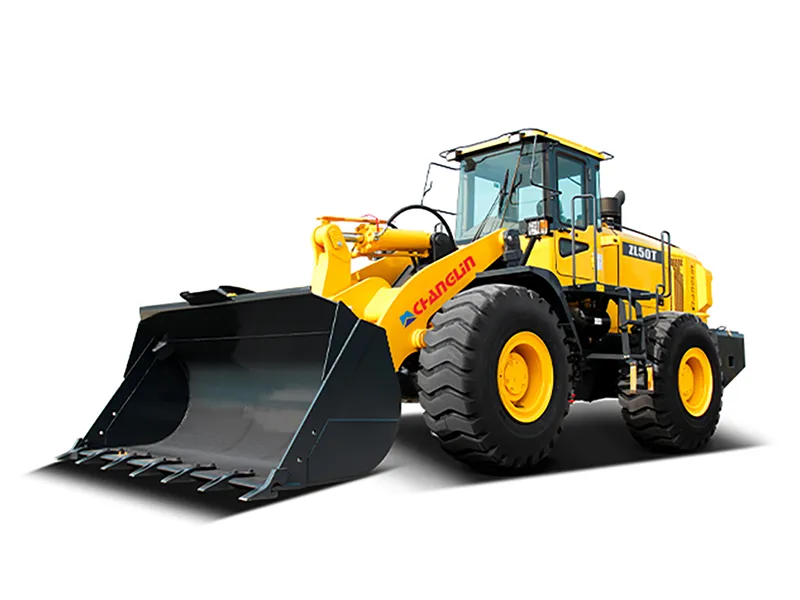

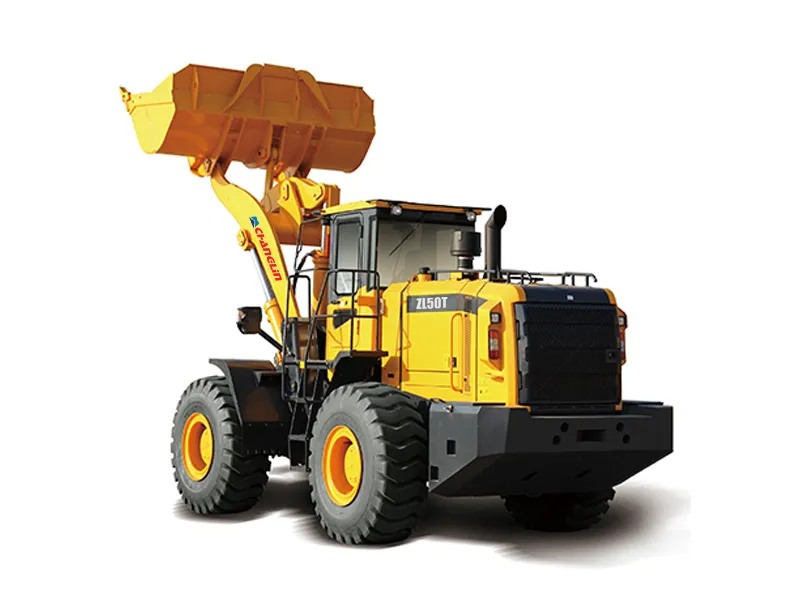

ZL50T Wheel Loader

ZL50T Wheel Loader
  • ZL50T Wheel Loader
  • ZL50T Wheel Loader
  • ZL50T Wheel Loader
  • ZL50T Wheel Loader
  • ZL50T Wheel Loader
  • ZL50T Wheel Loader

    • ZL50T Wheel Loader
    • Length (with bucket on ground)Length (with bucket on ground) 8015 mm
    • Operating weightOperating weight 16200 kg
    • Rated bucket capacityRated bucket capacity 3.1 m³
    • Rated outputRated output 162 kW
    Request a Quote
    Product Brochure
    ZL50T Wheel Loader
    ZL50T Wheel Loader
    ZL50T
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZL50T Wheel Loader

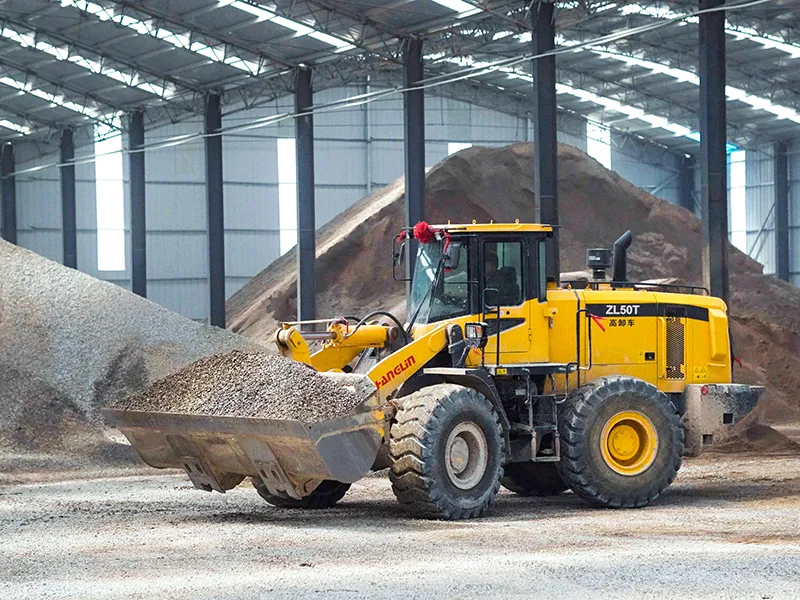

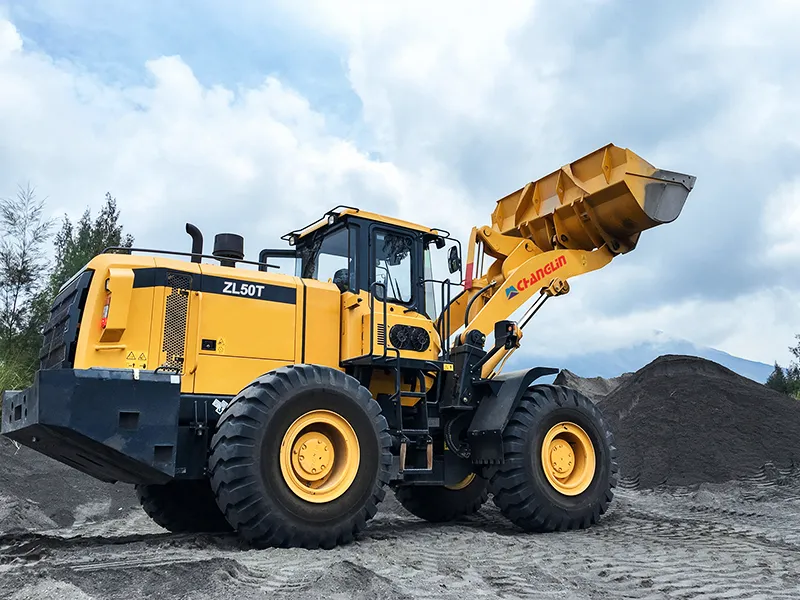

    Built with a 3100 mm wheelbase, this loader is engineered for energy efficiency and performs exceptionally well when handling loose materials in high-volume operations.

    ZL50T Wheel Loader

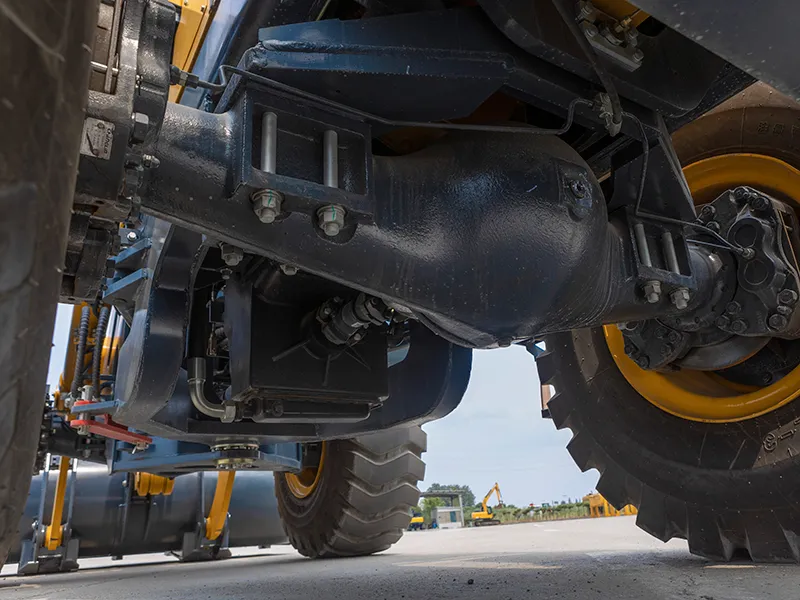

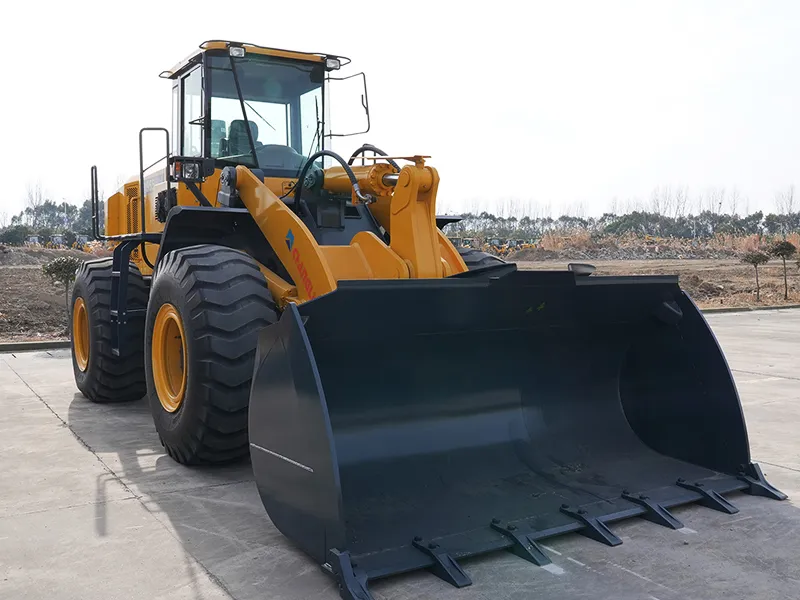

    The articulated frame incorporates tapered roller bearings for added durability and reliability, especially under continuous heavy-duty use.

    ZL50T Wheel Loader

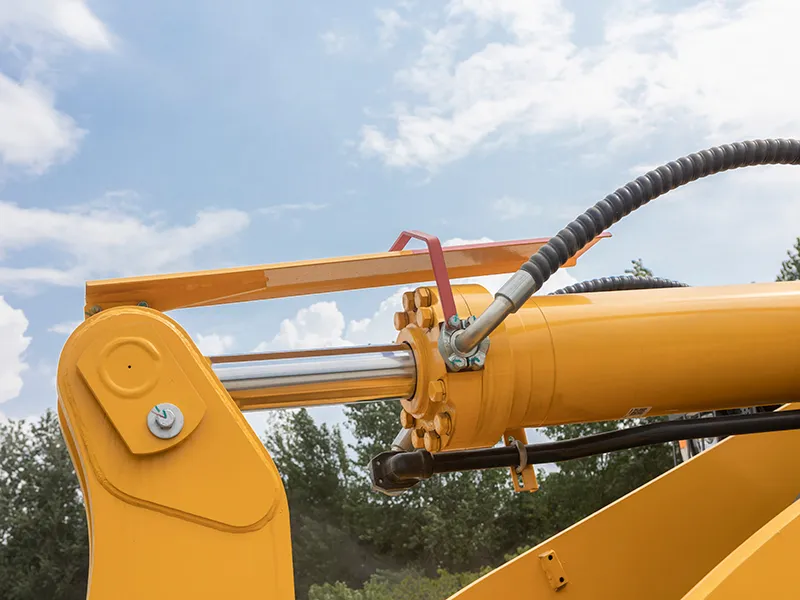

    Its hydraulic system features dual-pump converging flow along with a dedicated cooling circuit, improving heat dissipation and maintaining the oil temperature below 85 °C.

    ZL50T Wheel Loader

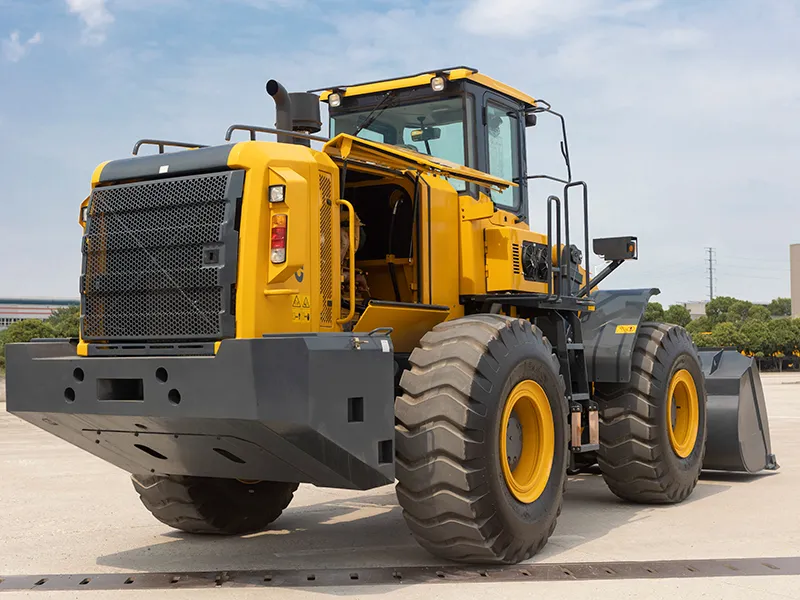

    The T-series cab design includes large-access panels at both the front and rear, a fully sealed structure, and improved sound insulation, reducing interior noise levels to just 70 dB.

    ZL50T Wheel Loader

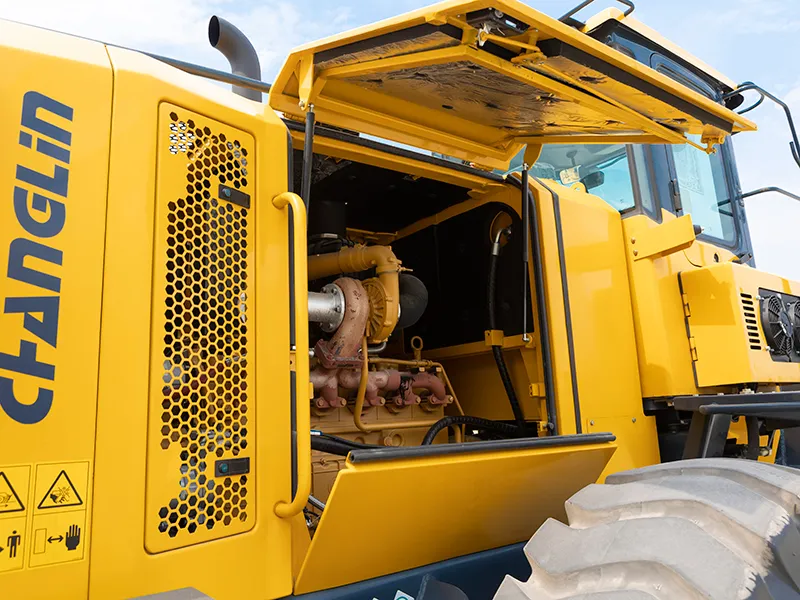

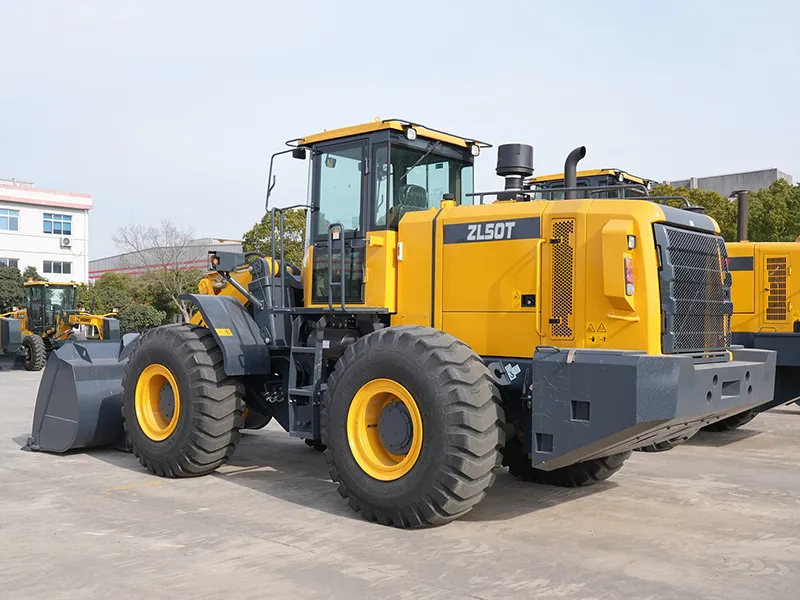

    Maintenance is simplified through a user-friendly layout that brings relays, fuse boxes, grease fittings, and pressure taps together for quicker inspections and servicing.

    ZL50T Wheel Loader

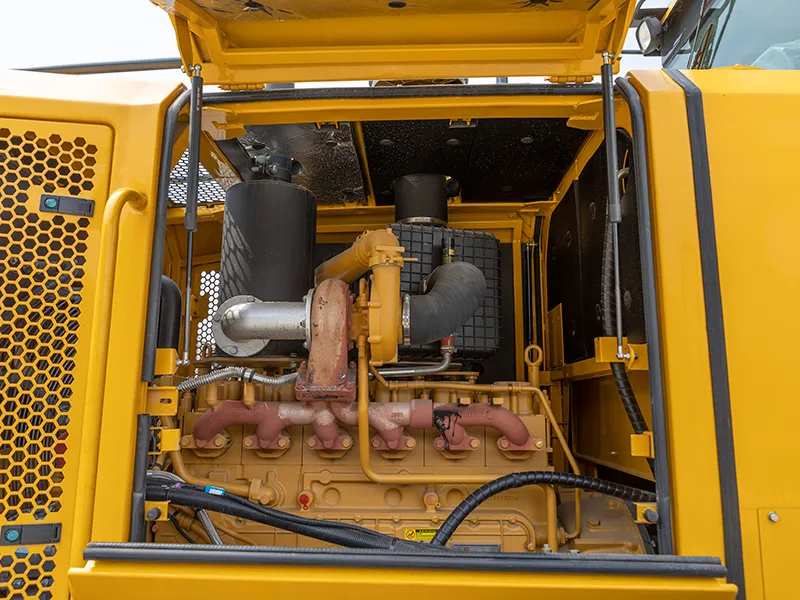

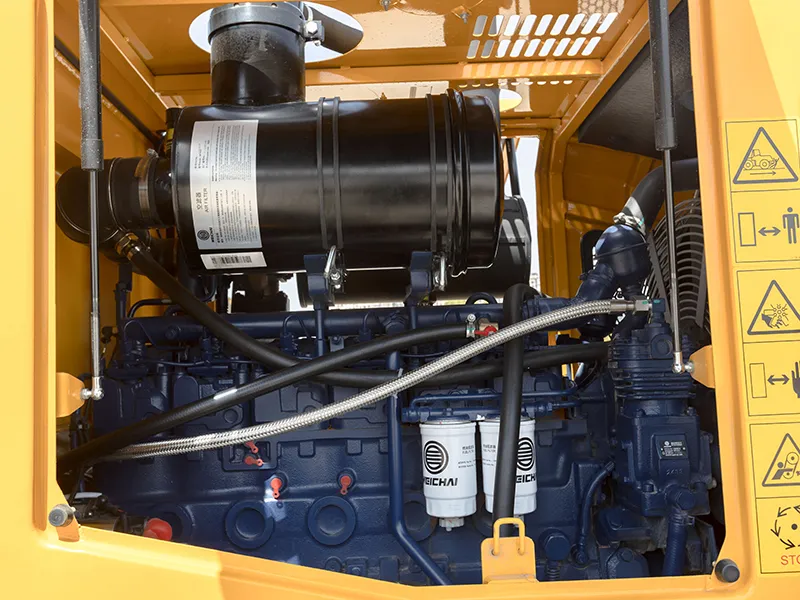

    Powered by the Weichai WP10G220 electronic control engine, it delivers 162 kW of rated power and up to 980 N·m of torque, making it a strong performer in heavy-duty applications.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) 8015mm
    • Width (to outside of wheels) 2800mm
    • Bucket width 2928mm
    • Height (to the top of the cab) 3450mm
    • Wheel base 3100mm
    • Min. ground clearance 450mm

    Performance

    • Rated load 5000kg
    • Operating weight 16200kg
    • Rated bucket capacity 3.1m³, (optional 2.2-4.5m³)
    • Max. dump clearance 3136mm
    • Dump reach 1121mm
    • Min. turning radius (wheel) 5970mm

    Diesel Engine

    • Model WeiChai WD10G220
    • Type Electronic fuel injection Direct injection
    • Emission level Ⅲ Ⅱ
    • Max. torque 980N.m 900N.m@1400r/min
    • Rated output 162kW
    • Displacement 9.726L
    • Rated speed 2000r/min
