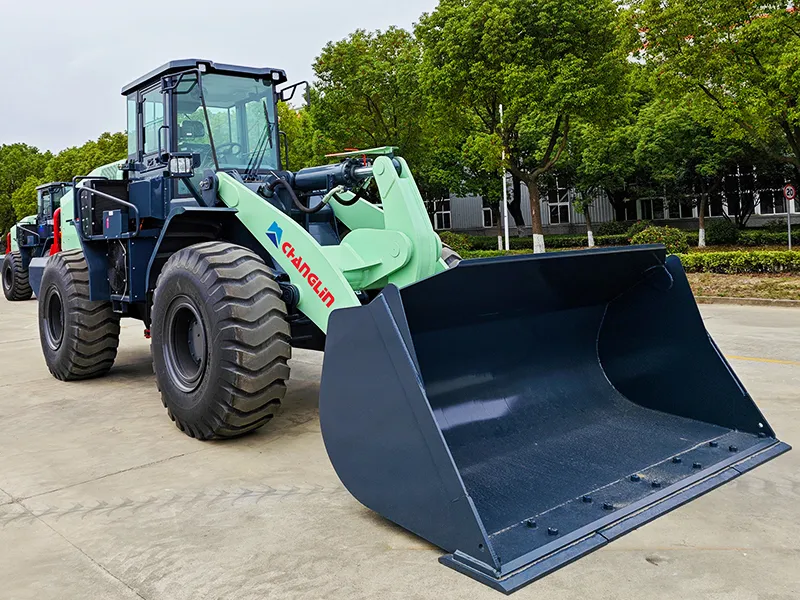

Length (with bucket on ground) 8710 mm
Bucket capacity 3.5-4.5m³
Height (to the top of the cab) 3537 mm
The dual-motor system combines a 1200 N·m traveling motor with a 350 N·m hydraulic motor, improving response time by 40% and leading the industry in heavy-load operation efficiency.
Four selectable operating curves allow the electronic control system to adjust torque in real-time, improving lifting efficiency by 30% (5.1 seconds for lifting and 1.3 seconds for dumping).

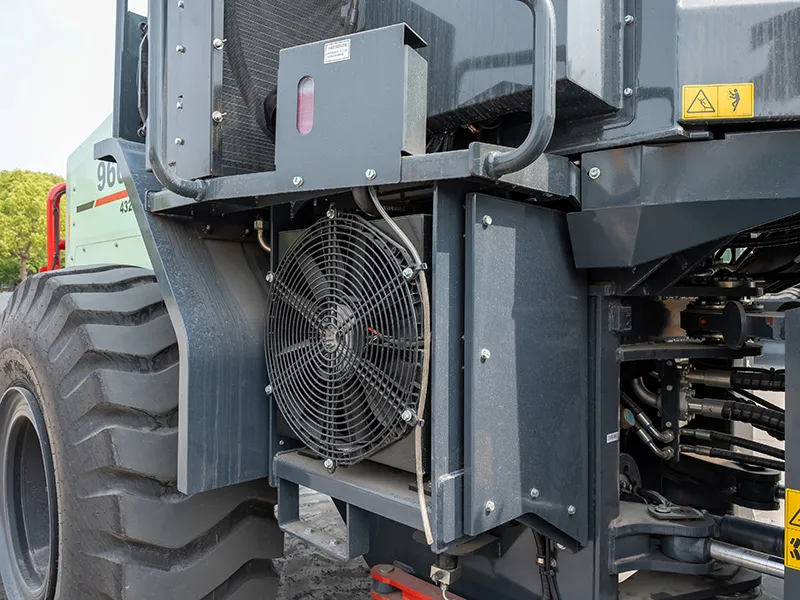

Equipped with an independent cooling module and electronically controlled fan with stepless speed adjustment, this system ensures oil temperature fluctuations stay within ±3°C, reducing energy consumption by 25% and extending hydraulic system life by 20%.

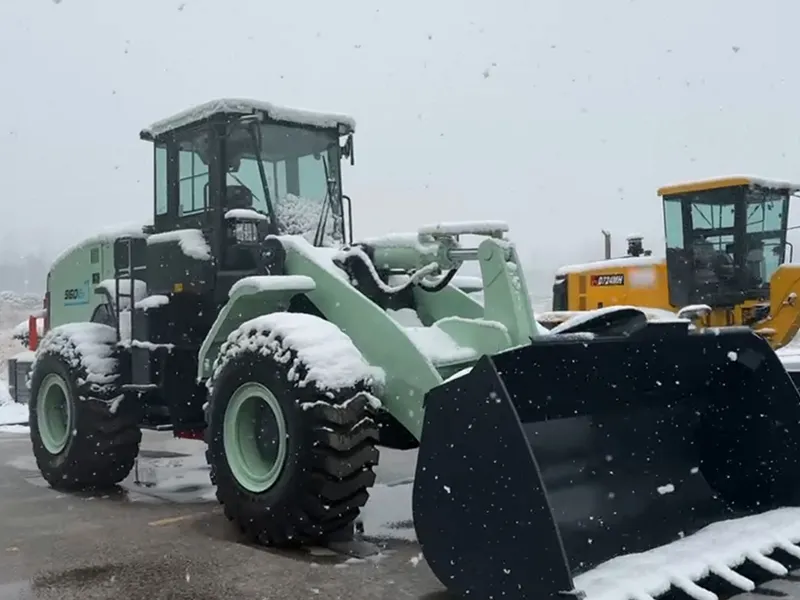

The intelligent thermal management system operates within a temperature range of -30°C to 50°C, increasing battery life by 35%. It also supports battery swapping, ensuring continuous operation without downtime.

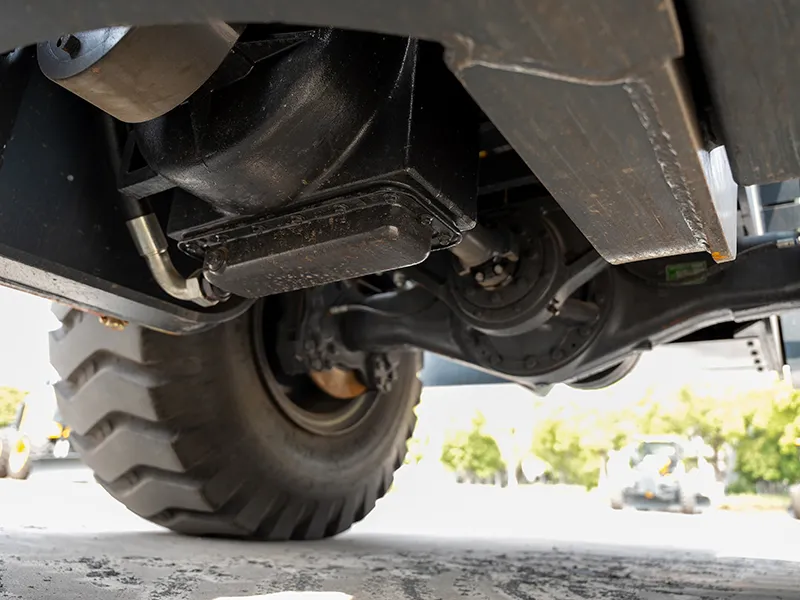

Featuring a patented enveloping motor connection structure, this loader offers over 90% vibration absorption, while the IP67-rated PDU integration reduces the failure rate of high-voltage circuits by 50%.

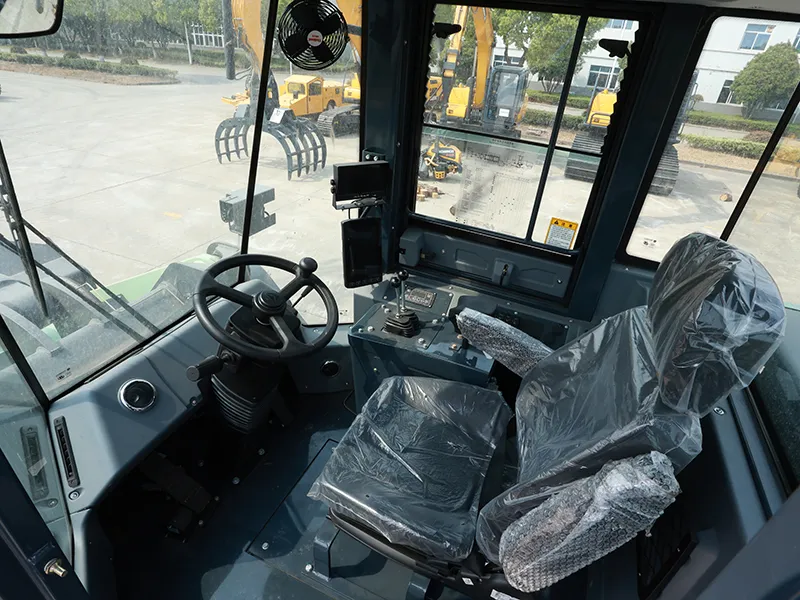

The fully sealed cabin, with noise levels kept below 72 dB, features an adjustable steering wheel and low-pressure sensing steering, reducing operational effort by 60% and significantly enhancing comfort.
- Rated load 6000kg
- Operating weight 19200kg (1±5%)
- Bucket capacity 3.5-4.5m³
- Max. dump clearance 3138-3663mm
- Lifting time 5.1s
- Descent time 3.6s
- Unloading time 1.3s
- Travel speed (F Ⅰ ) 0-13km/h
- Travel speed (F Ⅱ ) 0-39km/h
- Travel speed (R Ⅰ ) 0-13km/h
- Travel speed (R Ⅱ ) 0-39km/h
- Min. turning radius (over tire) 6371mm
- Gradeability 30°
- Max. traction force 171kN
- Max. lifting force 175kN
- Battery operating time (fully charged) 4-8h
- Length (with bucket on ground) 8710mm
- Width (to outside of wheels) 2821mm
- Height (to the top of the cab) 3537mm
- Bucket width 3048mm
- Wheel base 3420mm
- Track width 2226mm
- Min. ground clearance 450mm
Motor
- Torque Traveling motor 1200N.m, Service motor 350N.m
- Output Traveling motor 200kW, Service motor 140kW
- Speed 0-6000rpm
Transmission system
- Type Planetary electric shift
- Cooling method Oil-cooled pressure cycle
Tire
- Tire size 23.5-25
- Tire pressure 0.31±0.02MPa
Hydraulic system
- Type Twin pumps combined flow

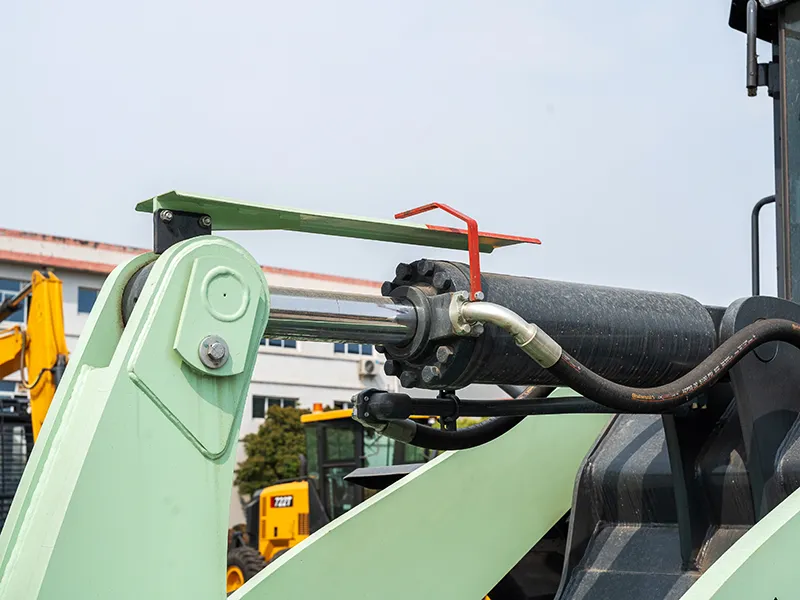

- Lifting cylinder (number-diameter×stroke) 2-Ø160×810mm
- Unloading cylinder (number-diameter×stroke) 1-Ø180×563mm
- Max. working pressure 18MPa
Battery
- Battery type LFP
- Battery options 350kWh-CATL
- Battery options 400kWh-Qiyuan Green Power
- Battery options 432kWh-Gotion High-Tech
- Battery options Battery replaceable
