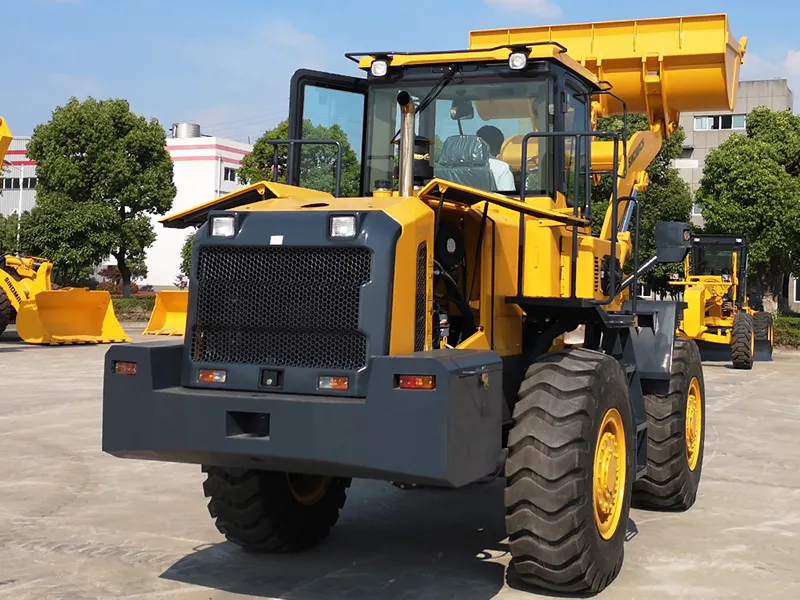

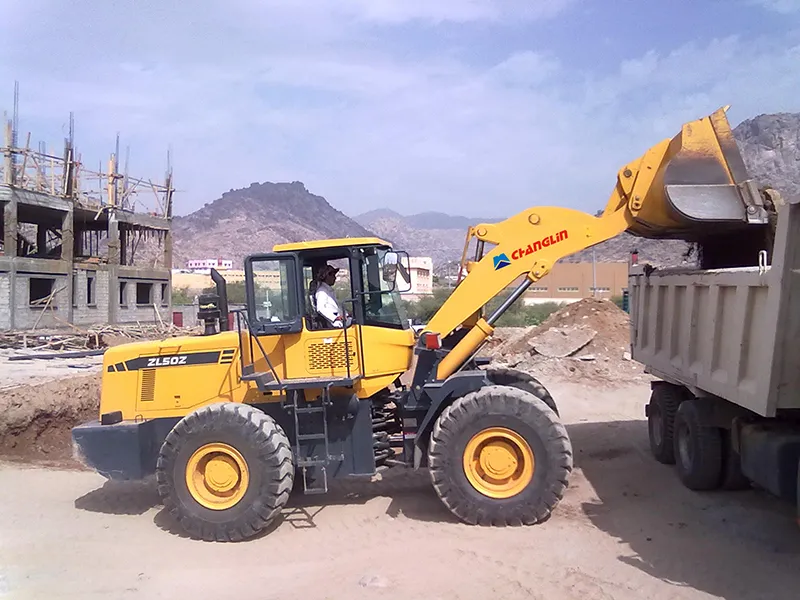

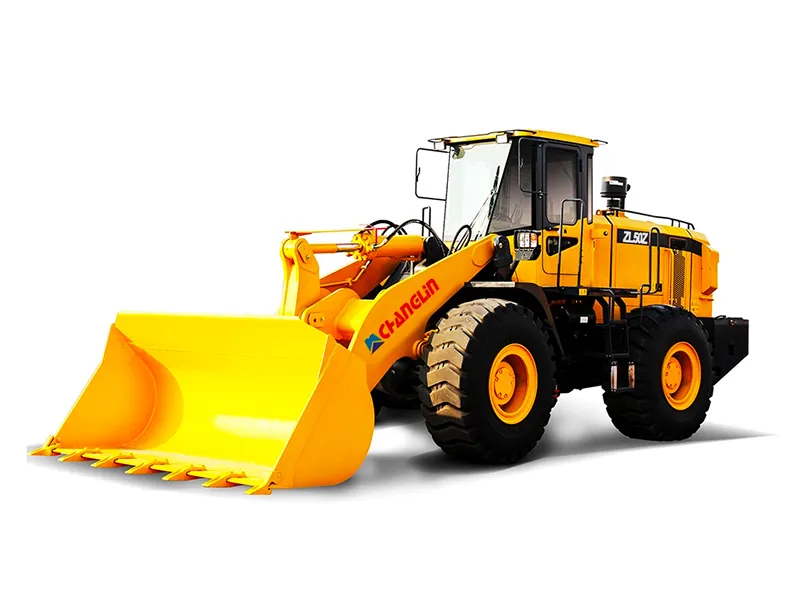

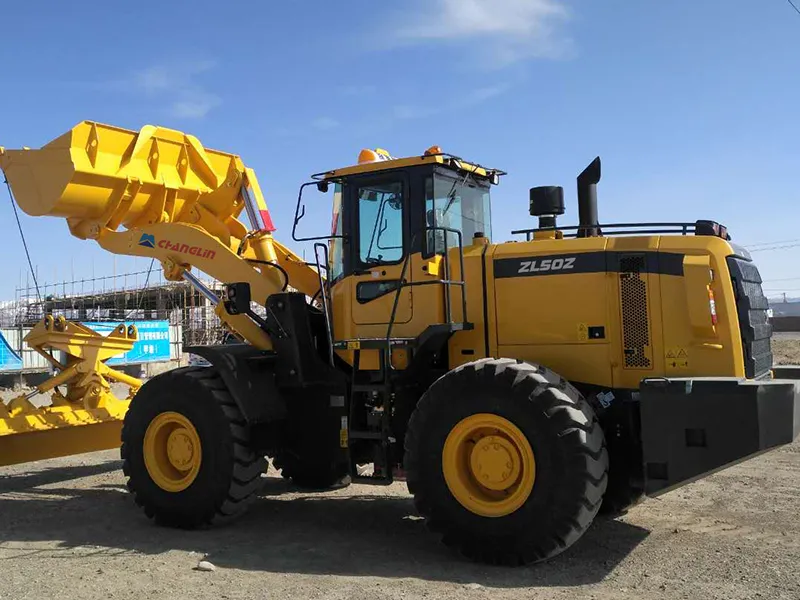

ZL50Z Wheel Loader

ZL50Z Wheel Loader
  • ZL50Z Wheel Loader
  • ZL50Z Wheel Loader
  • ZL50Z Wheel Loader
  • ZL50Z Wheel Loader
  • ZL50Z Wheel Loader

    • ZL50Z Wheel Loader
    • Length (with bucket on ground)Length (with bucket on ground) 8120 mm
    • Operating weightOperating weight 17300 kg
    • Rated bucket capacityRated bucket capacity 3.1 m³
    • Rated outputRated output 162 kW
    Request a Quote
    Product Brochure
    ZL50Z Wheel Loader
    ZL50Z
    ZL50Z Wheel Loader
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZL50Z Wheel Loader

    Equipped with a Cummins engine delivering 162 kW rated power and 940 N·m peak torque, this model handles continuous heavy-duty tasks with ease, even at low RPMs.

    ZL50Z Wheel Loader

    The ZF 4WG210 electro-hydraulic transmission offers 4 forward and 3 reverse speeds, with a forced downshift function that improves traction and safety on uneven terrain.

    ZL50Z Wheel Loader

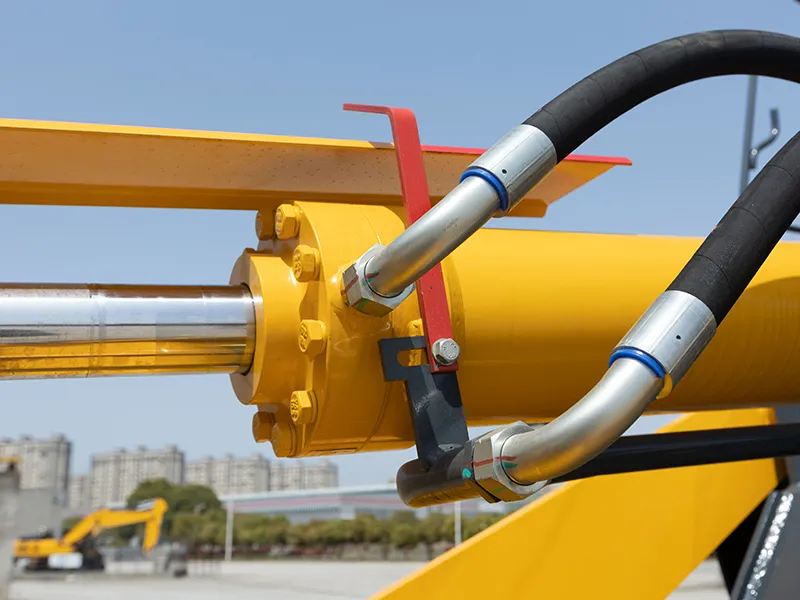

    The dual-pump hydraulic system, combined with split-flow cooling, maintains stable pressure at 18 MPa and keeps oil temperatures below 85 °C, increasing system stability during long shifts.

    ZL50Z Wheel Loader

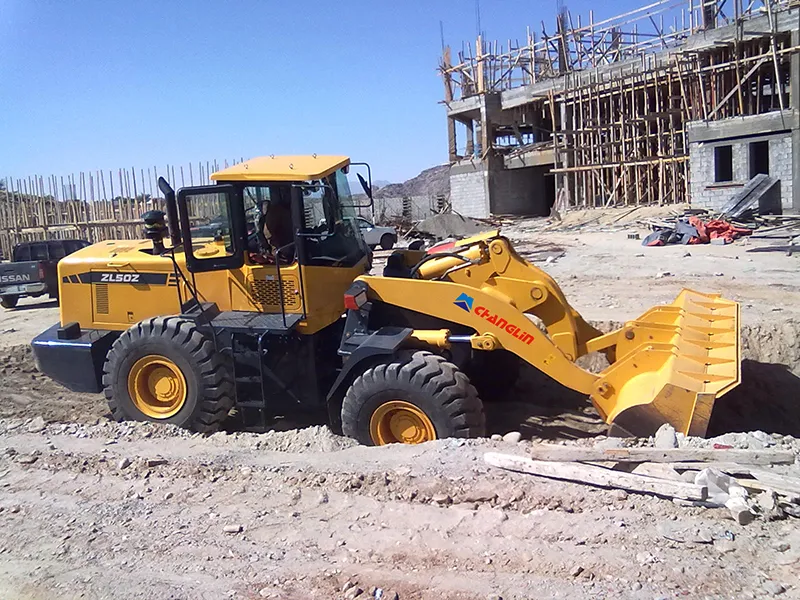

    With a 3300 mm wheelbase, optional dry or wet braking systems, 23.5-25 tires, and 450 mm of ground clearance, it is well-equipped for reliable performance on uneven or complex ground conditions.

    ZL50Z Wheel Loader

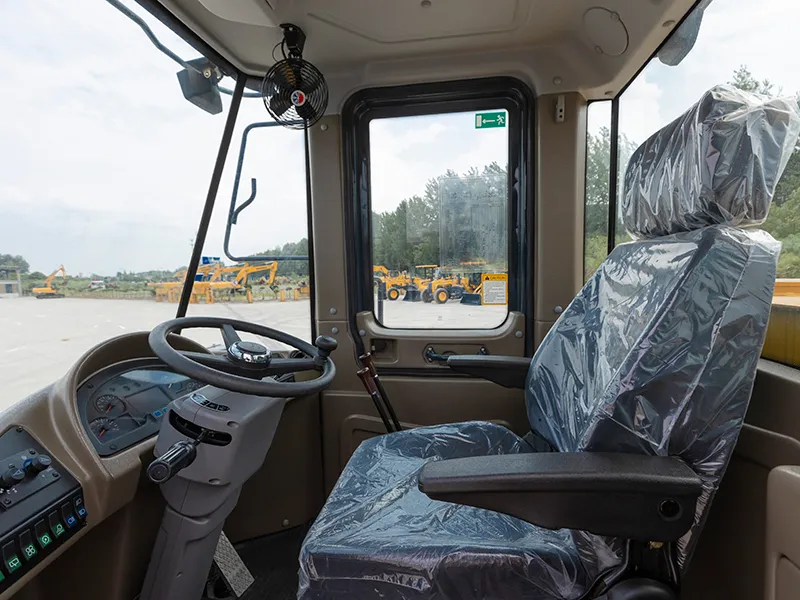

    The fully enclosed cab offers improved noise insulation and operator comfort, while maintenance is simplified thanks to the exterior grease fittings and centralized pressure test ports.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) 8120mm
    • Width (to outside of wheels) 2800mm
    • Bucket width 2928mm
    • Height (to the top of the cab) 3450mm
    • Wheel base 3300mm
    • Min. ground clearance 450mm

    Performance

    • Rated load 5000kg
    • Operating weight 17300kg
    • Rated bucket capacity 3.1m³, (optional 2.2-4.5m³)
    • Max. dump clearance 3136mm
    • Dump reach 1121mm
    • Min. turning radius (wheel) 6192mm

    Diesel Engine

    • Model Cummins 6LTAA
    • Type Direct injection
    • Rated output 162kW
    • Displacement 9.3L
    • Rated speed 2200rpm
    • Max. torque 940N.m@1400rpm
