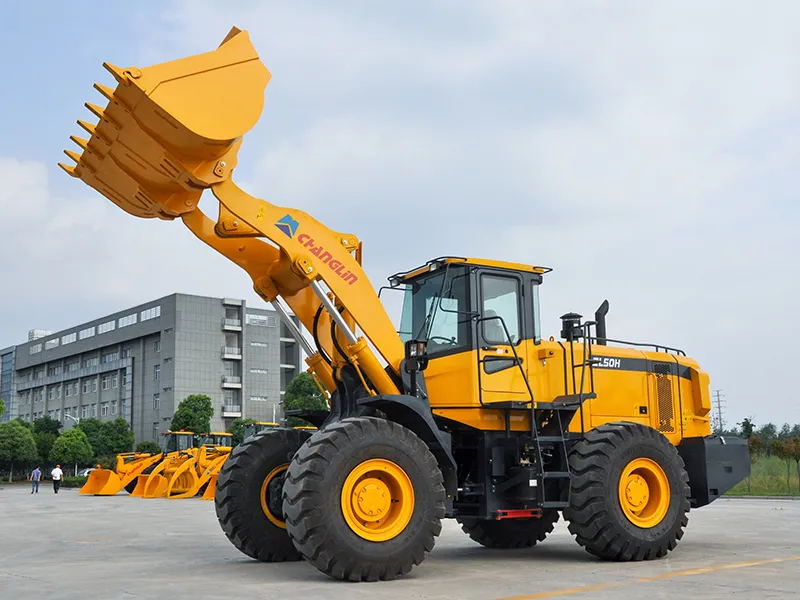

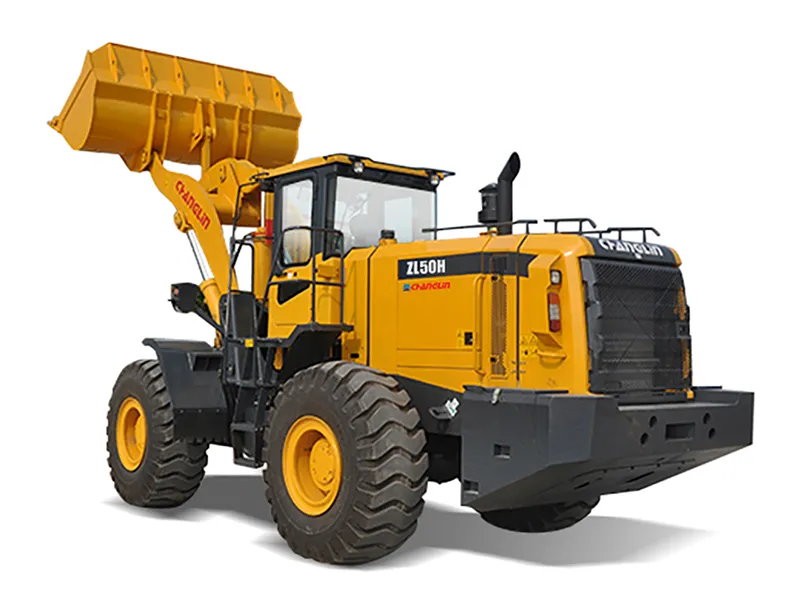

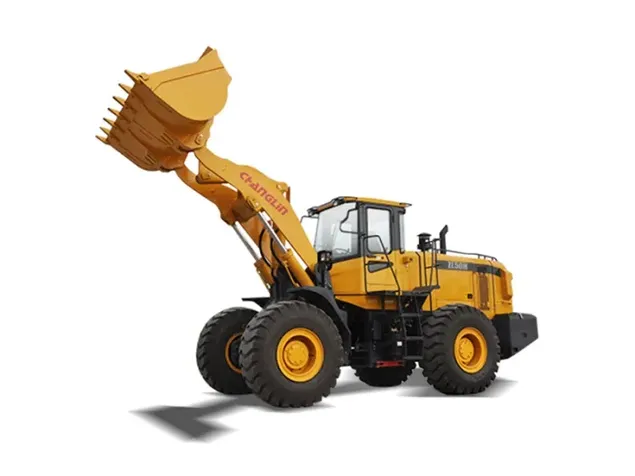

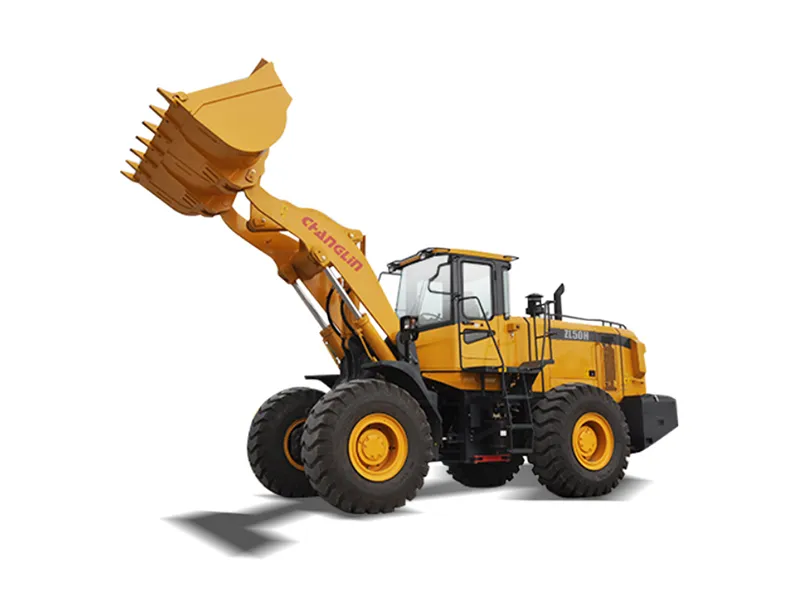

ZL50H Wheel Loader

ZL50H Wheel Loader
  • ZL50H Wheel Loader
  • ZL50H Wheel Loader
  • ZL50H Wheel Loader
  • ZL50H Wheel Loader
  • ZL50H Wheel Loader

    • ZL50H Wheel Loader

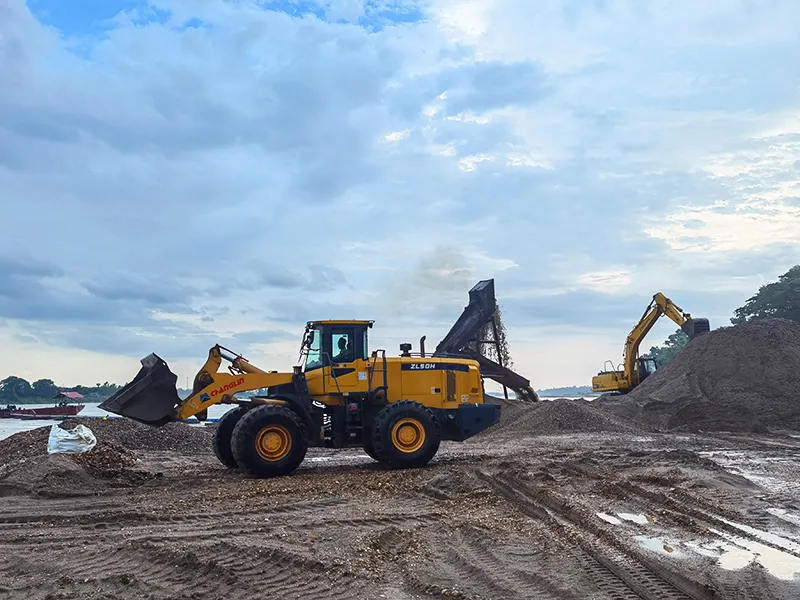

    Featuring a 3300 mm wheelbase, this wheel loader delivers the stability and performance expected from mid-to-high-end models in the industry. It’s engineered for demanding applications like mining and construction, equipped with a 162 kW direct injection engine from Cummins or Shangchai that delivers a peak torque of 940 N·m. The standard 3.1 m³ bucket can be upgraded to 4.5 m³, offering both efficiency and durability across a wide range of heavy-duty tasks.

    • Length (with bucket on ground)Length (with bucket on ground) 8390 mm
    • Operating weightOperating weight 17300 kg
    • Rated bucket capacityRated bucket capacity 3.1 m³
    Request a Quote
    Product Brochure
    ZL50H Wheel Loader
    ZL50H
    ZL50H Wheel Loader
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZL50H Wheel Loader

    Equipped with a 3-speed forward and 3-speed reverse power-shift transmission, providing 160 kN of traction force and quick response over complex terrain.

    ZL50H Wheel Loader

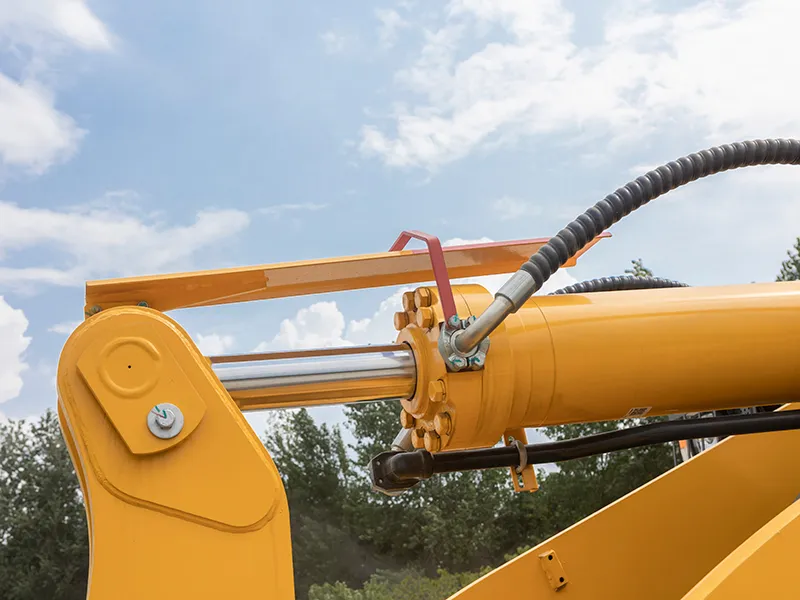

    Uses a dual-pump converging system with a split-flow cooling design to keep hydraulic oil temperature under 85 °C and stabilize pressure at 18 MPa, increasing continuous operation lifespan by 25%.

    ZL50H Wheel Loader

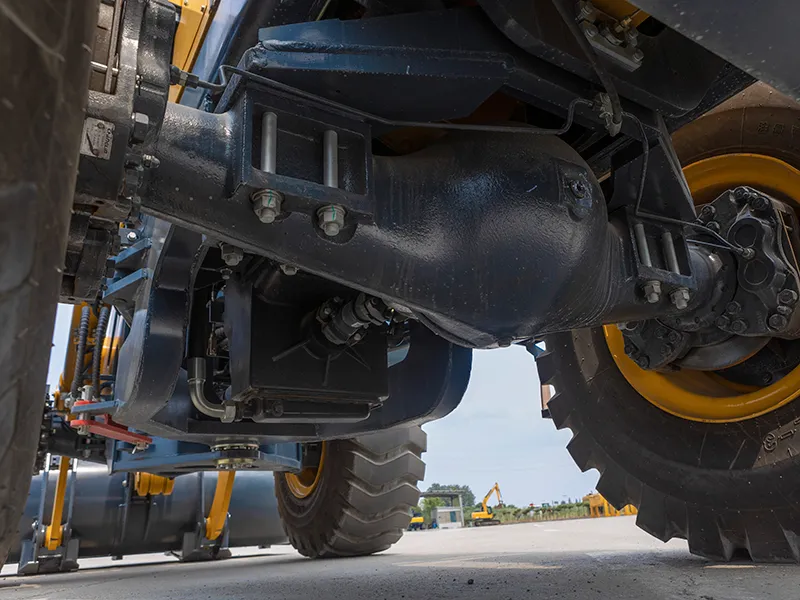

    Features a third-generation one-piece frame and conical roller bearing articulation, offering 450 mm ground clearance and outstanding torsional resistance for improved mobility.

    ZL50H Wheel Loader

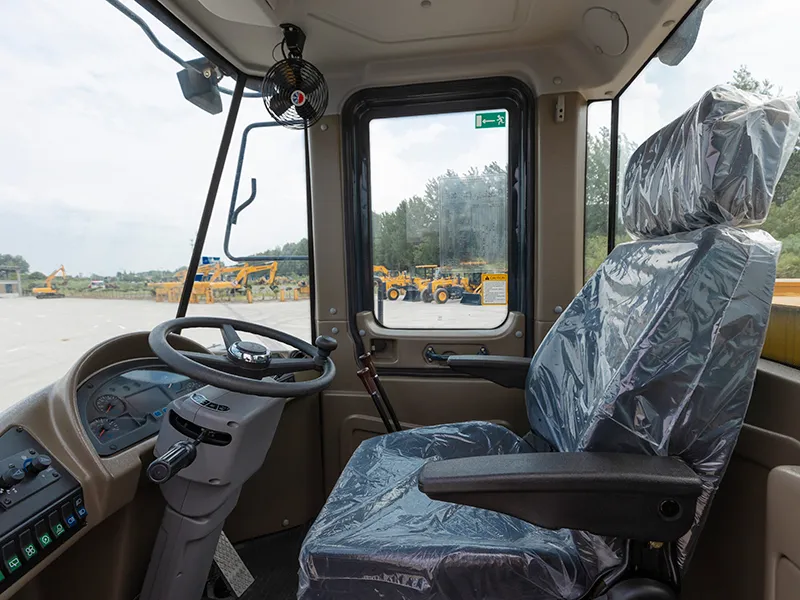

    The fully enclosed cab keeps noise levels below national standards. External grease fittings and centralized pressure ports make maintenance 40% more efficient.

    ZL50H Wheel Loader

    Fitted with dual caliper disc brakes handle both travel and parking functions with brake air pressure between 6 and 7.5 kgf/cm², ensuring reliable safety even under harsh working conditions.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) 8390mm
    • Width (to outside of wheels) 2800mm
    • Bucket width 2928mm
    • Height (to the top of the cab) 3450mm
    • Wheel base 3300mm
    • Min. ground clearance 450mm

    Performance

    • Rated load 5000kg
    • Operating weight 17300kg
    • Rated bucket capacity 3.1m³, (optional 2.2-4.5m³)
    • Max. dump clearance 3136mm
    • Dump reach 1121mm
    • Min. turning radius (wheel) 6192mm

    Diesel Engine

    • Model Cummins
    • Type Direct injection
    • Rated output 162kW
    • Displacement 9.3L
    • Rated speed 2200r/min
    • Max. torque 940N.m@1400rpm
    Partner with Us, Powered by Trust
    Brand Strength
    Brand Strength

    SINOMACH has developed a global footprint, with marketing and service systems covering over 100 countries and regions.

    Strong Global Network
    Strong Global Network

    Subsidiaries in West Africa, India, and South Africa, a joint venture in Malaysia, with offices in Mexico, Argentina, and the Philippines.

    Wide Overseas Reach
    Wide Overseas Reach

    Working with 70+ distributors to provide local sales and after-sales support.

    Extensive International Projects
    Extensive International Projects

    Supplied large-scale turnkey equipment packages including excavators, loaders, bulldozers, rollers, and graders for major infrastructure projects in Africa, mining operations in South America and the CIS, highways in West Africa, and engineering projects across Central Asia.

    Reliable Local Support
    Reliable Local Support

    Timely parts supply and professional after-sales service through our distributor network, giving customers complete confidence.

    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch
      1. ZL50Z Wheel Loader
      2. ZL50Z Wheel Loader
        Length (with bucket on ground) 8120 mm
        Operating weight 17300 kg
        Rated bucket capacity 3.1m³
      1. ZL50EV Wheel Loader
      2. ZL50EV Wheel Loader
        Bucket capacity 2.7-4.5m³
        Length (with bucket on ground) 8710 mm
        Max. lifting force 165 kN
      1. ZL60H Wheel Loader
      2. ZL60H Wheel Loader
        Length (with bucket on ground) 8714 mm
        Operating weight 19500 kg
        Rated bucket capacity 3.7m³
      1. ZL60EV Wheel Loader
      2. ZL60EV Wheel Loader
        Length (with bucket on ground) 8710 mm
        Bucket capacity 3.5-4.5m³
        Height (to the top of the cab) 3537 mm
      1. ZL80H Wheel Loader
      2. ZL80H Wheel Loader
        Length (with bucket on ground) 8696 mm
        Operating weight 23500 kg
        Rated bucket capacity 4.2m³
      1. ZL30H Wheel Loader
      2. ZL30H Wheel Loader
        Length (with bucket on ground) 6983 mm
        Operating weight 10200 kg
        Rated bucket capacity 1.7m³

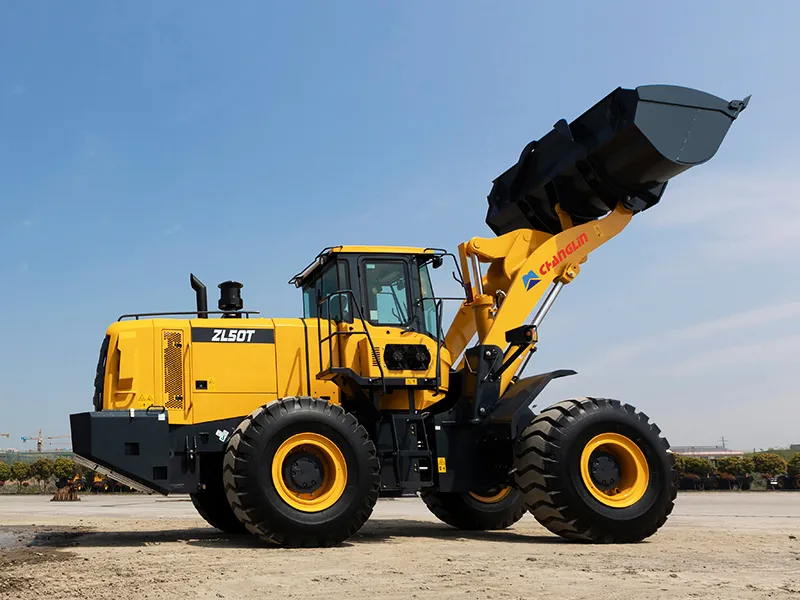

      1. ZL50T Wheel Loader
      2. ZL50T Wheel Loader
        Length (with bucket on ground) 8015 mm
        Operating weight 16200 kg
        Rated bucket capacity 3.1m³
      1. ZL50H Wheel Loader
      2. ZL50H Wheel Loader
        Length (with bucket on ground) 8390 mm
        Operating weight 17300 kg
        Rated bucket capacity 3.1m³

    Start by assessing your project’s size and material type to select the appropriate bucket capacity and operating weight. For rough terrains like mining sites, a crawler loader is often better suited, while wheel loaders work well on flat surfaces. It's also wise to choose a reputable brand with reliable after-sales support.

    Hydraulic oil should typically be changed every 500 to 1000 hours, depending on working conditions. In harsher environments with high dust or moisture, it's best to shorten the interval to ensure optimal performance.

    Front-end loaders used in construction are known for their high efficiency, versatility, maneuverability, user-friendly operation, and safety in demanding environments.

    Electric wheel loaders have made significant progress in terms of performance and efficiency. One of their most noticeable advantages lies in repetitive loading tasks, where the instant torque delivery of electric motors outperforms the delayed power response of traditional diesel engines. Charging costs are also significantly lower, typically reducing hourly energy expenses by 70 to 80 percent compared to diesel fuel. Their simplified powertrain design eliminates many of the moving parts and wear-prone components found in internal combustion systems, which means less maintenance and more uptime. On top of that, electric loaders are highly adaptable and easier to upgrade over time, extending their long-term value. As battery technology continues to evolve, the performance gap between electric and diesel will only continue to narrow, making electric loaders a smart investment for forward-thinking businesses.

    Yes, electric wheel loaders are highly suitable for a variety of construction activities, including material handling, site preparation, and loading or unloading tasks. In quarrying and mining projects, they deliver efficient, low-emission performance that supports more sustainable resource extraction, especially in environments that demand both strength and environmental responsibility.
