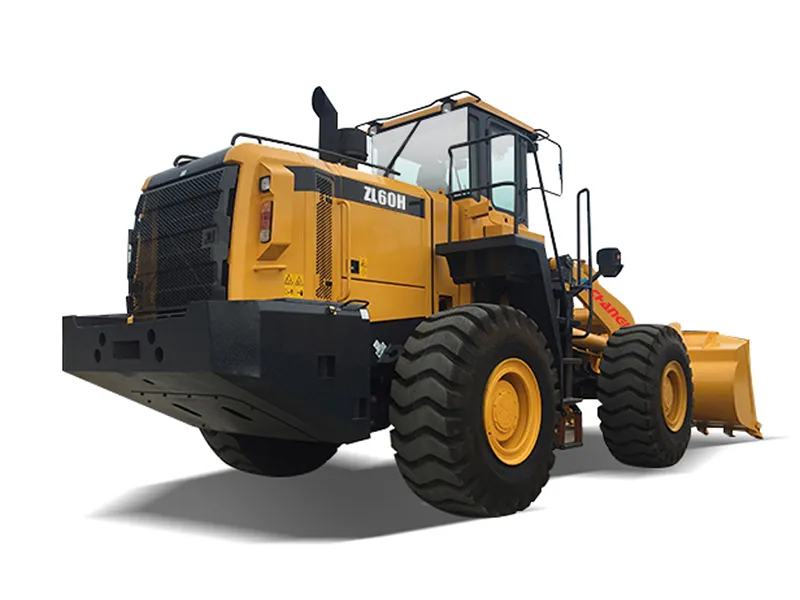

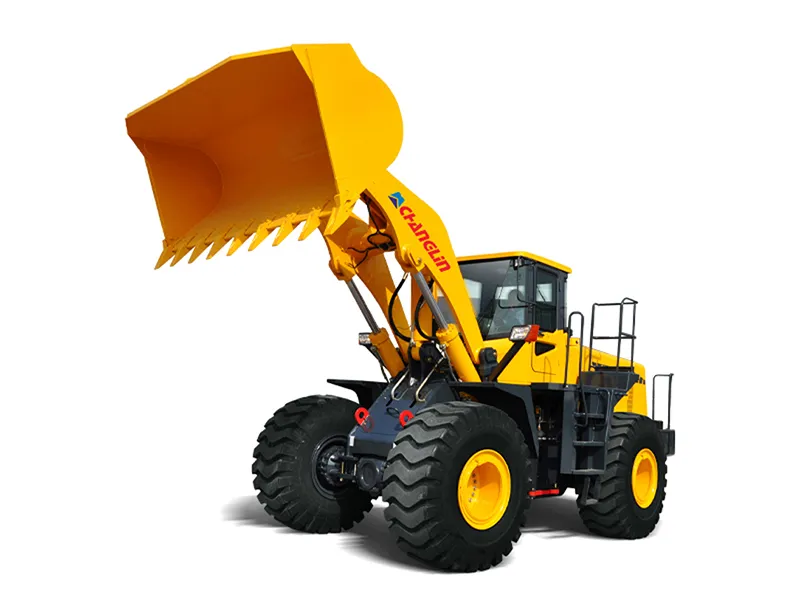

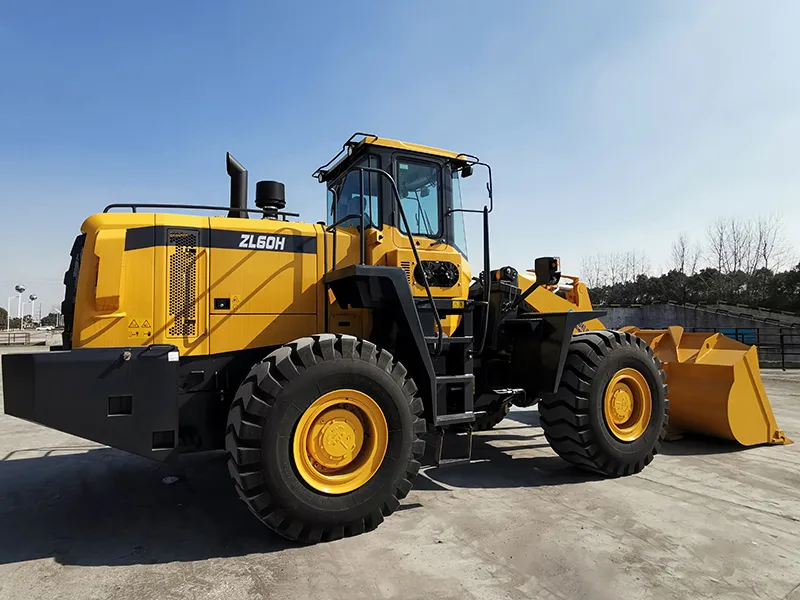

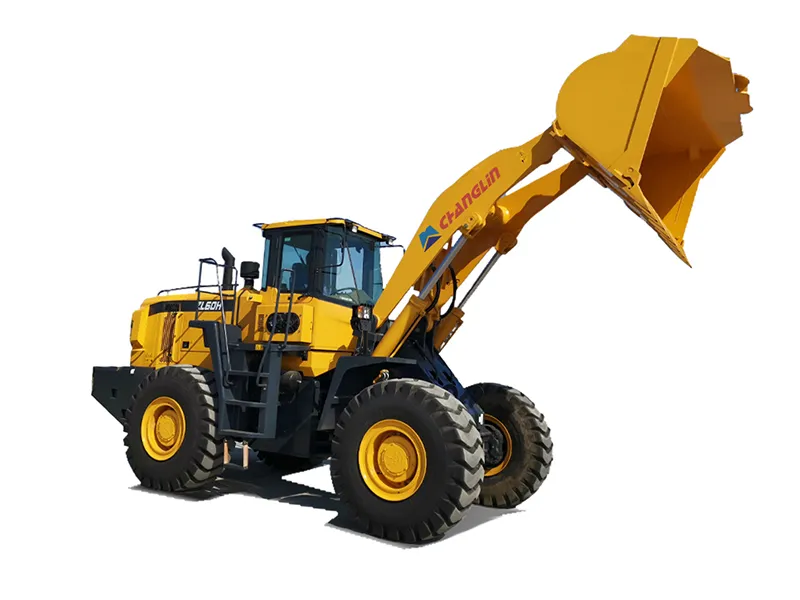

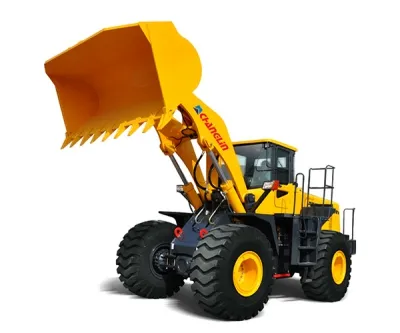

ZL60H Wheel Loader

ZL60H Wheel Loader
  • ZL60H Wheel Loader
  • ZL60H Wheel Loader
  • ZL60H Wheel Loader
  • ZL60H Wheel Loader
  • ZL60H Wheel Loader

    • ZL60H Wheel Loader
    • Length (with bucket on ground)Length (with bucket on ground) 8714 mm
    • Operating weightOperating weight 19500 kg
    • Rated bucket capacityRated bucket capacity 3.7 m³
    • Rated outputRated output 175 kW
    Request a Quote
    Product Brochure

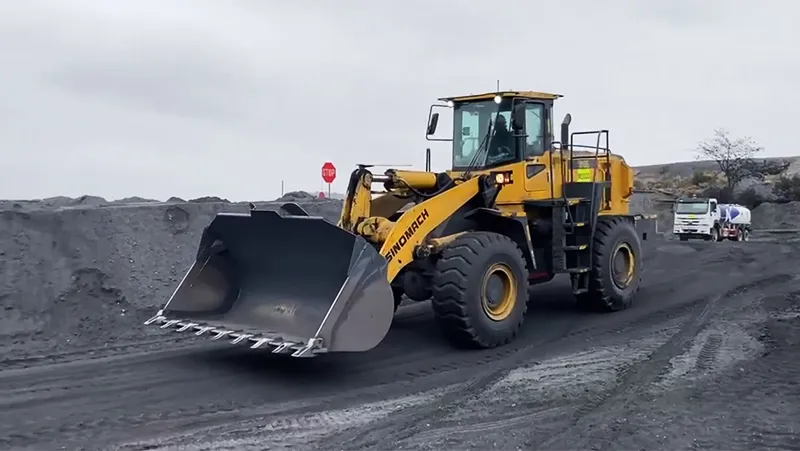

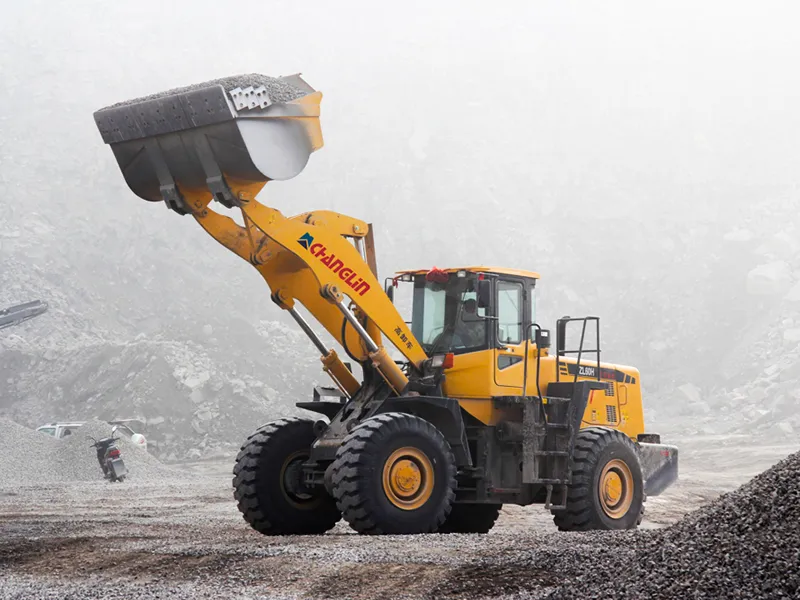

    ZL60H Wheel Loader ZL60H Wheel Loader in Operation

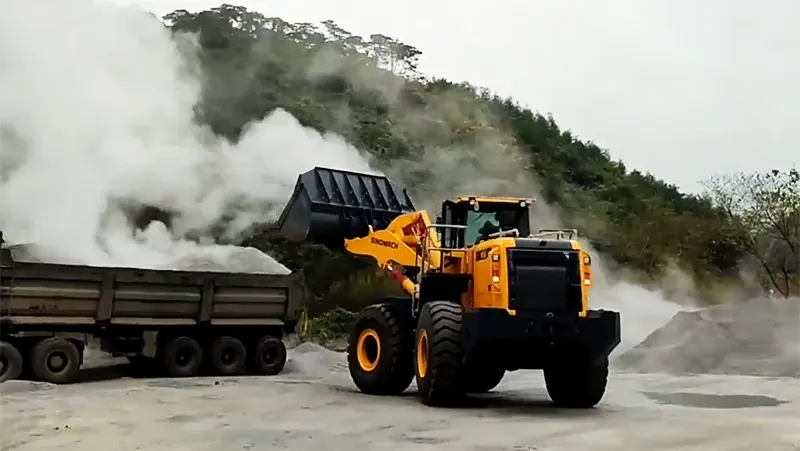

    ZL60H Wheel Loader ZL60H Wheel Loader for Truck Loading
    ZL60H
    • Features
    • Specifications
    • Service
    • Request a Quote
    Main Features
    ZL60H Wheel Loader

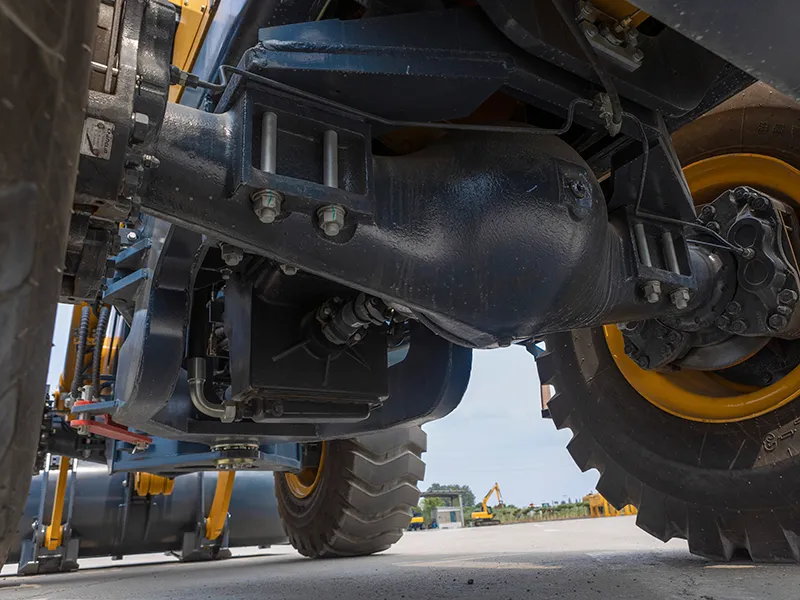

    The articulated frame with tapered roller bearings increases the contact surface, ensuring reliable joint performance even under tough working conditions.

    ZL60H Wheel Loader

    Equipped with the ZF 4BP210 dual power transmission system, this wheel loader boasts an electro-hydraulic fixed-shaft power-shift gearbox that allows for smooth and safe operation, with the added benefit of forced downshifting for better control and efficiency.

    ZL60H Wheel Loader

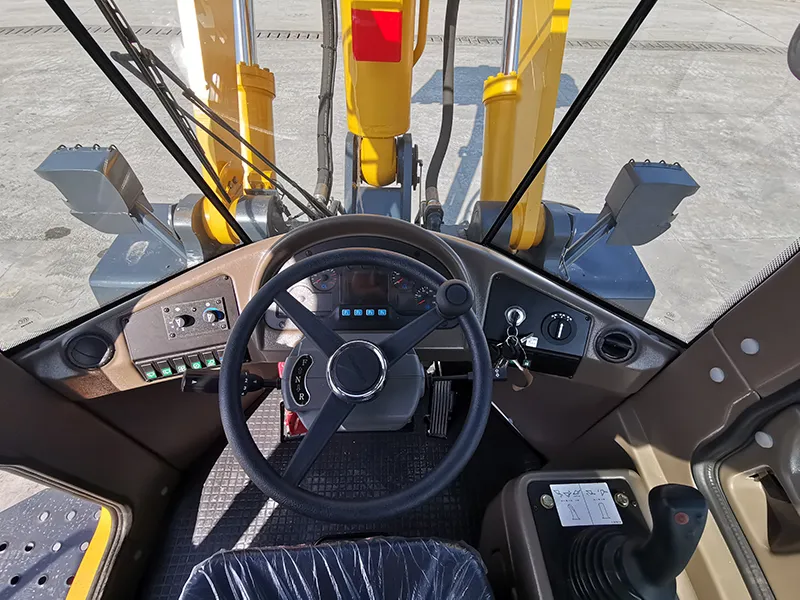

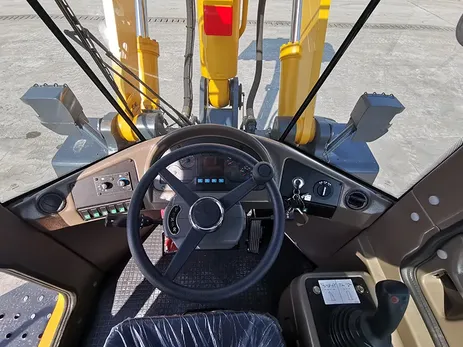

    The loader uses a small displacement steering gear and a low-pressure load-sensing hydraulic flow amplifier valve. This combination allows for incredibly easy steering, greatly reducing operator fatigue. The adjustable steering wheel further enhances comfort and control.

    ZL60H Wheel Loader

    This model of wheel loaders is designed for easy maintenance, with centralized relays and fuse boxes, external grease fittings, and pressure test ports located conveniently at the front of the auxiliary box.

    Technical Specifications

    Overall Dimensions

    • Length (with bucket on ground) 8714mm
    • Width (to outside of wheels) 2965mm
    • Bucket width 3048mm
    • Height (to the top of the cab) 3550mm
    • Wheel base 3300mm
    • Min. ground clearance 498mm

    Performance

    • Rated load 6000kg
    • Operating weight 19500kg
    • Rated bucket capacity 3.7m³, (optional 2.6-5.0 m³)
    • Max. dump clearance 3393mm
    • Dump reach 1365mm
    • Min. turning radius (wheel) 6350mm

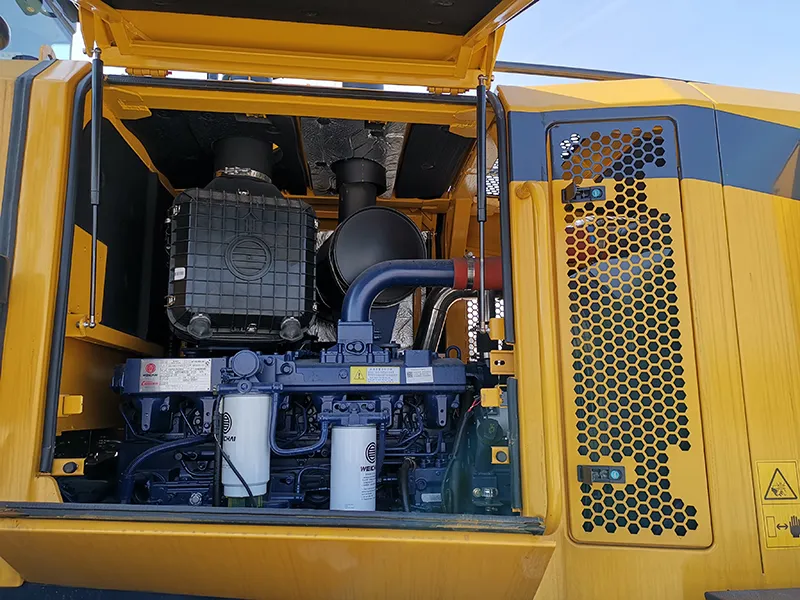

    Diesel Engine

    • Model ShangChai
    • Type Direct injection
    • Rated output 175kW
    • Displacement 10.5L
    • Rated speed 2200r/min
    • Max. torque 912N.m@1400r/min
    After-Sales Support

    We understand that dependable service matters just as much as quality equipment. That’s why we offer a range of flexible support options tailored to different needs:

    After-Sales Support
    1

    Around-the-clock remote assistance, along with on-site visits, when necessary, to ensure fast and effective issue resolution.

    After-Sales Support
    2

    A network of central warehouses overseas helps guarantee a steady supply of spare parts, with multiple service channels available to meet various post-sales requests.

    After-Sales Support
    3

    Skilled service engineers based abroad are available to provide hands-on training, supported by complete technical and instructional resources prepared by our headquarters.

    Electric wheel loaders can generally replace traditional diesel models for most tasks. However, their use is still limited by the availability of fixed charging stations, making them less ideal for frequent relocations or areas without convenient charging access.

    Absolutely. These loaders are versatile machines capable of handling a wide range of farm materials like hay, silage, manure, gravel, and soil. With the right attachments, they can also perform digging, leveling, and snow removal tasks.

    Electric wheel loaders combine advanced battery technology, regenerative braking, and smart connectivity to deliver reliable and efficient performance. The use of high-capacity lithium-ion batteries ensures extended runtime while reducing the need for frequent charging, making them well-suited for demanding tasks. Most models are also equipped with regenerative braking systems that recover energy during deceleration, helping to maximize overall efficiency. In addition, integrated digital monitoring tools allow operators to track performance metrics, energy usage, and maintenance alerts in real time, supporting smoother operation and better decision-making in daily work.

    Absolutely. Their zero-emission operation makes them ideal for enclosed or poorly ventilated areas where air quality matters, such as warehouses, factories, recycling facilities, and indoor construction sites. The quiet performance also reduces noise pollution, making them more suitable for sensitive environments.

    Yes, electric wheel loaders are versatile enough to handle a wide range of specialized tasks. In landscaping, they offer precise control for planting, shaping terrain, or handling materials without the noise or emissions of traditional engines. During winter, they’re effective for clearing sidewalks, parking areas, and driveways, and their quiet operation is especially beneficial in residential zones. They’re also a great option for cleaning up debris after storms or during renovations, offering a cleaner and quieter alternative to conventional machines.
    Interested in our construction equipment?

    From excavators and bulldozers to graders and compactors, we’re here to answer your questions and help you choose the right machines. Send us a message anytime.

    Contact: Mr. Cheng
    Email: sales15@changlin.com.cn
    Get in Touch

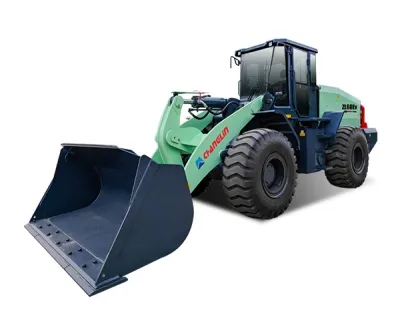

      1. ZL60EV Wheel Loader
      2. ZL60EV Wheel Loader
        Length (with bucket on ground) 8710 mm
        Bucket capacity 3.5-4.5m³
        Height (to the top of the cab) 3537 mm
      1. ZL80H Wheel Loader
      2. ZL80H Wheel Loader
        Length (with bucket on ground) 8696 mm
        Operating weight 23500 kg
        Rated bucket capacity 4.2m³

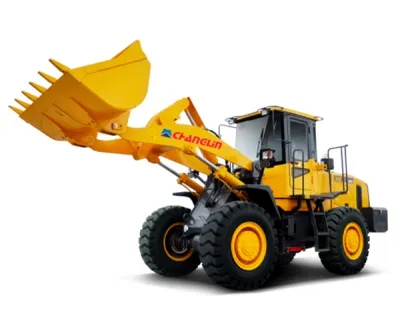

      1. ZL30H Wheel Loader
      2. ZL30H Wheel Loader
        Length (with bucket on ground) 6983 mm
        Operating weight 10200 kg
        Rated bucket capacity 1.7m³
      1. ZL50T Wheel Loader
      2. ZL50T Wheel Loader
        Length (with bucket on ground) 8015 mm
        Operating weight 16200 kg
        Rated bucket capacity 3.1m³
      1. ZL50H Wheel Loader
      2. ZL50H Wheel Loader
        Length (with bucket on ground) 8390 mm
        Operating weight 17300 kg
        Rated bucket capacity 3.1m³
      1. ZL50Z Wheel Loader
      2. ZL50Z Wheel Loader
        Length (with bucket on ground) 8120 mm
        Operating weight 17300 kg
        Rated bucket capacity 3.1m³

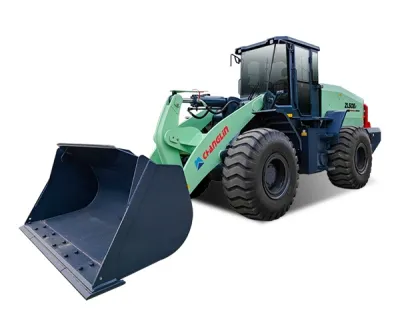

      1. ZL50EV Wheel Loader
